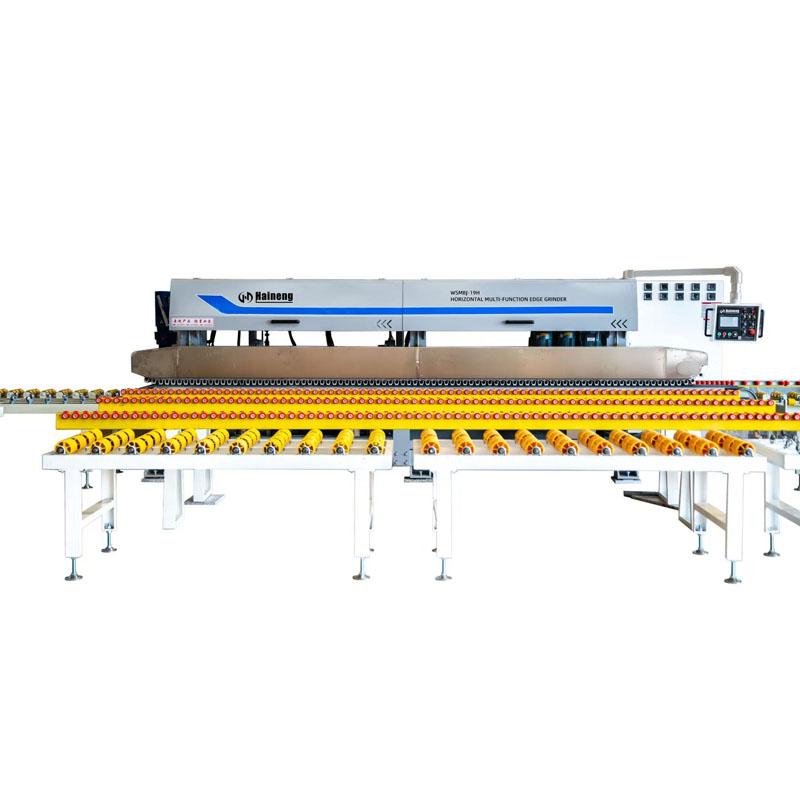

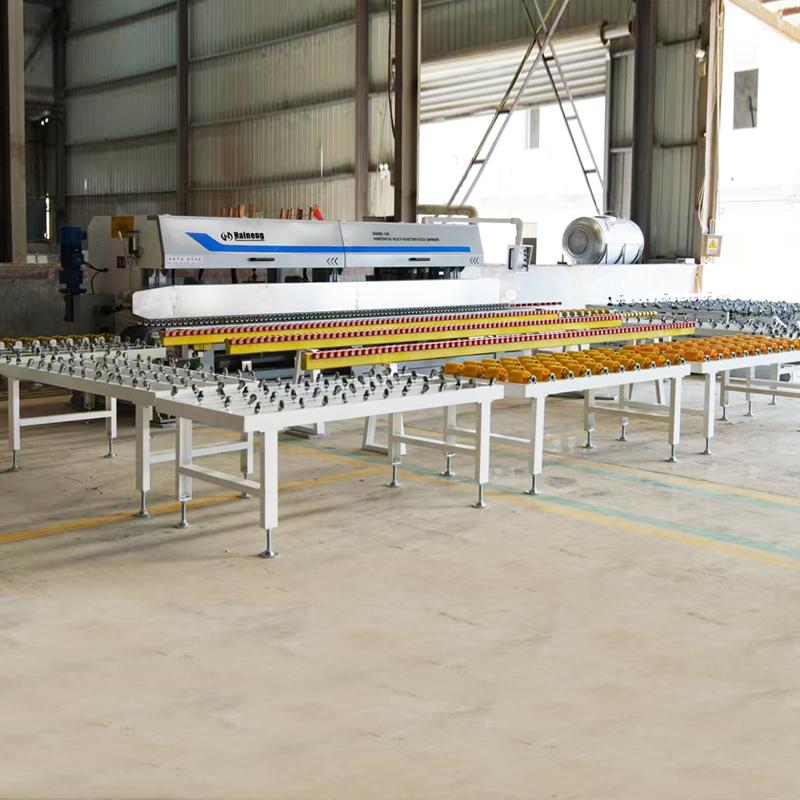

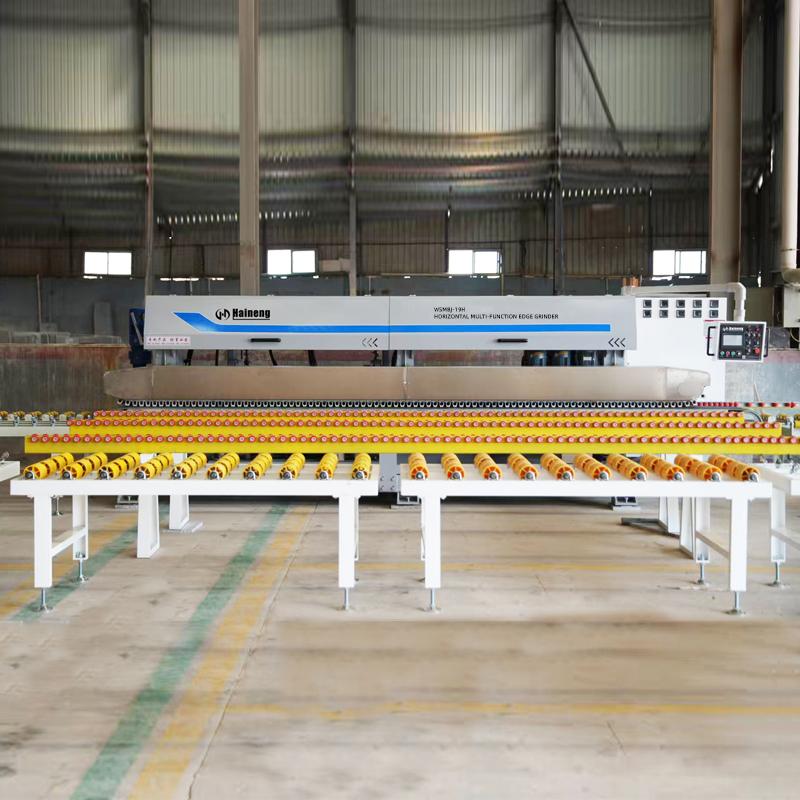

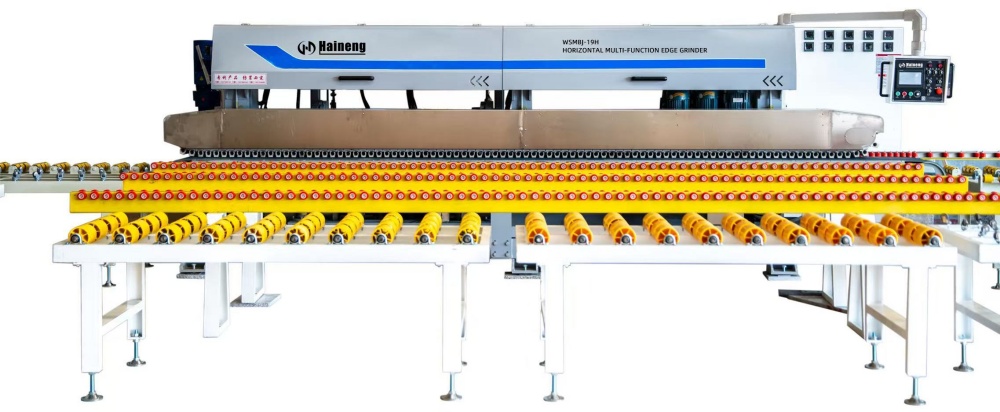

19 Head Stone Bullnose Edge Grinding Machine

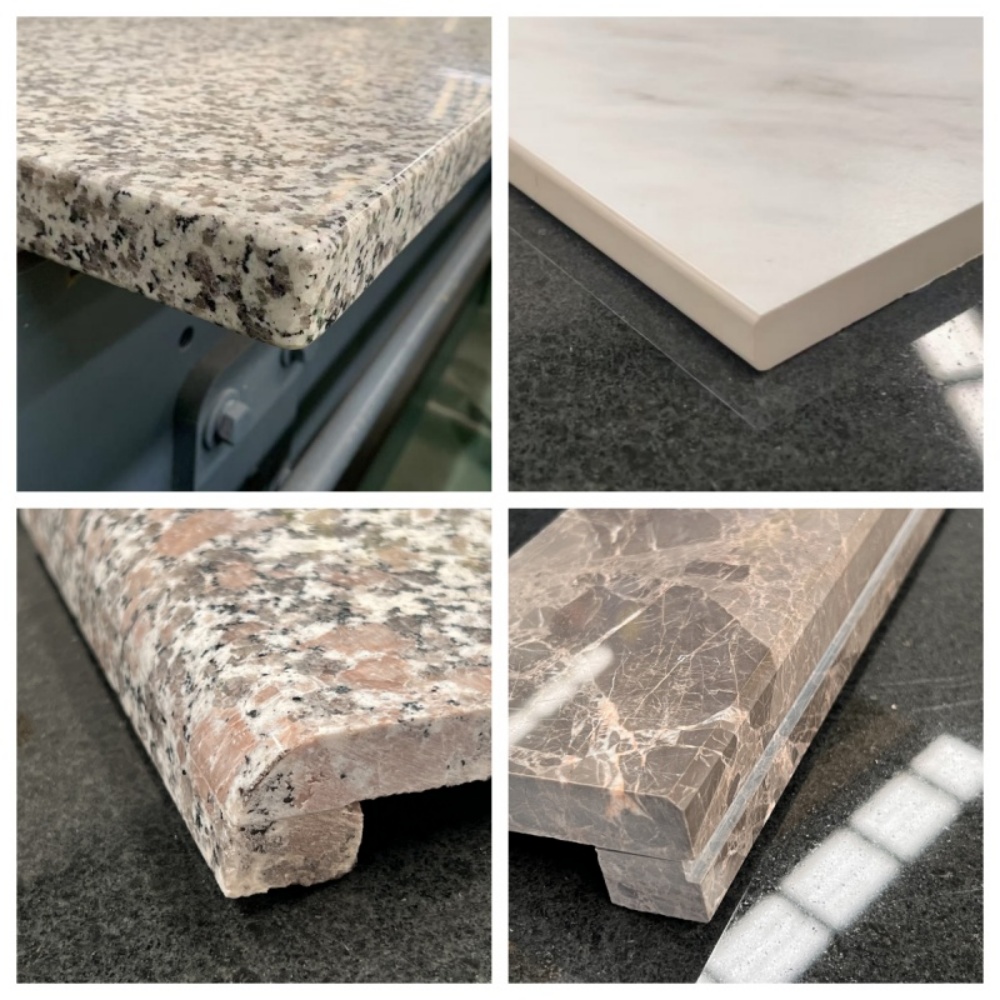

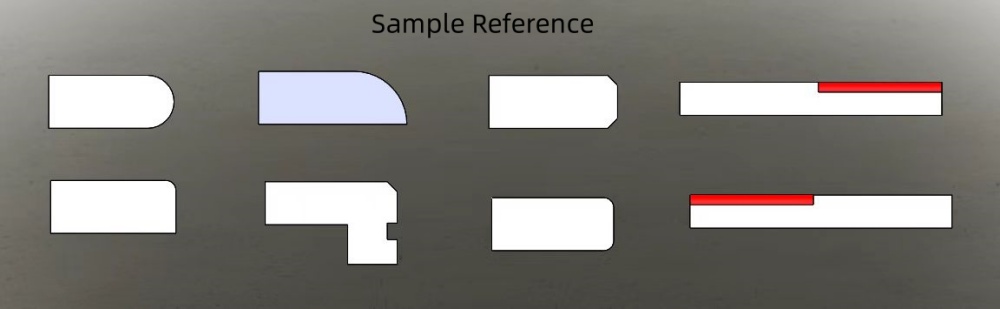

This multi-functional stone edge grinding machine is an automated stone edge processing machine.Widely used in the processing of edge profiles for worktops, stair treads and similar applications.

Brand:
HAINENG
Item NO.:
WSMBJ-19
Payment:
T/T
Product Origin:
China
Shipping Port:
Xiamen Port

Bridge ( Double Beam) CNC Profiling Cutting Machine

The CNC Profiling Machine adopts double beam structure of gantry type. Full servo control, high precision linear track and oil-immersed and dust-proof structure, to ensure equipment accuracy and service life.

Automatic Special Shapes Profiling Cutting Machine

The machine automatically tracks model of curve(straight) line through the fiber optic probe,automatically profiles through diamond circular saws to cut stone with curve(straight) line and craft products,uses inverter to control up-down rising and left-right feeding, adjusts the speed according to the stone material. If choosing rotating worktable, the processing of arc-shaped lines can be done. This machine adopts PLC system, high degree of automation, high precision cutting; using double-blades designing, with high cutting efficiency, high stability, easy-operation to suit for lines, arc-shaped lines, Roman column,etc. Note: Could choose CNC system, replacing the trouble of making a model, cutting effect more automatically and accurately.

Portal Multifunctional Edge Grinder

It is suitable for processing artificial stone, marble, granite and other grinding lines.

Diamond Bead Wire Saw Marble Granite Cutting Machine

CNC diamond wire saw machine adopts CNC control system, man-machine integration operation interface, supplemented by super high precision servo motor drive, lifting is controlled by four independent guide rail, flywheel around walking up and down the track, stable equilibrium.

CNC Stone Profiling Line Cutting Polishing Machine

Intelligent operating system, easy to operate.

Stone Baluster Profiling Machine

This machine adopts microcomputer (numerical control) control, one or three frequency converters for speed regulation, bridge structure, synchronous lifting and left and right walking, convenient operation, practicality and high efficiency. It is specially used for processing railings, columns, balusters, column caps, blocking stones and other products.

Stone Slab Stylobate Profiling Cutting Machine

This stone stylobate cutting machine is designed based on the structural principle of a vertical lathe. It is mainly used to process various stone column caps, column bases, balls, etc. It adopts microcomputer automatic copying, lifting and lowering to adjust the cutting characteristics, which makes up for the high consumption of manual processing. , The defect of poor accuracy, advanced technology, reduce the processing cost.

Automatic Second Change Grinding Head Line Stone Profiling Cutting Machine

loading and unloading, on the wheel, really labor-saving

Conveying belt	2 sets	Minimum machining width	80mm
Qty of profiled head	3 pcs	Maximum machining thickness	80mm
Qty of straight head	9 pcs	Process speed	0.8-2.5m/min
Qty of bevel head	8 pcs	Total power	34kw
Profiling wheel diameter	Φ150mm	Gross weight	6.5t
Straight Edge Grinding Wheel Diameter	Φ125mm	Dimension	622m
Diameter of bevelled grinding wheel	Φ100mm	Voltage （adjustable）	380V/50Hz
