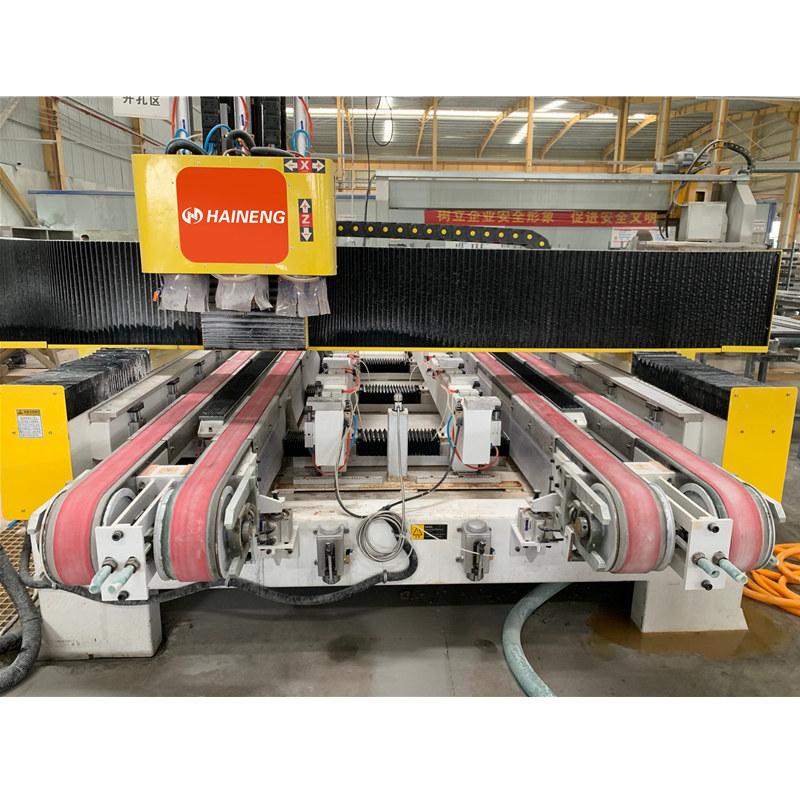

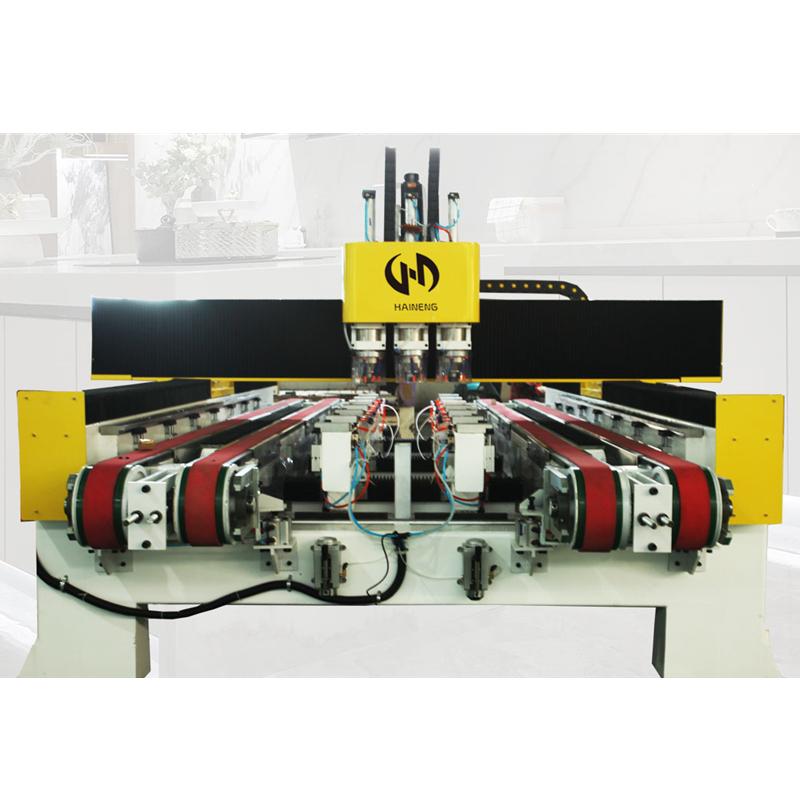

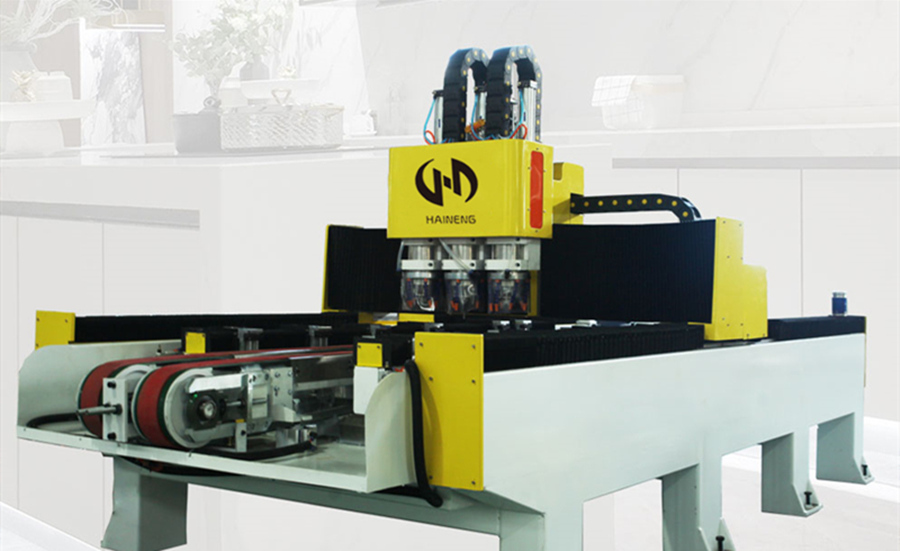

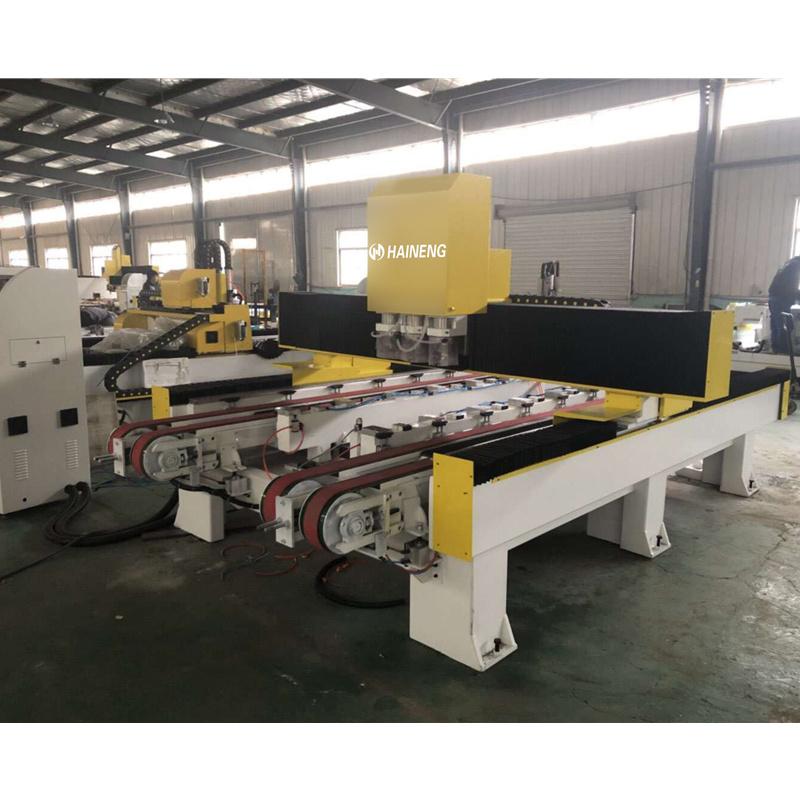

CNC Undermount Sink Cutting Machine

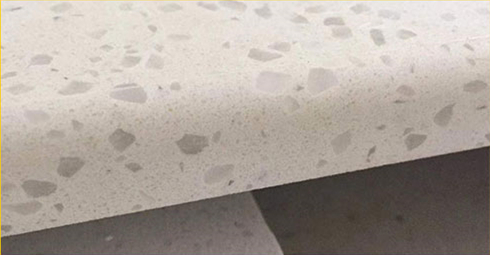

Using numerical control (CNC) principle, accurate positioning, automatic opening, automatic in and out of the plate; automatic feeding, automatic positioning, automatic clamping, automatic hole forming, automatic waste discharge and discharge.Designed for assembly line production, conveying Belt drive, high automation; electric spindle with high power and high efficiency.Complete functions, No. 1 cutter head can not only open various round holes, square holes, faucet holes, but also can process column feet, No. 2 cutter head can be shaped to meet the processing requirements for under-counter basins and Taichung basins; No. 3 cutter head can be polished, and the brightness can reach about 400 meshes.It is (currently) the most advanced countertop sink cutting machine.


  • Brand:

    HAINENG
  • Item NO.:

    K7026-3T-2
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    Yellow & gray
  • Shipping Port:

    Xiamen port
  • Lead Time:

    15 days
Product Detail

Product Introduction

Scope of application: High-performance automatic assembly line opening and chamfering equipment developed for artificial stone, quartz stone, marble and countertop processing industry.

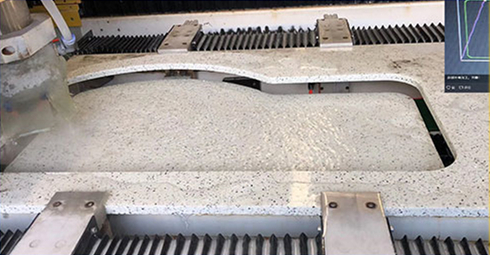

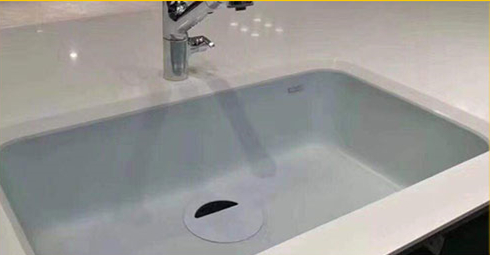

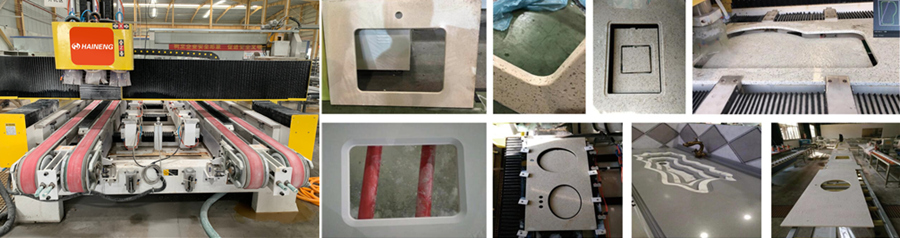

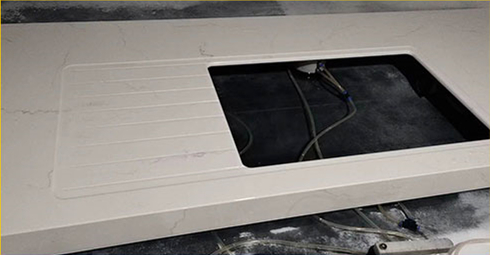

Equipment function: the opening of the countertop stove hole, the above counter basin, the Taichung basin and the undercounter basin.

Basic processing: The equipment is welded and annealed by integral steel pipe. The machining machine is a Japanese Mazak five-axis CNC gantry milling machine, which effectively guarantees the service life and machining accuracy of the equipment.

Configuration selection: The core mechanical and electrical components are all imported or domestic first-line brands, which effectively guarantees the operational stability and quality of the equipment.

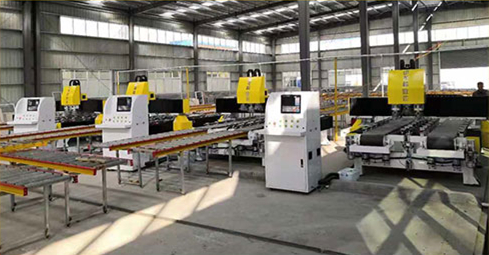

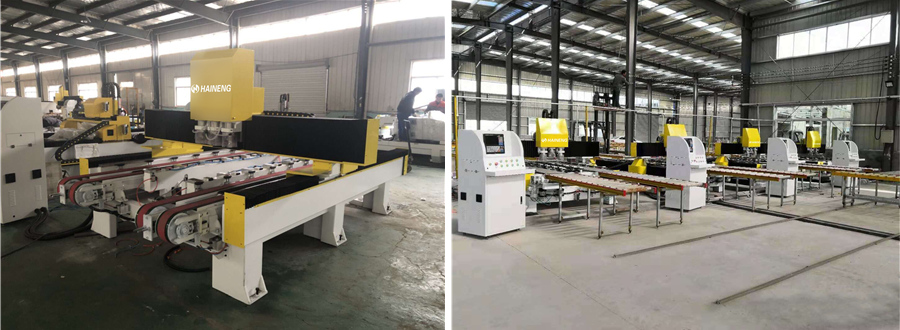

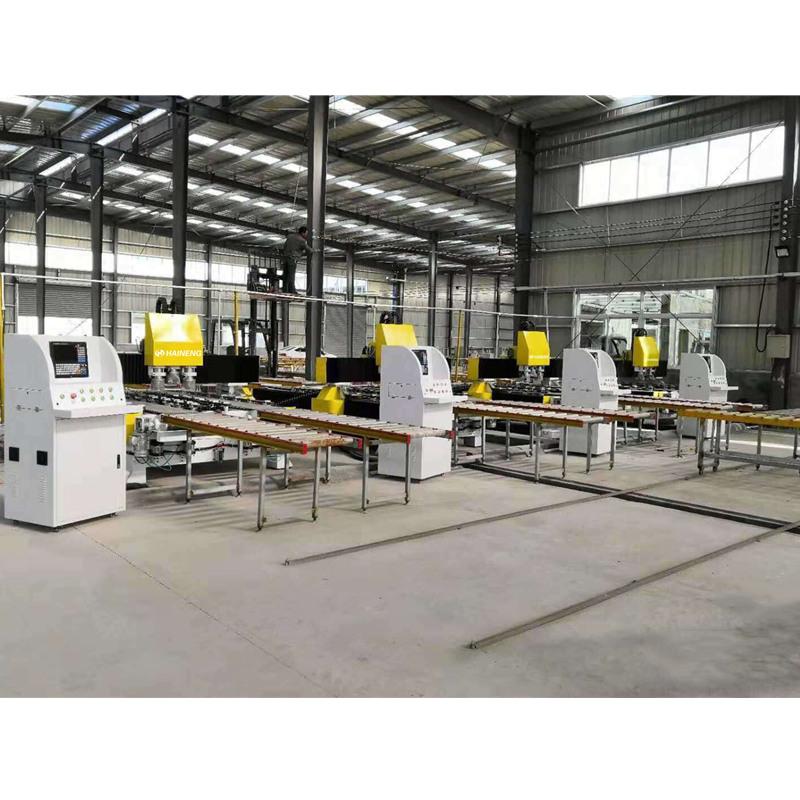

Fool-type operation: The control system is independently developed by Longhan's own software department, and the equipment can reach the fool-like operation, effectively avoiding the problem of high entry threshold caused by the low quality of the practitioners. The automatic processing of automatic feeding and discharging of the assembly line has greatly met the current development trend of the countertop industry, effectively reducing the processing dust of the factory, improving the standardization of the products, and the requirements for the operators to be used without differentiation. The design of the double station greatly improves the processing efficiency of the equipment.

Processing quality assurance: This equipment adopts three-knife automatic switching and on-line processing design, which is easy to operate, high in processing efficiency and good in quality.

This  CNC Undermount Sink Cutting Machine is a necessary choice for standardized countertop processing plants, especially for engineering countertop processing plants.

Technical Parameters


CNC Undermount Sink Cutting Machine

Type

unit

K7026-3T-2

Width

mm

2800

 Length

mm

4500

 Height

mm

1800

Cutting slab width

mm

550-700

Cutting slab length

mm

600-2600

Cutting slab thickness

mm

12-20

Airway velocity parameters

mm/min

12000

Machining speed parameters

mm/min

1000-4000

Total Power Parameters

kw

11

Operating Voltage Parameters

v

AC380

Motor

/

Customized 7.5KW motorized spindle

Motor speed

rpm/min

24000

Control system

/

Longhan K7026 Special Edition

Tool Change Type

/

Three-end pneumatic tool change

Control cabinet

/

Independent cabinet

Frequency conversion type

/

Customized Vector Frequency Converter

Driver type

/

Customized Servo System

Feeding mode

/

Automatic Pipeline


Processing

Features


batch / special shape / more labor-saving

Suitable for processing: basin hole / stove hole / countertop middle basin



Non-standardized mass production

Mass production of bathroom basins



Running water trough

High standard



Change employment

Optimized series

Products Recommended

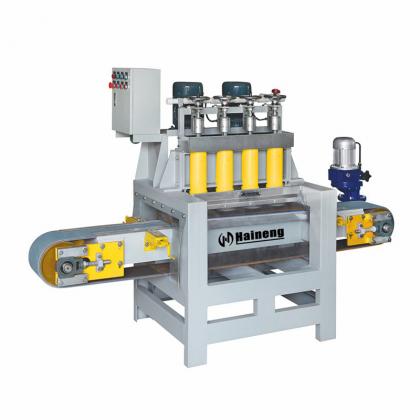

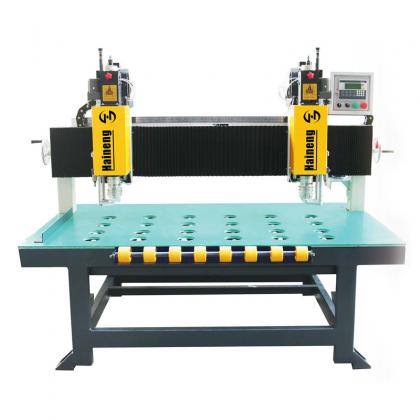

3 Bits Hole Cutting Machine In Single Worktable

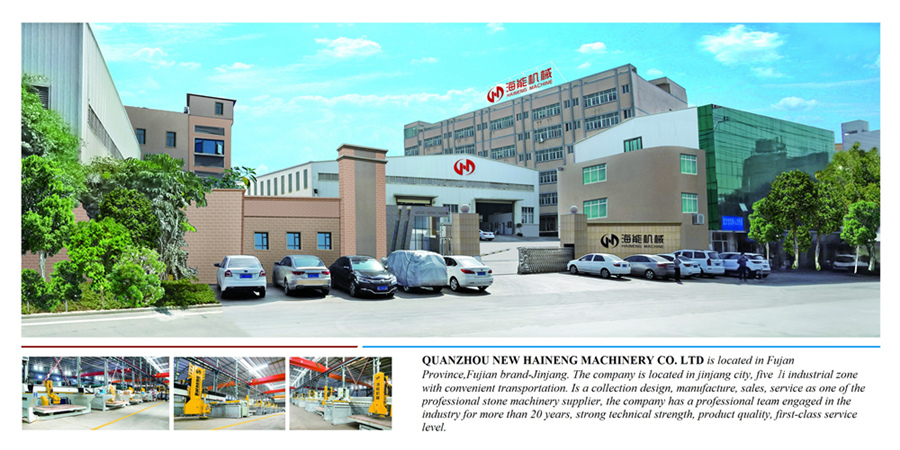

Company information


Leave A Message

Leave A Message

Related Products
CNC Undermount Sink Cutting Machine
Automatic Quartz Sink Hole Cutting Machine
It is suitable for drilling and shaping of artificial stone, quartz stone and other plate countertops, and can be polished after changing the tool.This machine adopts high-speed electric spindle, pneumatic clamping; manual feeding and discharging, pneumatic quick clamping, automatic processing, easy to operate.Using PLC control, automatic feeding, automatic positioning, automatic clamping, automatic hole forming, automatic waste discharge and discharge.
Stone CNC Machining Center
CNC Stone Working Center
1. This machine can meet the processing requirements of cutting, edging, polishing and engraving of different materials. 2. The machine automatically changes the tool during the whole process without manual intervention, which reduces the labor cost and improves the production efficiency for the enterprise. 3. The bed is welded seamlessly with thick-walled steel pipes to ensure higher machining accuracy.
CNC Four-Axis Cutting Machine-Quartz stone machine
CNC Four-Axis Cutting Machine
It is a smart choice for high-end zero-single table processing plants!
CNC Four-Axis Cutting Machine-Quartz stone machine
CNC Four-Axis Cutting Machine
It is a smart choice for high-end zero-single table processing plants!
Bridge Multi Blade Block Cutter
Multi-Blade Bridge Stone Cutting Machine
The machine has fine processing, stable performance, high automatic production efficiency, convenient installation, operation and maintenance, and meets the development demand of international stone processing.
Stone middle block cutting machine
Middle Block Stone Bridge Saw
It can be used for border stone, gravestone, gravestone and other process-like rectangular thick materials and polygon thick materials(table rotation 0-45-90 degree is optional), especially suitable for high value, high precision and high efficiency demand users.
Thin Veneer Saw For Stone
Thin Stone Veneer Saw
Our patented  veneer saws make cutting thinstone veneer flats and 90-degree corners quick, simple, and profitable. The unique v-structured cutting surface easily cuts split-face or natural finished sandstone, brick, limestone, and other hard stones up to 16” high and 2.5” thick. and we are the 1st factory to design and make this machine in China.

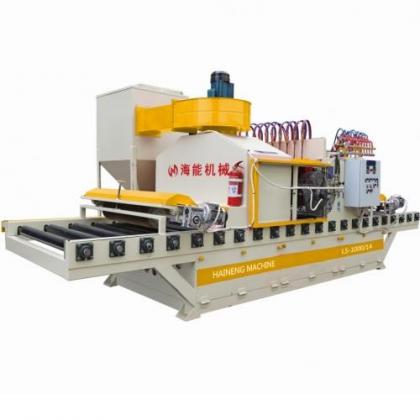

Automatic Stone Polishing Machine
