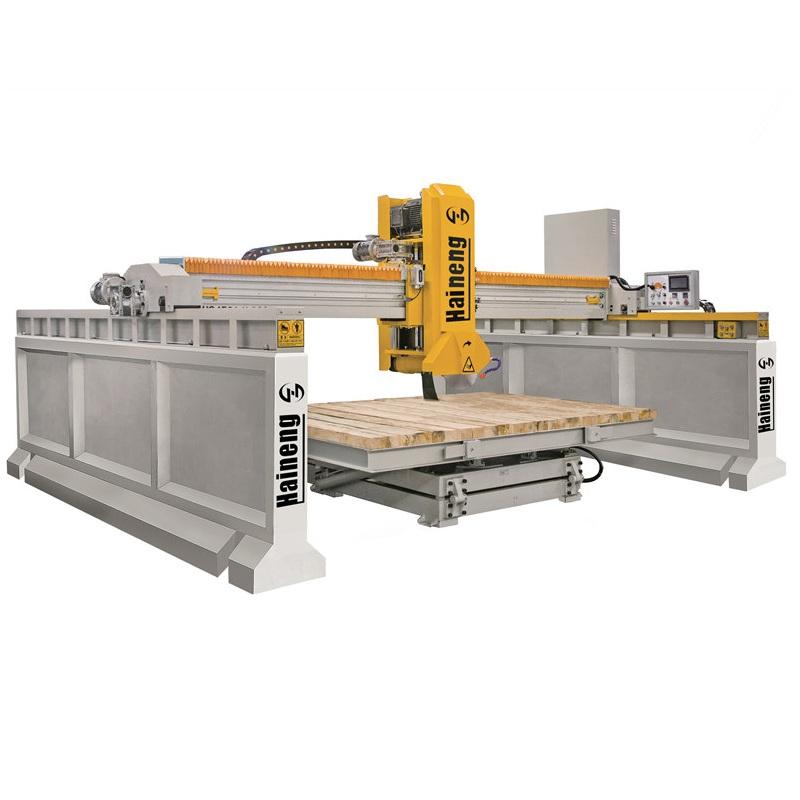

Infrared Bridge Stone Cutting Machine

Optional with 360-degree rotation for automatic positioning with every 45 degrees, mainly used for cutting rectangles, octagons, arcs, and circles.

  • Brand:

    HAINENG
  • Item NO.:

    HQ450A/HQ600A/HQ700A
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    Yellow & gray
  • Shipping Port:

    Xiamen port
  • Lead Time:

    15 days
Product Detail

Product Introduction

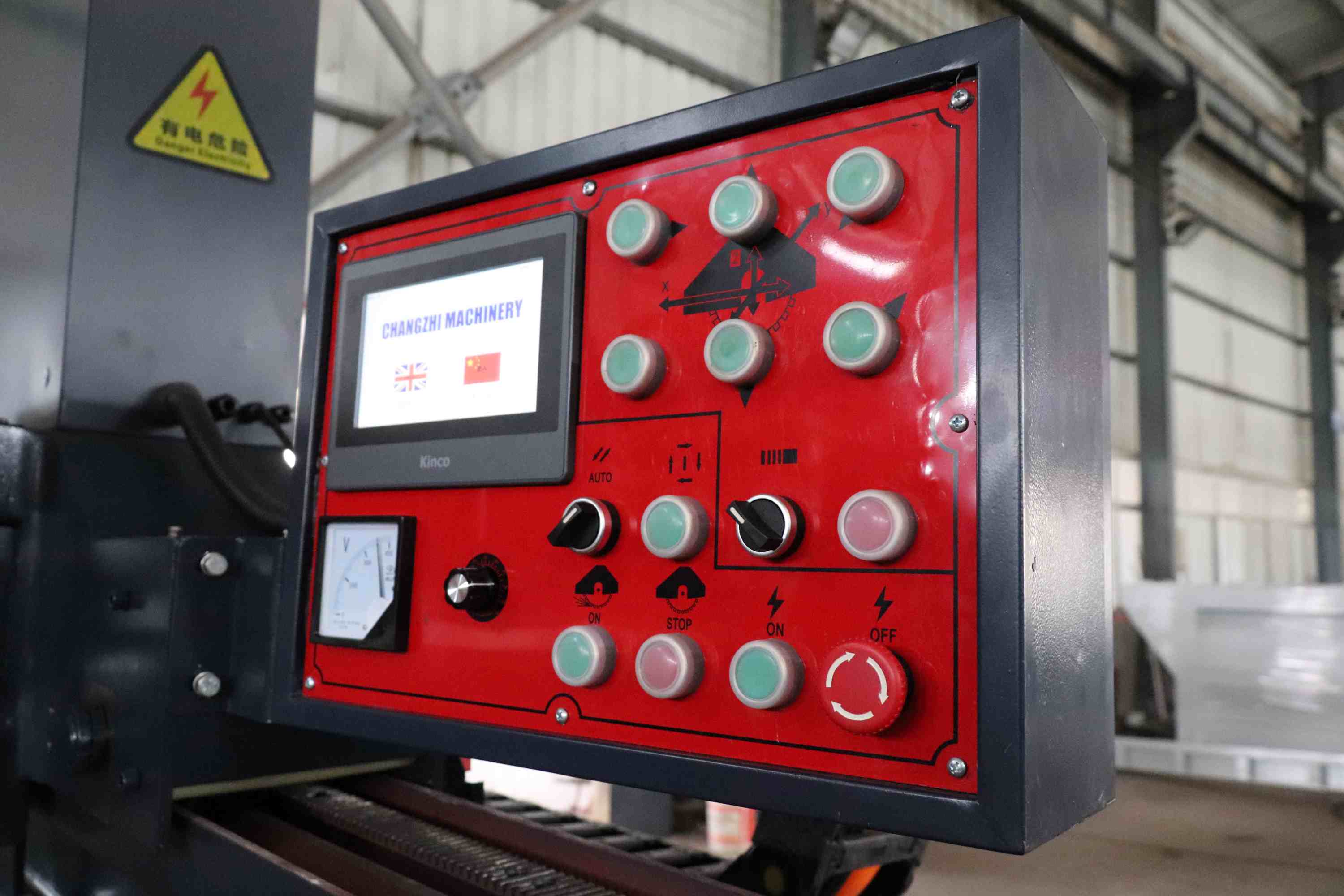

Infrared bridge stone cutting machine adopts microcomputer control, touch-type operation pannel, and man-machine dialogue is flexible.

The main control components are all international famous brand components, the cross-beam adopts oil-immersed double V-shaped track, the transverse pass adopts stepless speed regulation, and the longitudinal splitting mechanism adopts double mountain-shaped guide rail combined with high-precision encoder counting to ensure the machine working precision.

Standard with 0-90 workbench, 0-85 degree flap, mainly used to cut high-precision specification board.

Optional with 360-degree rotation for automatic positioning with every 45 degrees, mainly used for cutting rectangles, octagons, arcs, and circles.

Infrared bridge stone cutter ( Chamfering servo )


Technical Parameters

Infrared Bridge Stone Cutting Machine

Type

unit

HQ450A

HQ600A

HQ700A

HQ800A

Max. Working dimensions(L×W×H)

mm

3200×2000×100

3200×2000×180

3200×2000×230

3200×2000×280

Blade diameter

mm

Φ350-Φ450

Φ350-Φ600

Φ350-Φ700

Φ500-Φ800

Max.Lifting stroke

mm

230

380

480

580

Worktable size (L×W)

mm

3200×2000

Worktable turnover degree

0-85

Worktablerotating degree

0-90/360

Power of main motor

kw

15

18.5

18.5

18.5

Total power

kw

21

24.5

24.5

24.5

Water consumption

m³/h

4

4

4.5

4.5

Dimension      (L×W×H)

mm

6000×4800×3000

6000×4800×3200

6000×4800×3400

6000×4800×3600

Total weight

kg

5400

5600

5800

6000

 Infrared Bridge Stone Cutting Machine

Processing


Infrared Bridge Stone Cutting Machine

Loading container


Infrared Bridge Stone Cutting Machine
