Multi-Blade Stone Strips Cutting Machine

This machine is divided into automatic and semi-automatic models for users to choose, the body is light, easy to move, long service life, accurate cutting, high efficiency.

  • Brand:

    HAINENG
  • Item NO.:

    XD300-8A/B
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    Yellow & gray
  • Shipping Port:

    Xiamen port
  • Lead Time:

    15 days
Product Detail

Product Introduction

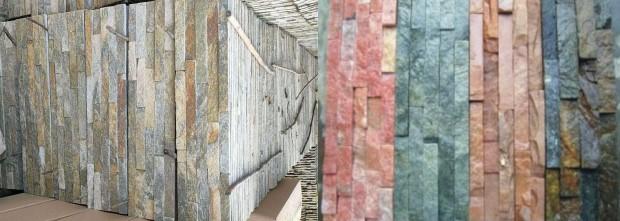

Multi-Blade Strips Cutting Machine is mainly used for cutting decorative stone tiles and Mosaic bricks.

This machine is divided into automatic and semi-automatic models for users to choose, the body is light, easy to move, long service life, accurate cutting, high efficiency.


Technical Parameters

  Multi-Blade Stone Strips Cutting Machine

Type

unit

XD300-8A

XD300-8B

Blade diameter

mm

Φ300

Φ300

Max.cutting length

mm

600

600

Max.cutting width

mm

500

500

Max.cutting thickness

mm

80

80

Max.diskqty

pcs

8

8

Main motor power

kw

7.5

7.5

Total power

kw

8.62

8.62

Water consumption

m³/h

2

2

Dimension  (L×W×H)

mm

1800×1000×1750

3400×1551400

Total weight

kg

750

1200

Multi-Blade Stone Strips Cutting Machine


Multi-Blade Stone Strips Cutting Machine


Processing

Loading photos

Multi-Blade Stone Strips Cutting Machine
