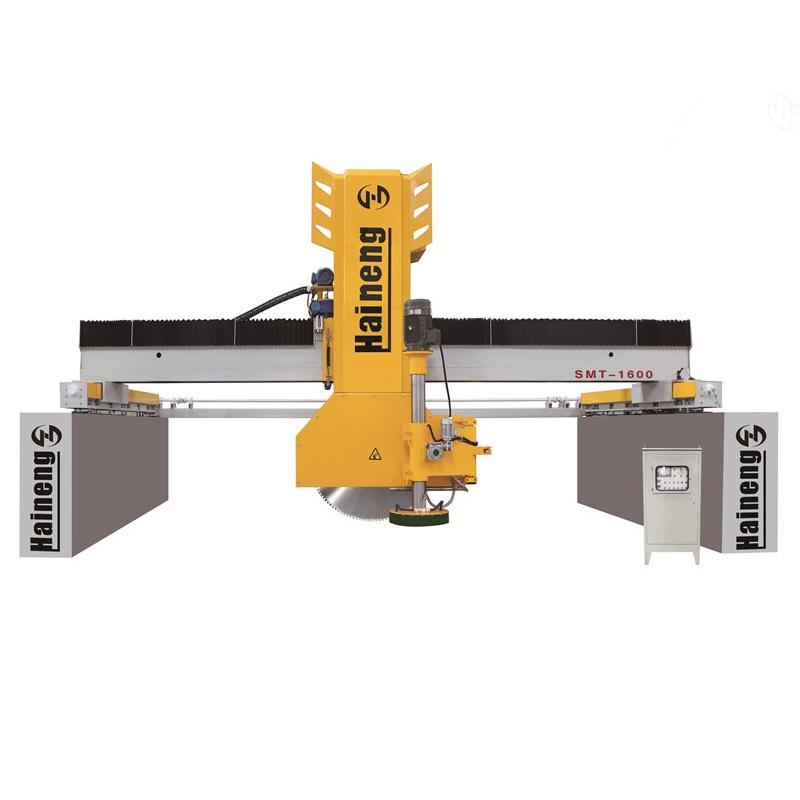

Bridge Double Directions Block Cutting Machine

This machine has the advantages of high cutting efficiency, high splicing precision, good flatness, high stability, simple operation and so on, especially suitable for high-value granite. The cutting of raw marble.

  • Brand:

    HAINENG
  • Item NO.:

    QS1600/QS1800/QS2000
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    china
  • Color:

    yellow & gray
  • Shipping Port:

    xiamen port
  • Lead Time:

    15 days
Product Detail

Product Introduction

Around the Bridge Double Directions Block Cutting Machine structure of large span bridge, feeding the multi-stage transmission, frequency control of motor speed, and lift adopts mechanical transmission, shard before and after adopting high precision lead screw and nut, spindle power head adopts dual axle gear train, the level of knife lift guide pillar using cylindrical guide rail, hydraulic automatic feed, the control system adopts PLC programmable control system and human-machine interface, lifting, feeding, shard adopt high precision encoders count, ensure the machine cutting precision, durable and reliable. Lifting large stroke, cutting directly on the root of the plate, according to the need of layered cutting, so as to avoid the trouble of manual unloading, improve efficiency.

This machine has the advantages of high cutting efficiency, high splicing precision, good flatness, high stability, simple operation and so on, especially suitable for high-value granite. The cutting of raw marble.

Note:If the production process needs, the user can add 360 rotary table.

Bridge Type Two-Way Stone Cutter

Technical Parameters

Bridge Double Directions Block Cutting Machine

Type

Unit

QS1600

QS1800

QS2000

Main motor power

kw

75/90

75/90

75/90

Blade diameter

mm

Φ1600

Φ1800

Φ2000

Horizontal motor power

kw

15

15

15

Horizontal main engine lift stroke

mm

400-500

400-500

400-500

Movements itinerary

mm

1400

1400

1400

Shard trip

mm

2200

2200

2200

Cutting stroke

mm

3600

3600

3600

Saw blade number

pcs

1+1

1+1

1+1

Water consumption

m³/h

10

10

10

Total power

kw

103/118

103/118

103/118

Overall dimensions
(L×W×H)

mm

7800×3800×6000

8300×3800×6100

8300×3800×6200

Machine weight

kg

12000

12500

12500

Bridge Double Directions Block Cutting Machine

Processing

Loading container

Company information

If you are interested in our products, please contact us immediately!
