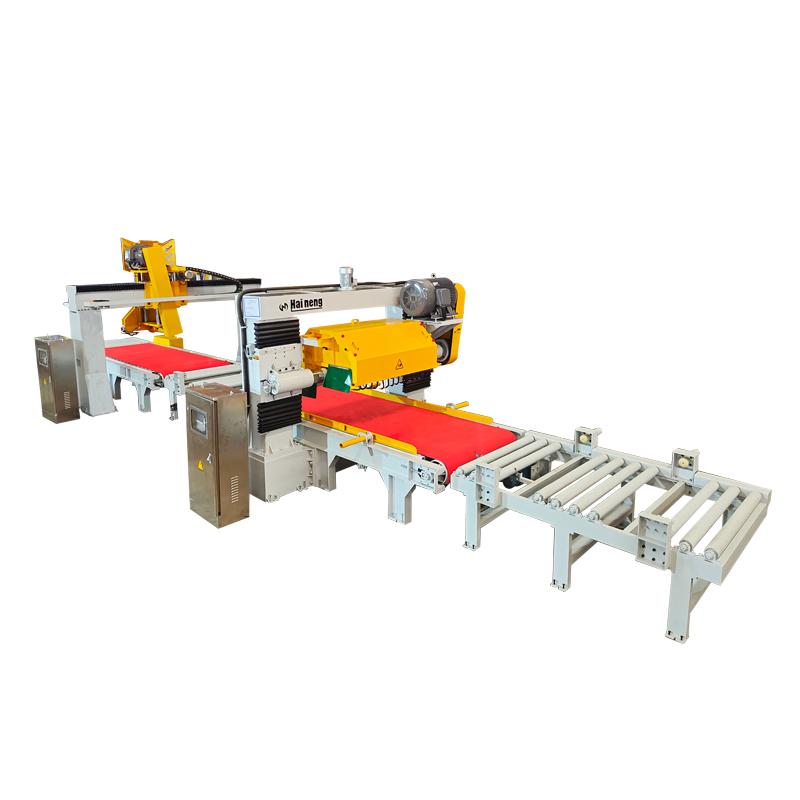

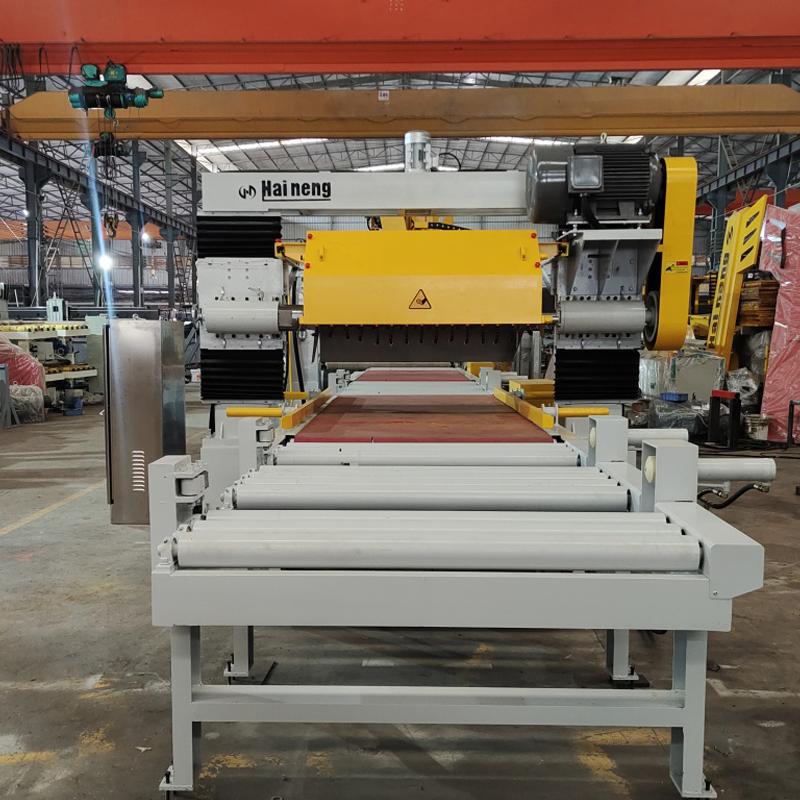

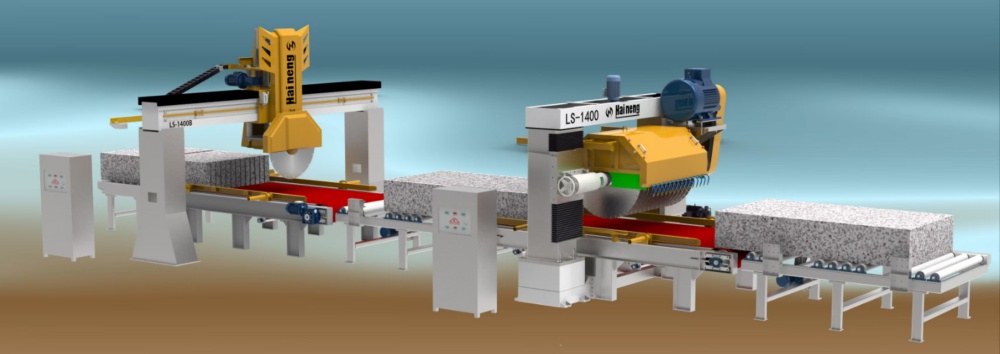

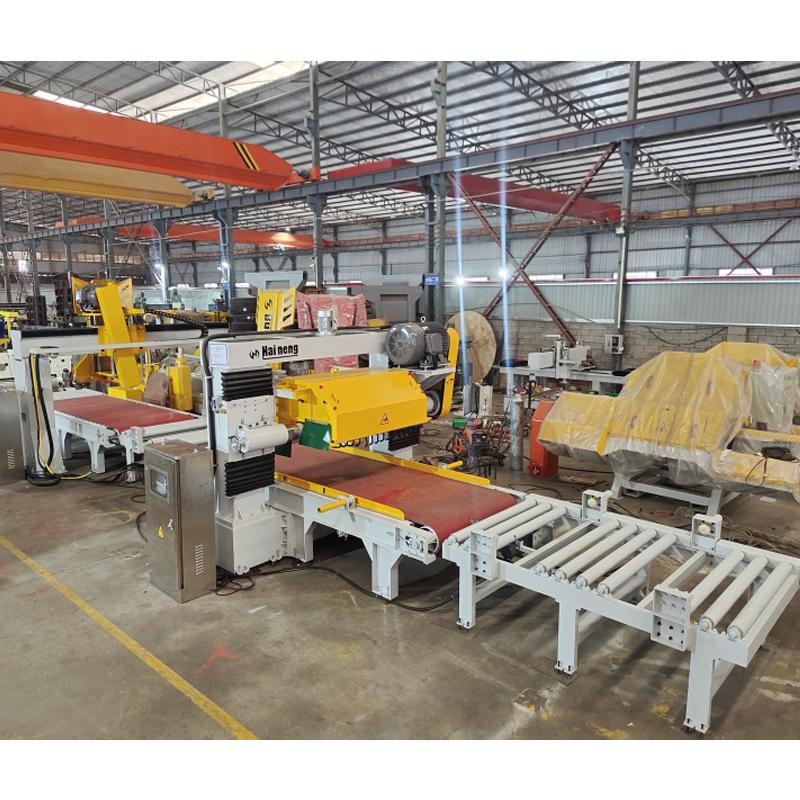

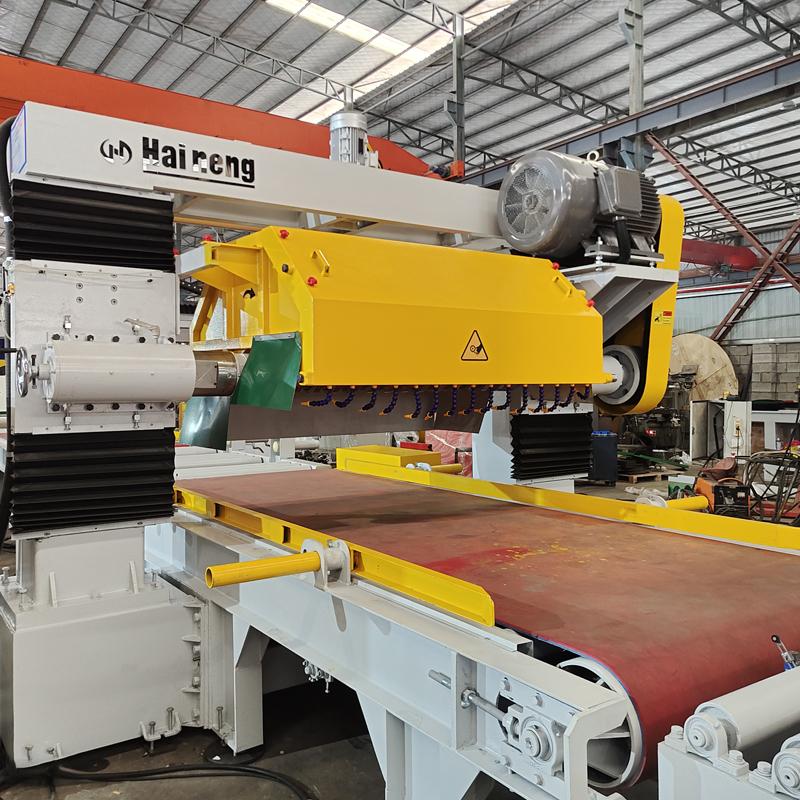

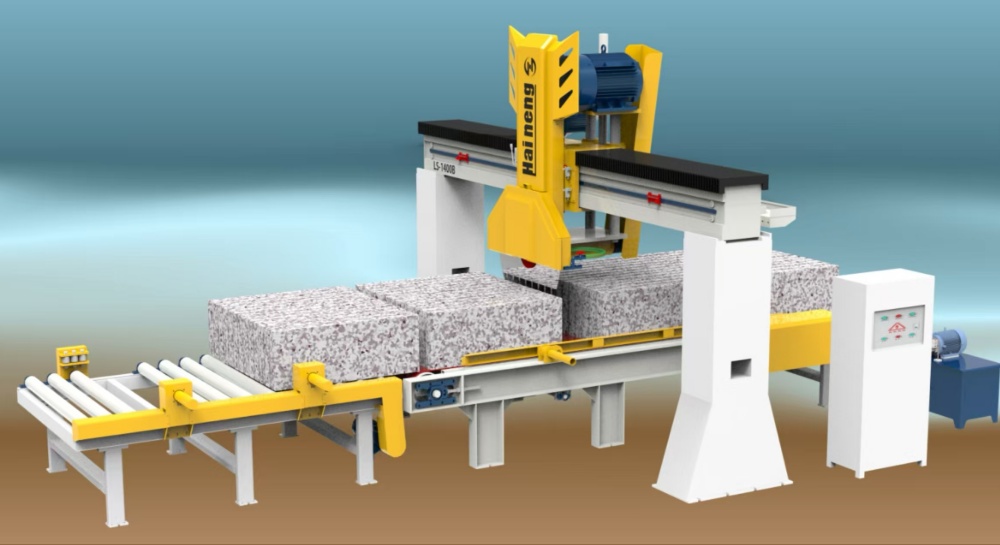

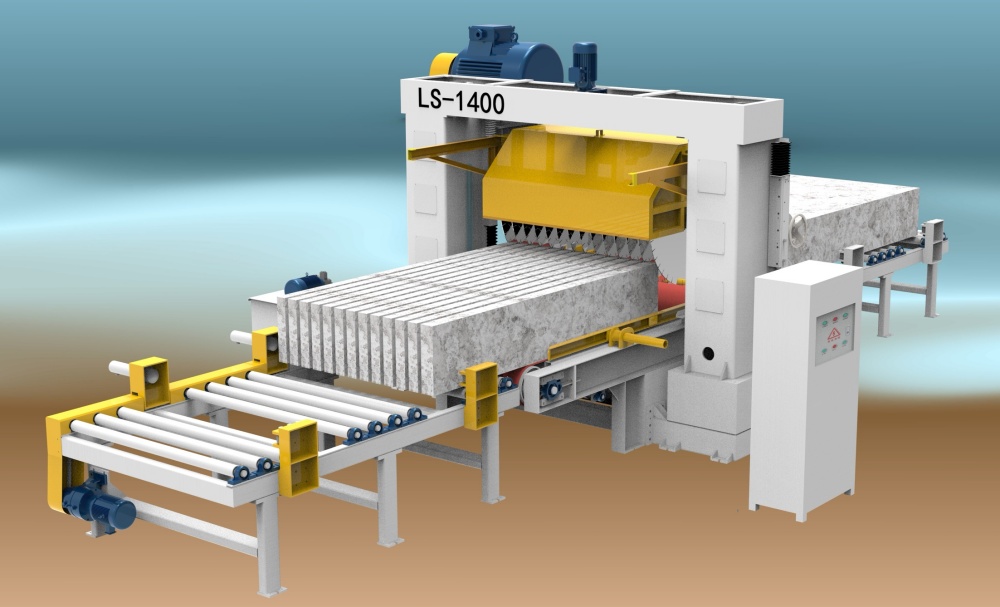

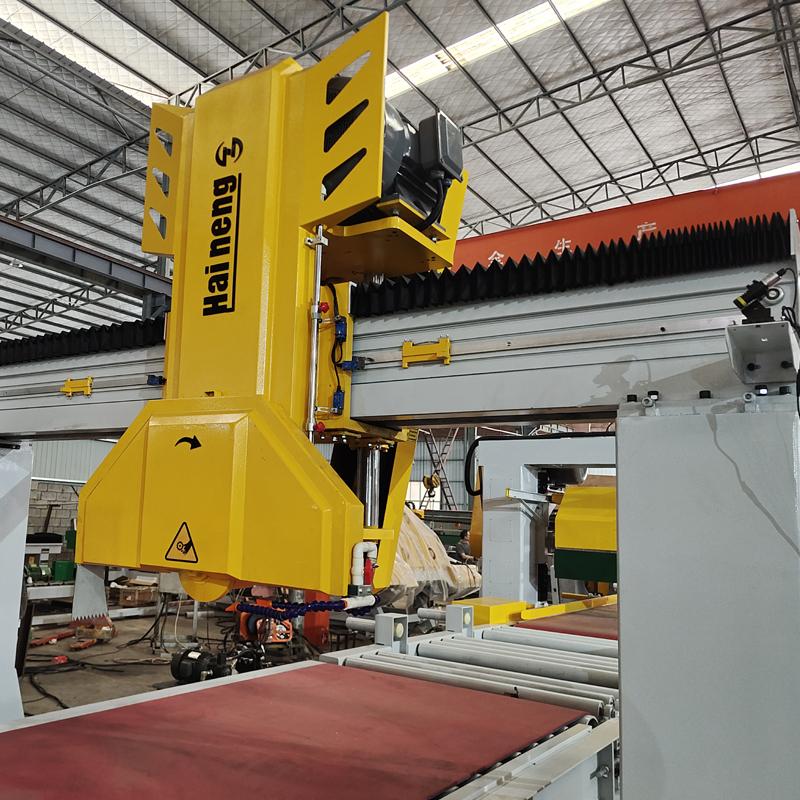

Automatic Kerbstone Cutting Machine Line

Kerbstone cutting machine line processes diverse materials including granite, marble, limestone, basalt, sandstone, concrete, and engineered stone to manufacture kerbstones, paving blocks, guardrails, and square semi-finished products.

Brand:
HAINENG
Item NO.:
LT-1000
Payment:
T/T
Color:
Yellow
Shipping Port:
Xiamen Port

Single Column Stone Cutting Machine

This Block Cutting Machine is a special machine tool for cutting curb stones and strip stones. The cutting length can be customized according to the needs of users, which makes up for the processing defects on the length of the gantry stone cutting machine. The saw blade moves in and out, lifts and lowers electrically, the feed of the worktable is adjusted by the frequency converter, and the stone is automatically cut horizontally, with high work efficiency.

Bridge Single Blade Stone Block Cutting Machine

The bridge block cutting machine has a simple and reasonable structure and high stability. It adopts hydraulic sliding plate to lift, which has the characteristics of fast lifting speed, anti-wear, not easy to deform, and easy to maintain.

Haineng High Efficiency Multi-Saw Stone Cutter

The Multi-blade stone cutter has a high degree of automation, stable overall processing performance, high efficiency and low consumption. It is the most ideal stone machine for cutting strip stones, curb stones and monument stones.

Multi-Blade Hydraulic Stone Cutting Machine

This machine is optimized and improved on the basis of the combined saw. The machine adopts a four-column hydraulic locking structure, which has good overall rigidity and small clearance, which is conducive to reducing the shaking during the cutting stone, and the produced slabs have high precision. , the flatness is good. At the same time, it has achieved remarkable results in improving the service life of the segments and reducing power consumption.

SLQ600/800 Hand Stone Cutting Machine for Tombstone

This stone cutting machine can be used for cutting large stone carvings, brick carvings, inkstones, tombstones, floor stones, etc.

ANYTH Double Blades Stone Cutter

Double Blades Stone Cutter adopts a portal double column structure, oil-immersed track, horizontal electric variable frequency cutting, electric lifting, double saw blades, and an optional conveyor belt workbench, making it the best choice for stone cutting.

5 Axis CNC Water Jet Ceramic Stone Universal Cutting Machine

The computer of the 5 Axis CNC Waterjet will calculate the density and thickness of the workpiece material to be cut in real time, and control the cutting head to run along the cutting path to achieve three-dimensional complex-shaped workpiece cutting.

XQJ-600 Portable Marble Slabs Stone Cutting Table Saw Machine

XQJ-600 is a stone cutting table saw machine suitable for cutting stone, ceramic tile, brick, concrete and wood etc.

Type	Unit	LT1000
Longitudinal (fixed-width) saw blade diameter	mm	1000

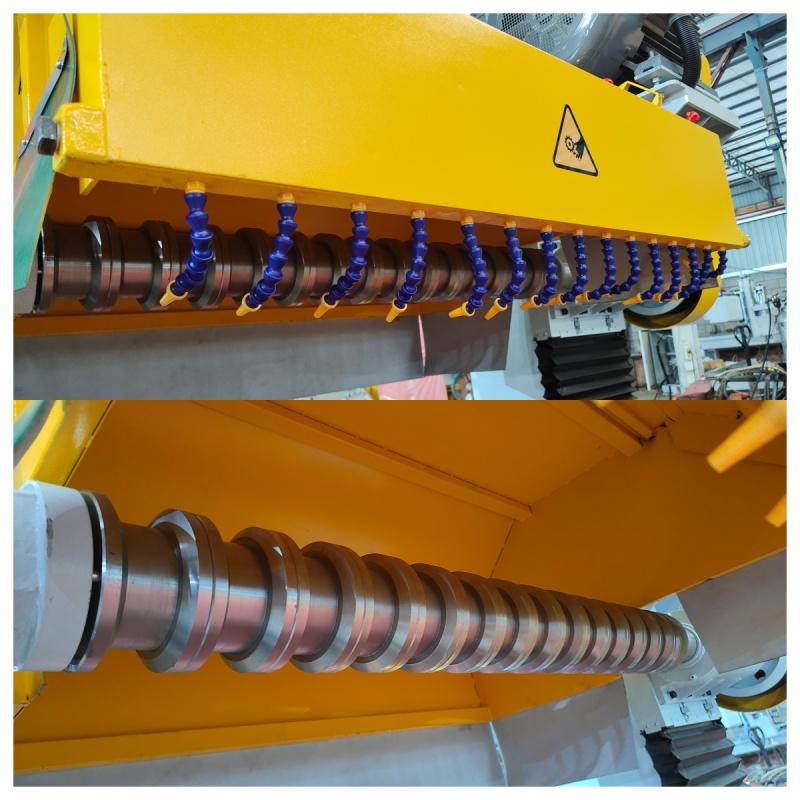

The number of longitudinal (fixed-width) saw blades	mm	14
Longitudinal (fixed-width) saw blade shaft diameter	mm	100
Maximum longitudinal (fixed width) working dimensions	mm	25001400350
Minimum longitudinal (fixed-width) finished product((LxW)	mm	2500*100
Longitudinal (fixed-width) main motor power	KW	65
Diameter of the transverse (fixed-length) saw blade	mm	1000
The number of transverse (fixed-length) saw blades	mm	1
Lateral (fixed-length) saw blade shaft diameter	mm	50
The maximum horizontal (fixed-length) working dimension	mm	25001400350
Minimum horizontal (fixed-length) finished product (LxW)	mm	2500*100
Horizontal (fixed-length) main motor power	KW	30
Total power of the whole machine	KW	103.85
Water consumption	m³/h	15
Installation external dimensions	mm	1430045003650
Whole machine weight	Kg	14000
