Brand:
HAINENGItem NO.:
SJBP-200Order(MOQ):
1Payment:
T/TProduct Origin:
ChinaColor:
YellowShipping Port:
Xiamen PortLead Time:

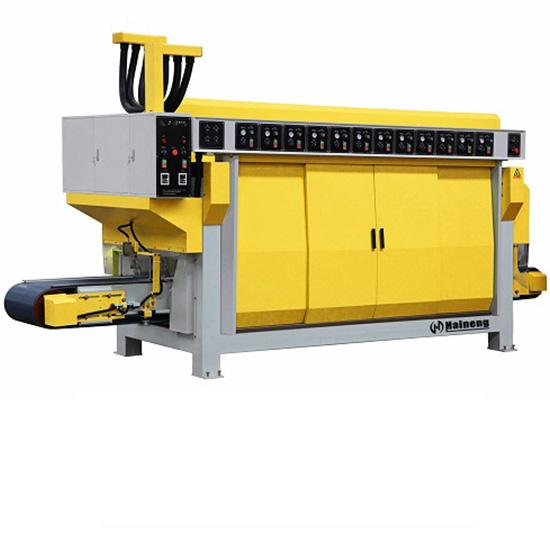

15 DaysAutomatic Lifting Swing Polishing Machine For Easy Use

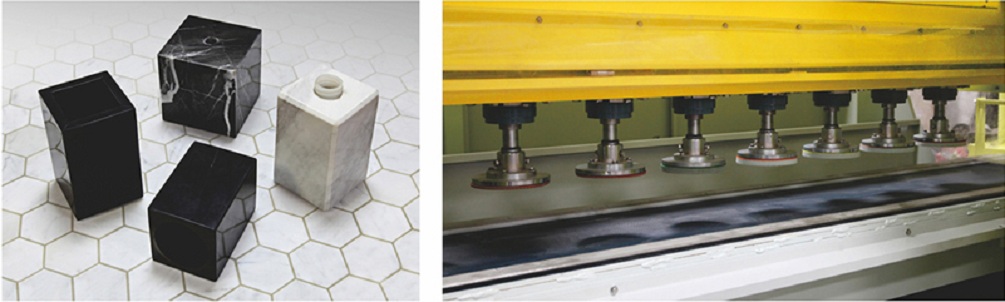

Lifting polishing machine, this equipment is a new function added to the original invention patent, this function is the lifting function, the main girder remains unchanged, the overall polishing part can be raised and lowered from 10mm to 200mm, and a great deal has been done on the polishing material It can be used as plane polishing for tombstone process, tissue box, trophy holder, lamp holder, etc. it inherits all the advantages of the original product. in the process of continuous change, the lifting plane polishing machine can be used for more industries and more products. With the improvement of the process, it solves the difficulties that many industries can only operate manually. This machine adopts automatic functions, and the operation is simple, easy to learn, easy to understand and easy to use.It has won unanimous praise from the majority of users.
Main technical parameter:
Name |
Unit |
SJBP-200 Lifting Swing Polishing Machine |
Max. Processing width |
mm |
500 |
Processing thickness |
kw |
10-200 |
Number of polishing heads |
|
12pieces×2.2kw |
Polishing head diameter |
mm |
150 |
Belt motor |
kw |
1.5 |
Lift motor |
kw |
0.75 |
swing motor |
kw |
1.1 |
Total power |
kw |
29.75 |
Dimension size |
mm |
5400×1600×2300 |
