Brand:
HAINENGItem NO.:
NH1-600S /800SOrder(MOQ):
1Payment:
T/TProduct Origin:
ChinaShipping Port:
Xiamen PortLead Time:

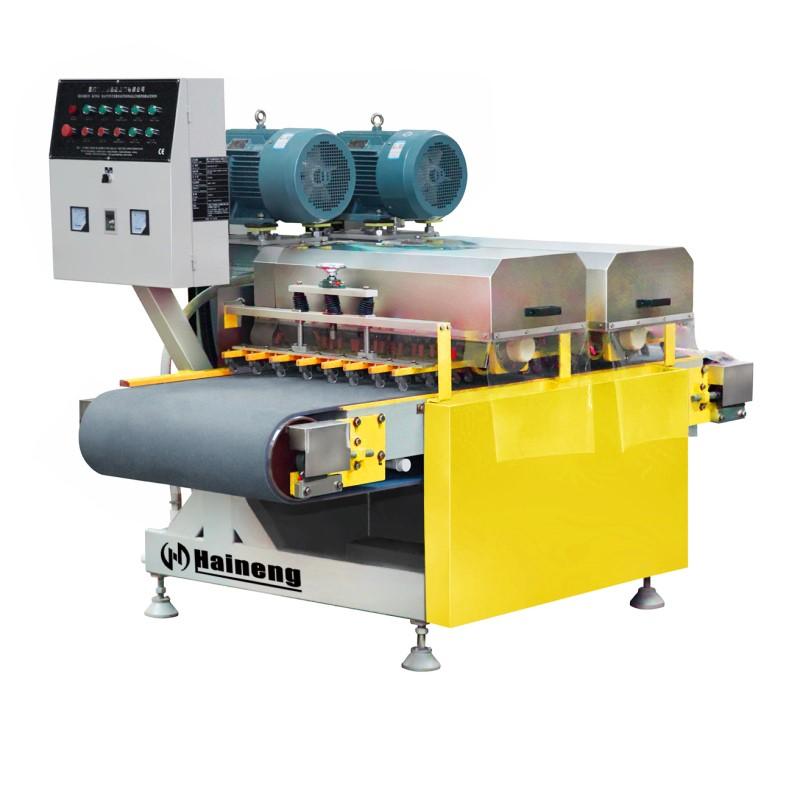

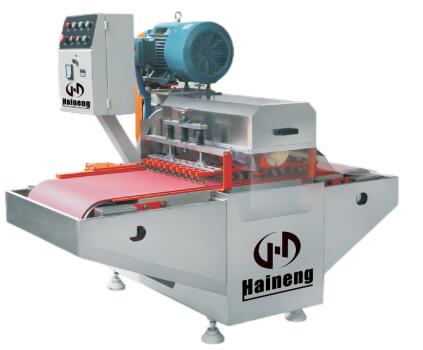

15 DaysAutomatic Multiple Tile Cutting Machine
Machine Technical Description:
NH1-600S /800S Tile Cutting Machine is a multi-blade cutter machine used for cutting or slotting tile and stone for 10-12 pieces at most at one time. It can cut tile into strip or square, diamond mosaic with special pressing plate. Different width can be processed simultaneously with chipping free cutting edges, and also chamfering function.It is high cutting precision, high efficiency and has a excellent effect.
Technical Features:
* Continuous cutting

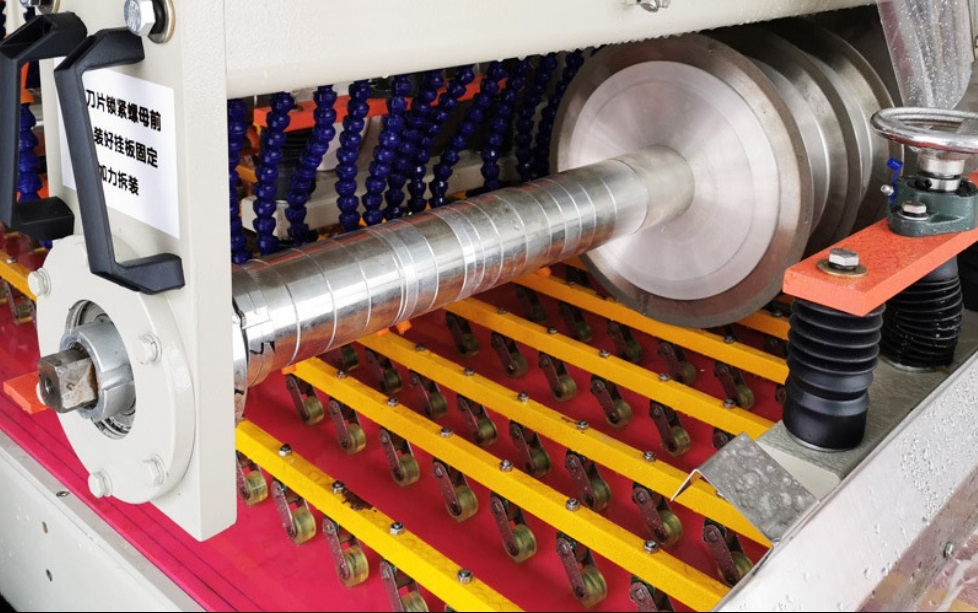

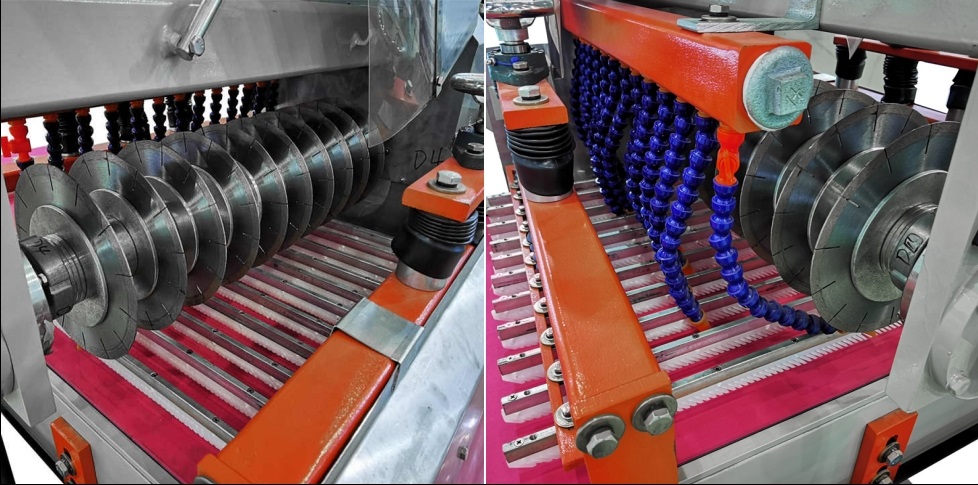

* Cutting with multi blades, cut into multiple pieces at one time.
* Equipped with automatic pressing plate, can process 10*10 mosaics.
* Maximum working width 600 / 800mm, cutting width adjustment from 20mm to 600 / 800mm.
Model |
|
HN1-600S |
HN1-800S |
Quality of shaft |
pc |
1 |
|
Dia. of blade |
mm |
180-250 |
|
Processing thickness |
mm |
6-20 |
|
Process width |
mm |
300-600 |
300-800 |
Speed of conveyor belt |
m/min |
1-5 |
|
Gross power |
kw |
16.5 |
|
Dimensions(Lx W x H) |
mm |
2200x1500x1800 |
2200x1600x1800 |
Gross weight |
kg |
≈1000 |
≈1050 |

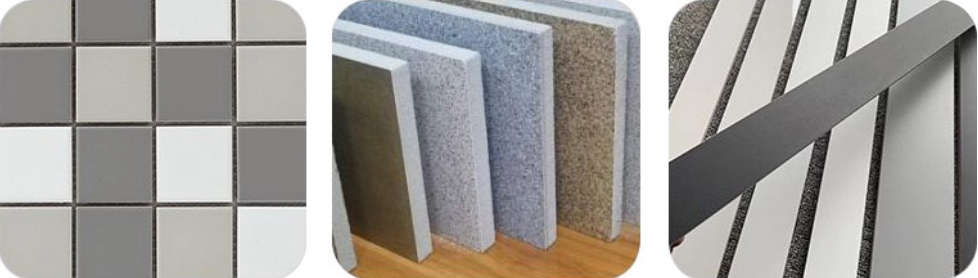

Cutting ceramic tile, roof tile, brick...

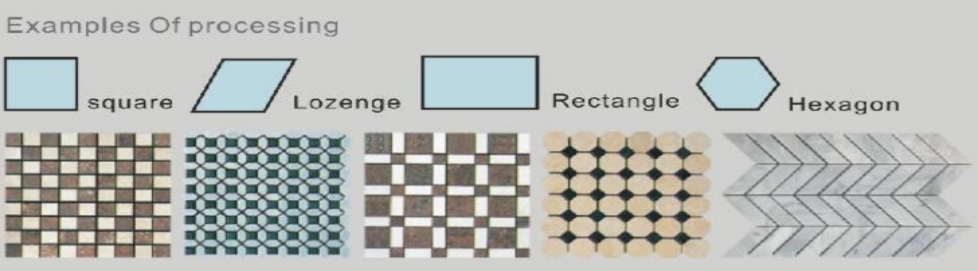

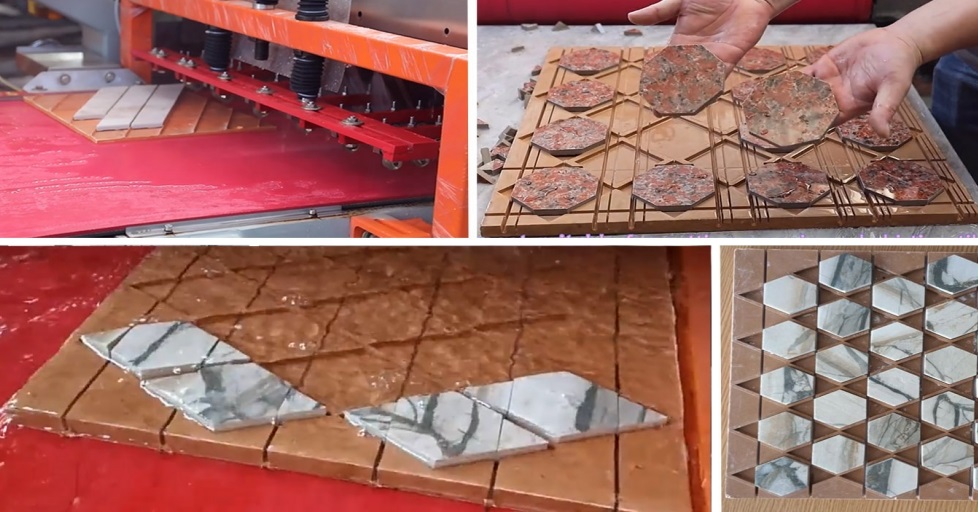

Cutting mosaic with pressing template

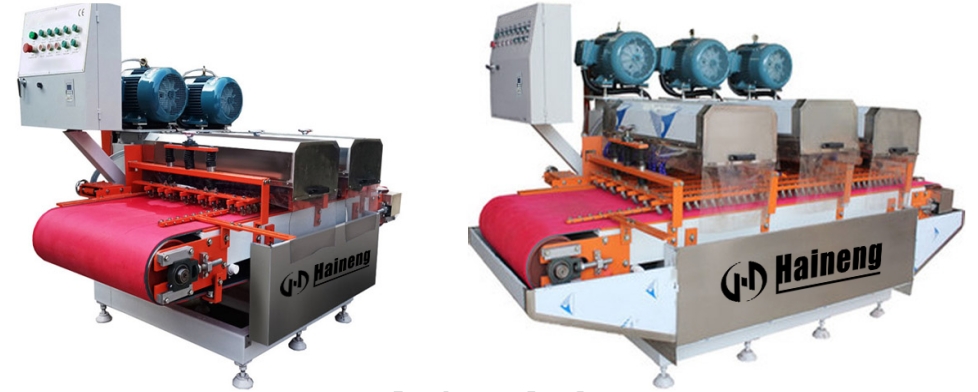

Machines with more group of multi-blades can be supplied
NHN2-600/800D Double Group Blades Cutter |
NHN3-600/800T Three Group Blades Cutter |
Model |
|
HN2-600D |
HN1-800T |
HN3-600D |
HN3-800T |
Quality of shaft |
pc |
2 |
3 |
||
Dia. of blade |
mm |
180-250 |
180-250 |
||
Processing thickness |
mm |
6-20 |
6-20 |
||
Process width |
mm |
300-600 |
300-800 |
300-600 |
300-800 |
Speed of conveyor belt |
m/min |
1-5 |
1-5 |
||
Gross power |
kw |
25 |
26 |
||
Dimensions(Lx W x H) |
mm |
2500x1700x1800 |
2200x1800x1800 |
3200x1700x1800 |
3200x1800x1800 |
Gross weight |
kg |
≈1300 |
≈1500 |
≈2000 |
≈2200 |

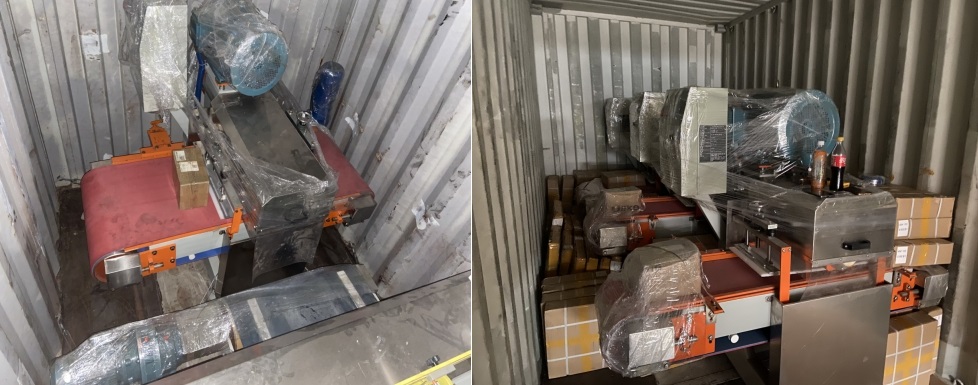

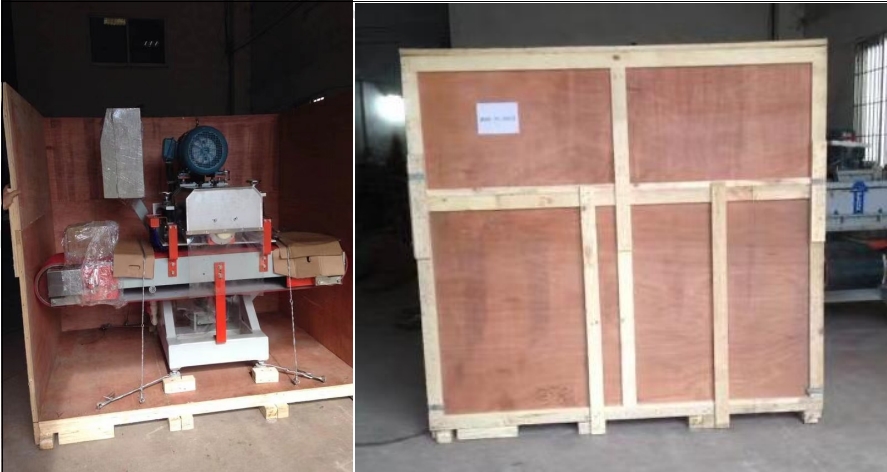

Machine packing & Loading
Machine Other Information
Guarantee Period: 1 year, and take effect after the machine put into production.
Delivery Time: Within 25days after receipt of advanced payment.
Available Power Supply: AS REQUESTED
Shipping Freight: should be check according the Port name provided by customer.
Documents: English Foundation Drawing, Electric Drawing, English Manual should be provided along with the machine Container. English Video
Installation: If require a Chinese Technician to install the machines, Customer need to pay for the following expenditure:
1st: Return-tickets
2nd. Accommodation, including eating and living
3rd: Charge of Visa Applying
4th:Salary for Technician: 150USD/Day.
For any other information you need , pls do not hesitate to tell us .Tks !
