Multi-function Desktop Stone Cutting Machine

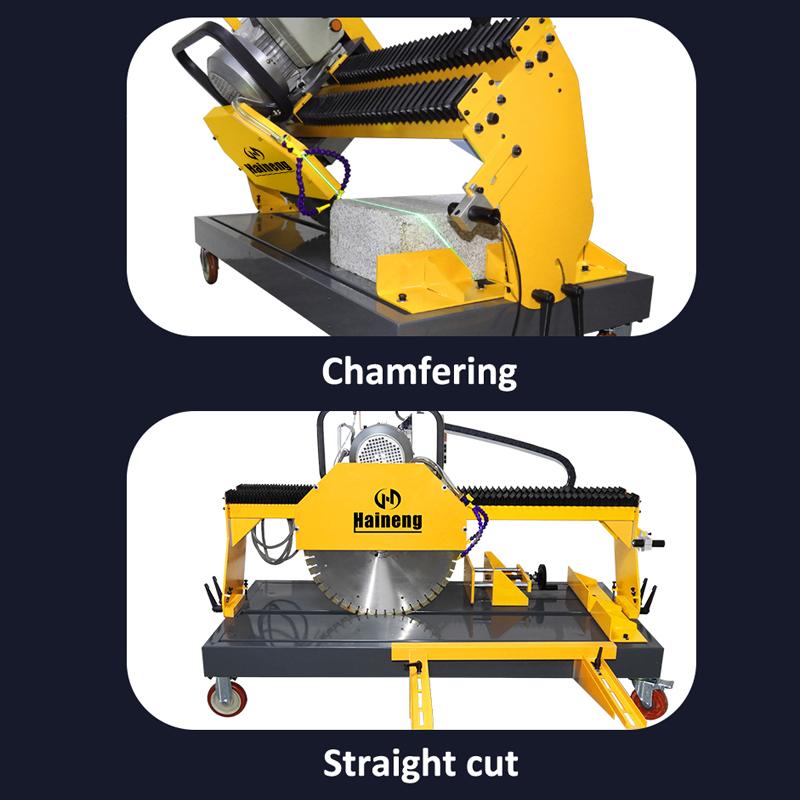

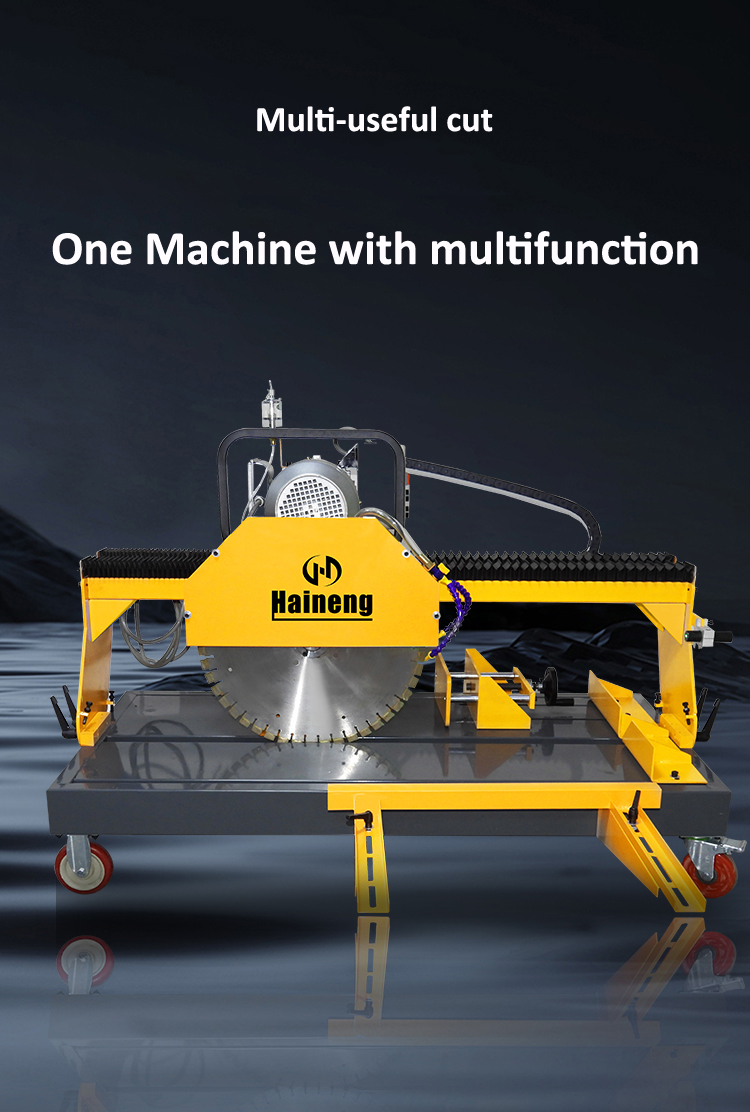

Multifunctional stone cutting machine can chamfer and cut straight. Cutting thick stone, such as curbstone, barstone, refractory bricks, etc.

Brand:
HAINENG
Item NO.:
SQJ6180
Payment:
T/T
Product Origin:
China
Color:
Yellow
Shipping Port:
Xiamen Port
Lead Time：
25 days

Inquiry now

Product Detail

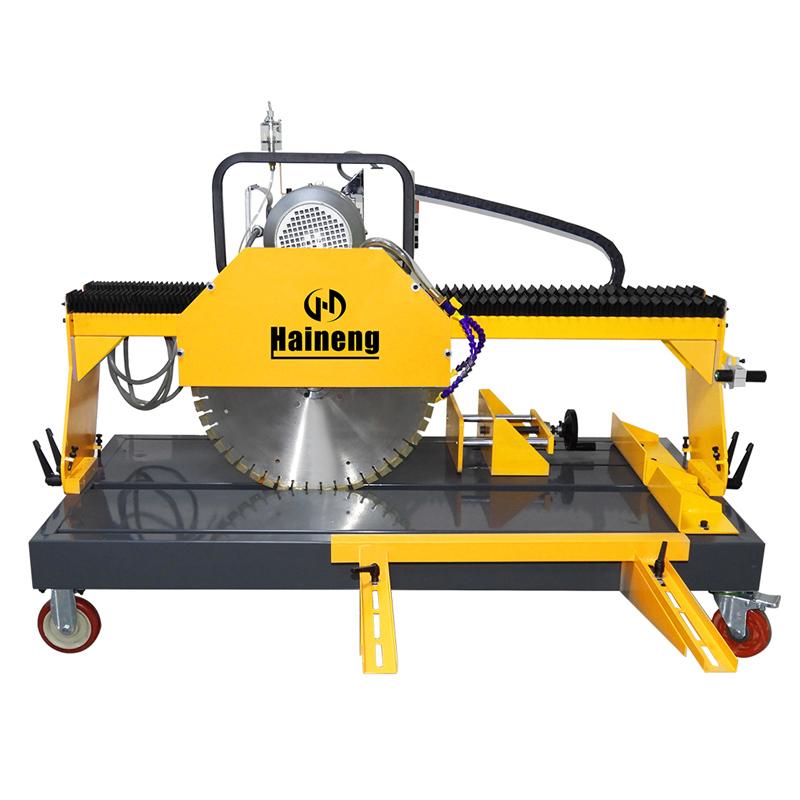

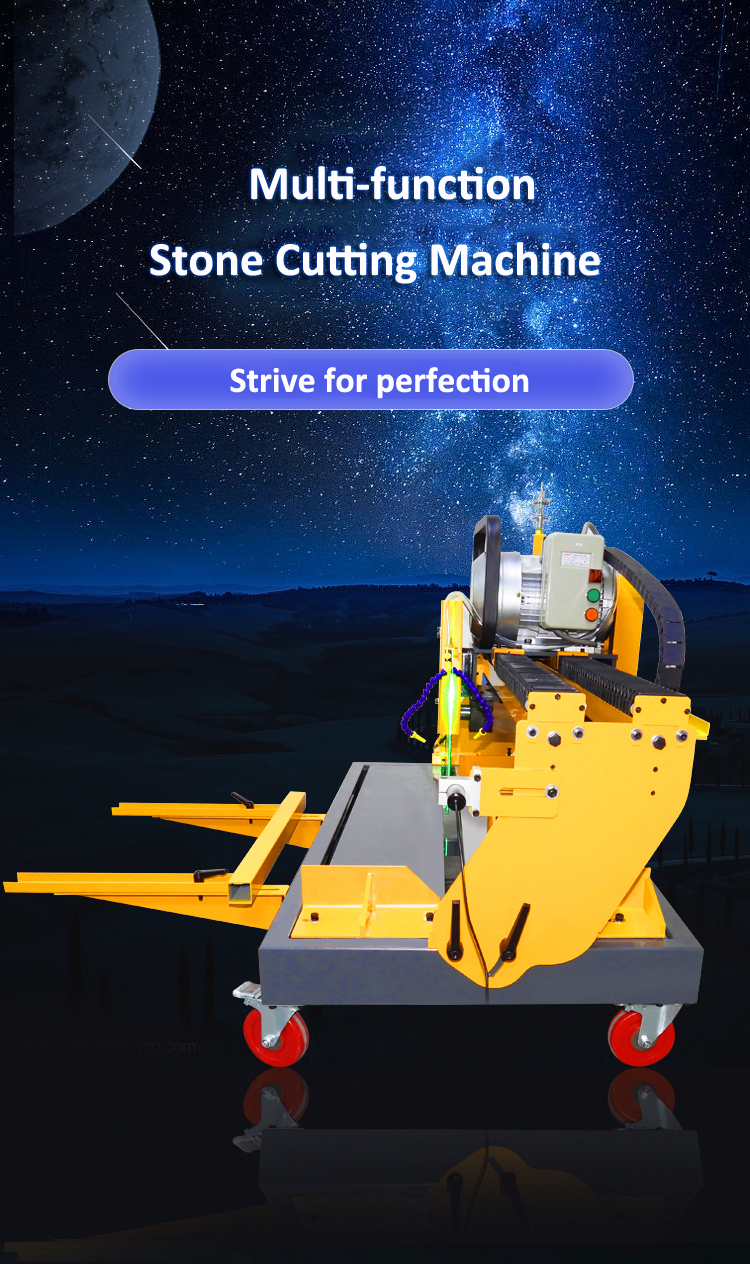

Multi-function Desktop Stone Cutting Machine

Product Features:

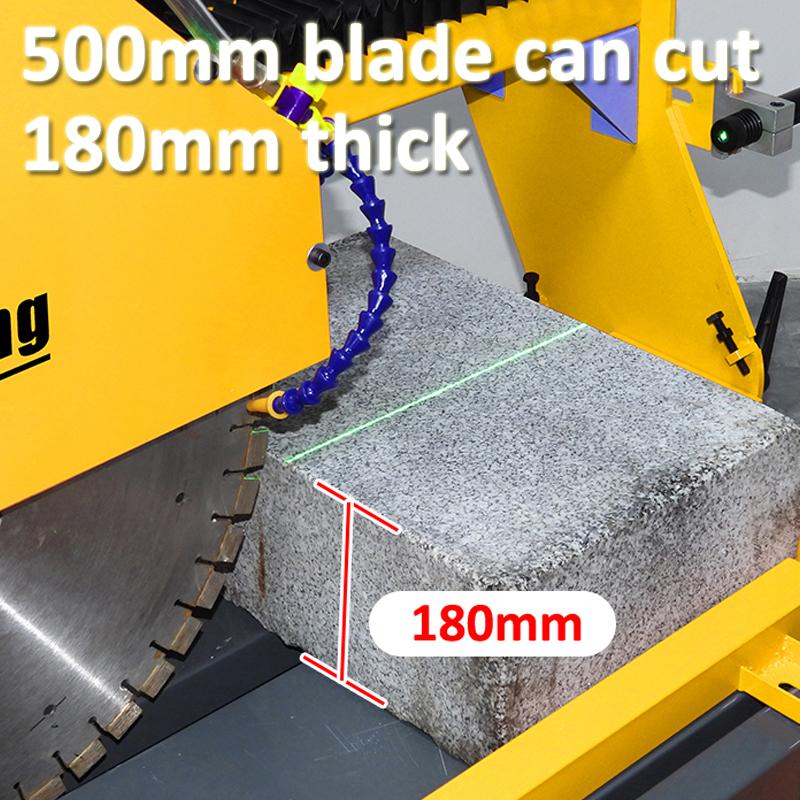

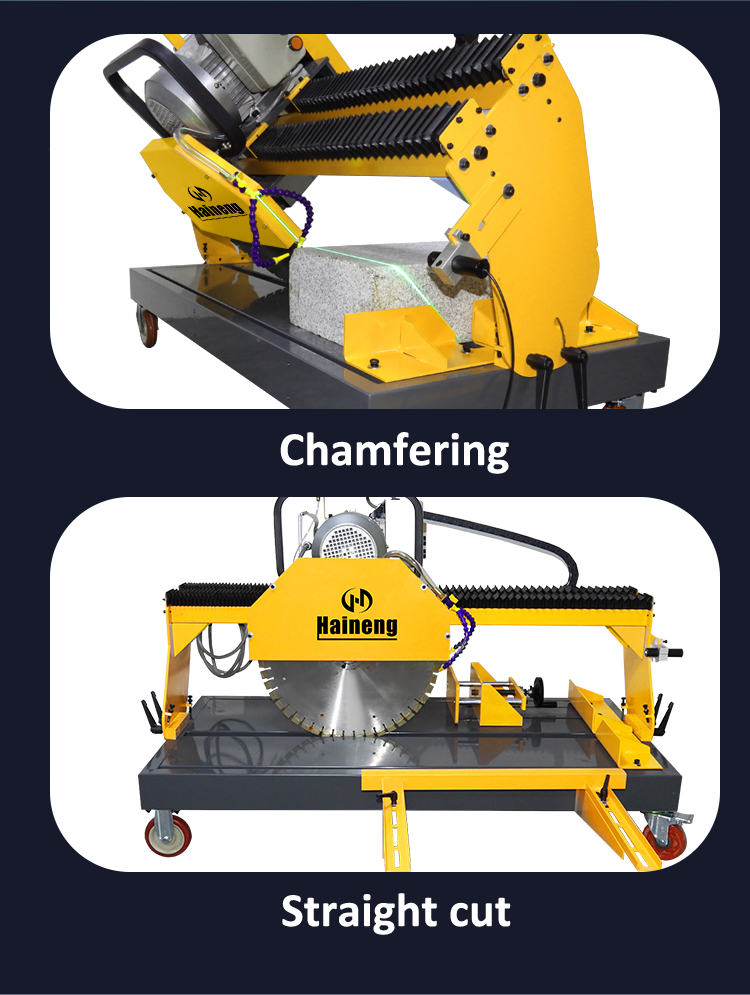

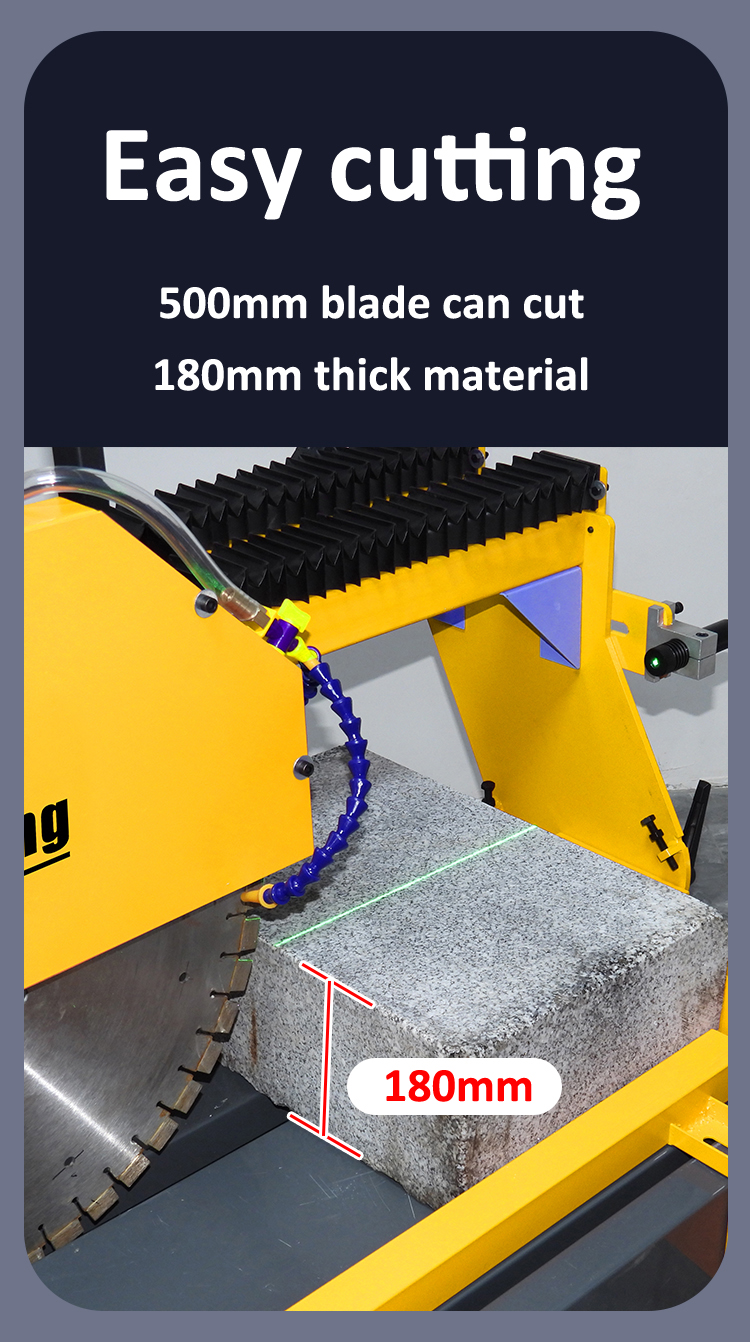

Multifunctional stone cutting machine can chamfer and cut straight. Cutting thick stone, such as curbstone, barstone, refractory bricks, etc. Quickly clamp the stone, 500mm blade can cut 180mm thick material.

Main Feature

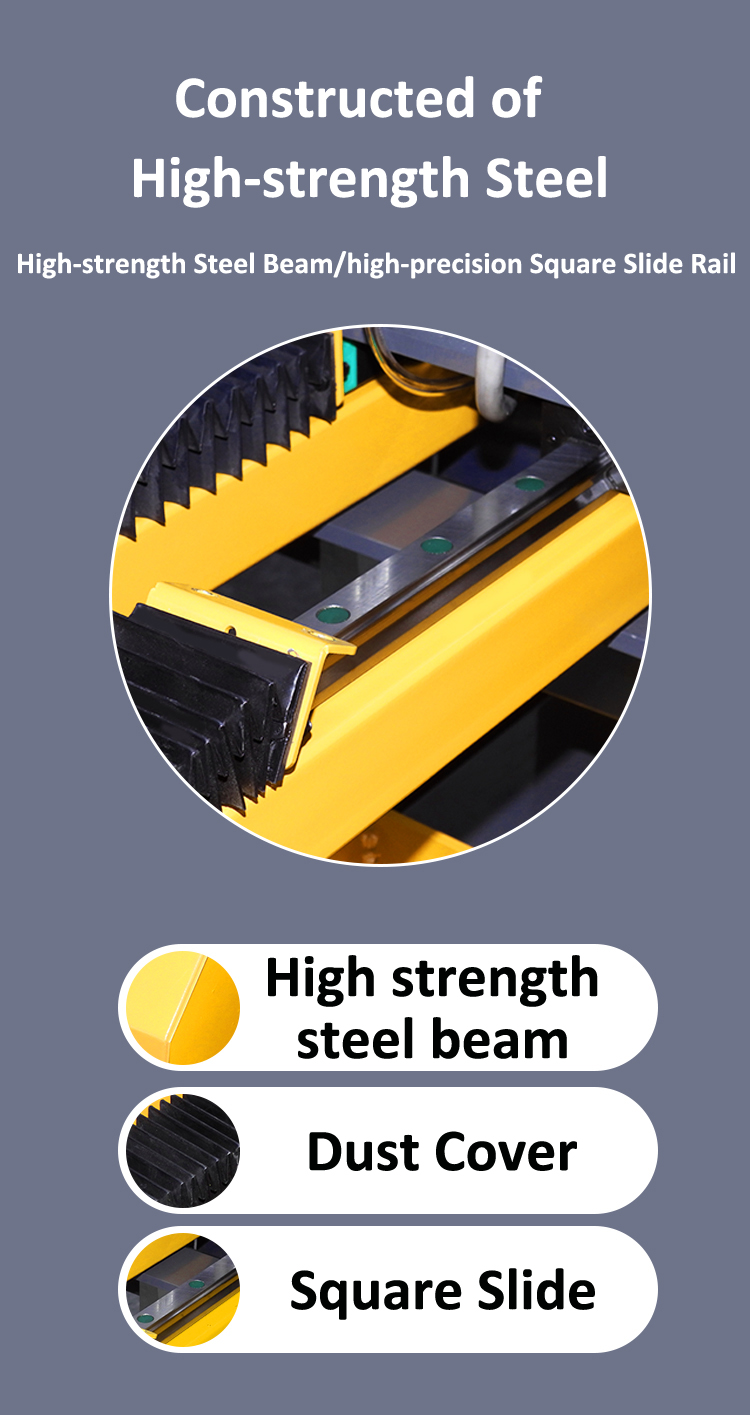

1. High strength steel construction, dust cover square slider.

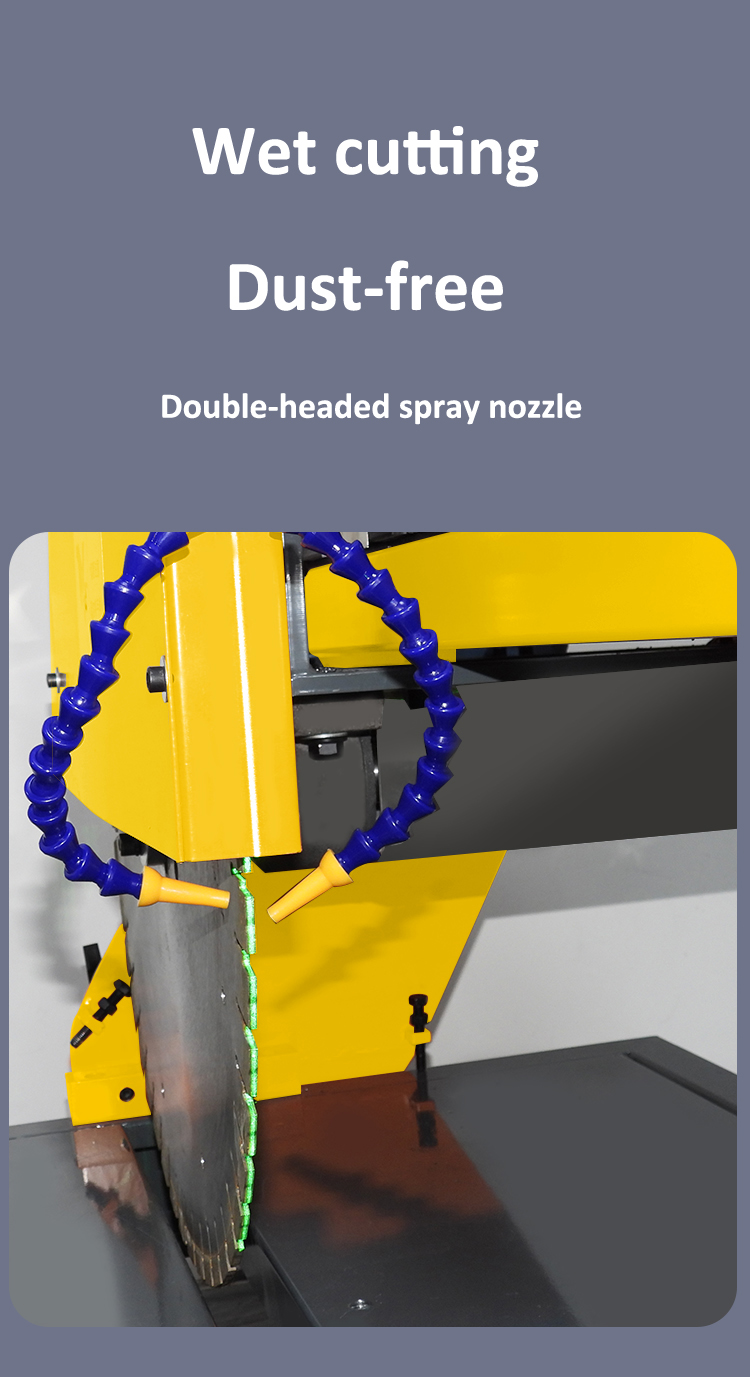

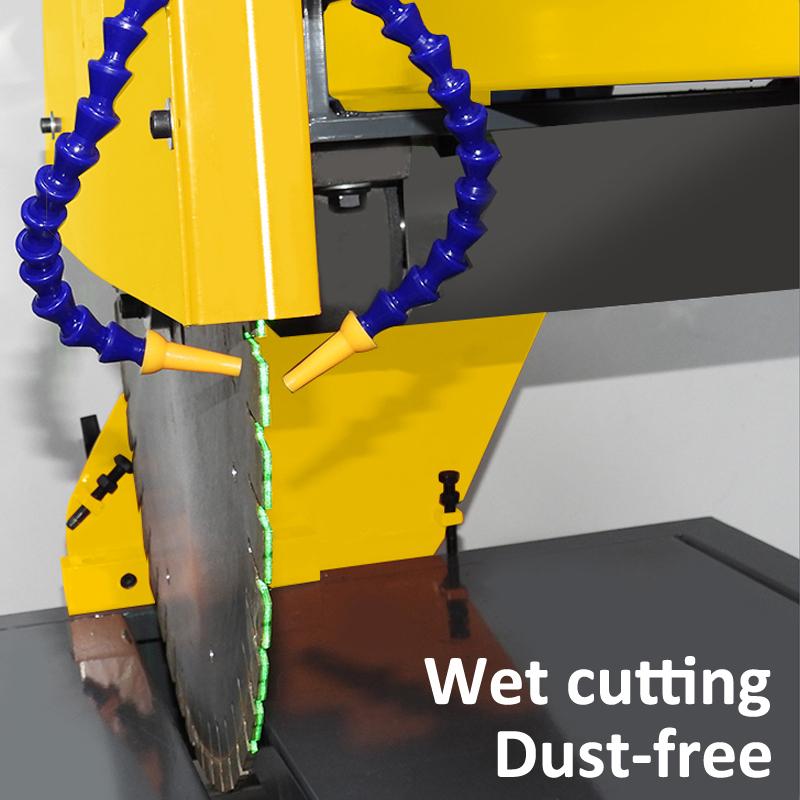

2. Double-head nozzle, wet cutting without dust.

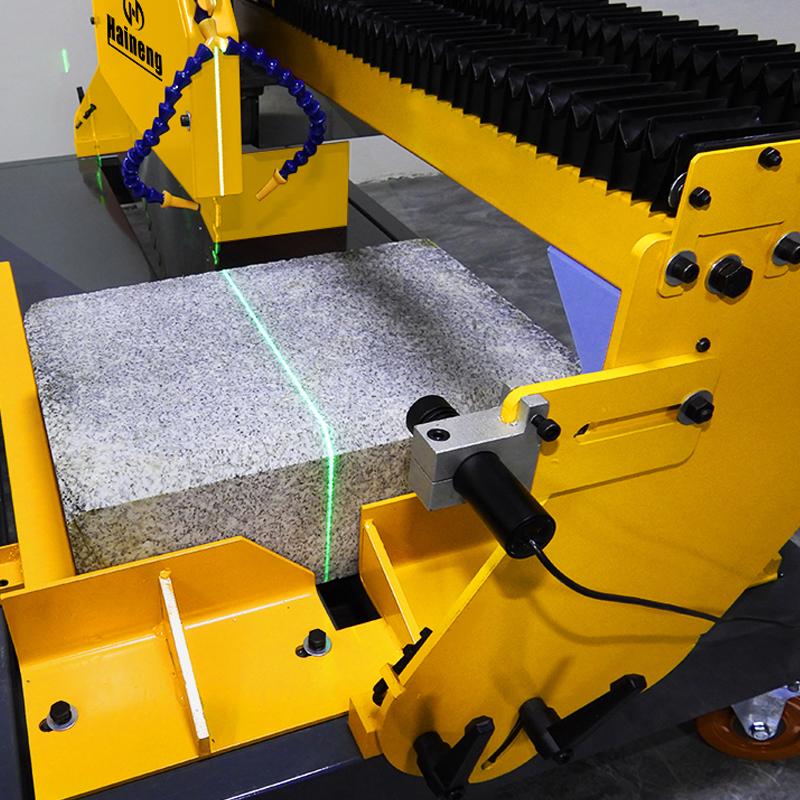

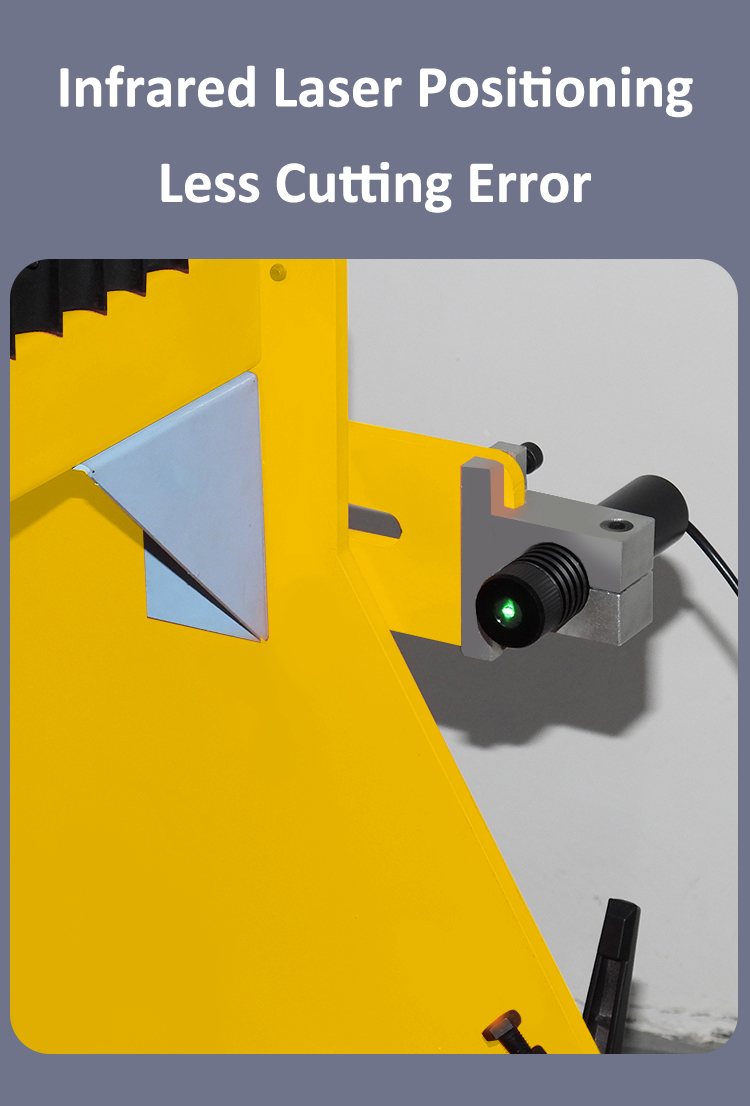

3. Infrared laser positioning, small cutting error.

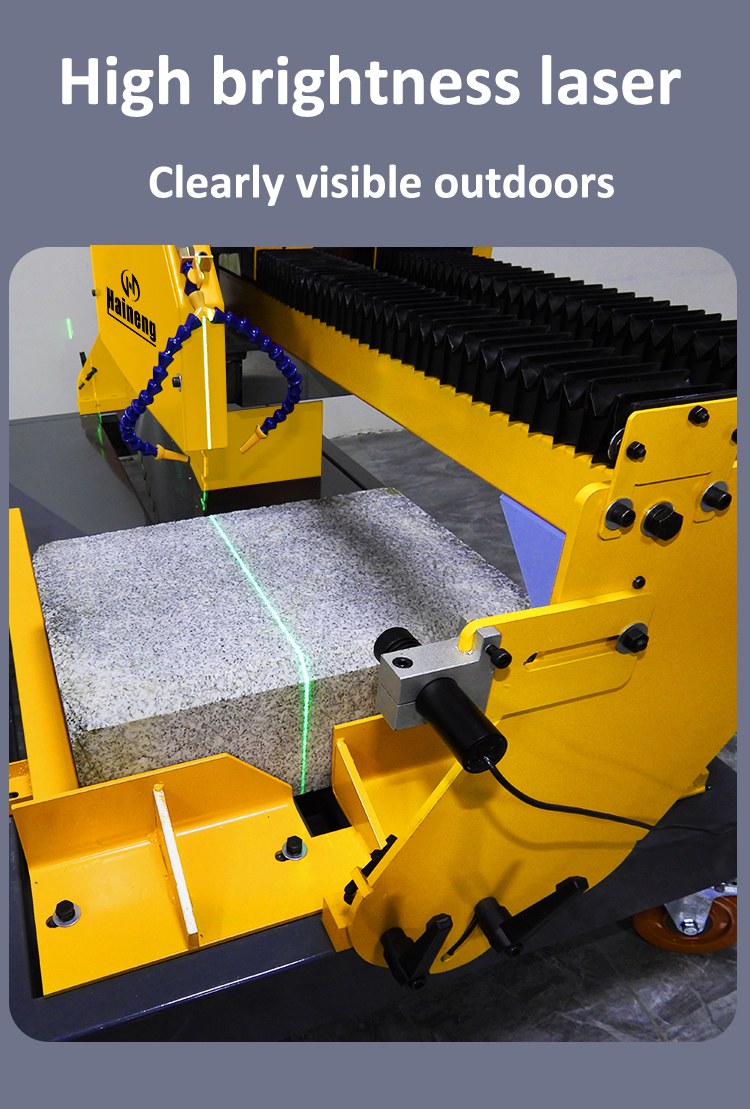

4. High brightness laser, clearly visible outdoors.

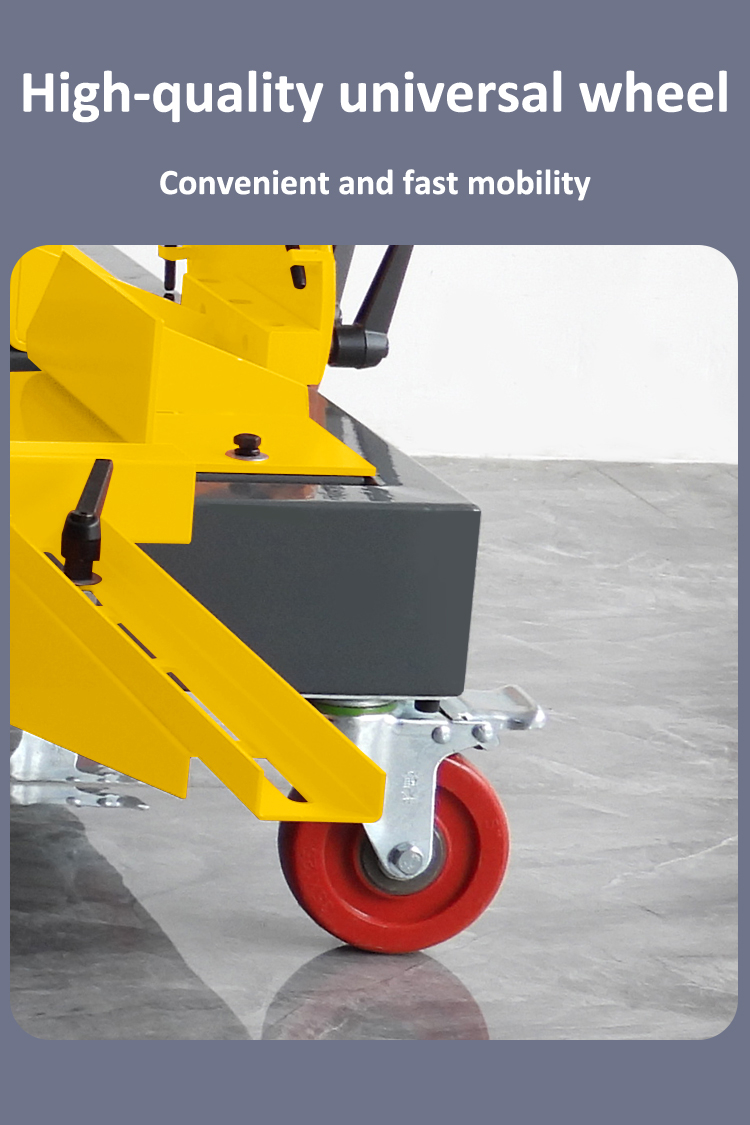

5. High quality universal wheel, easy and fast to move.

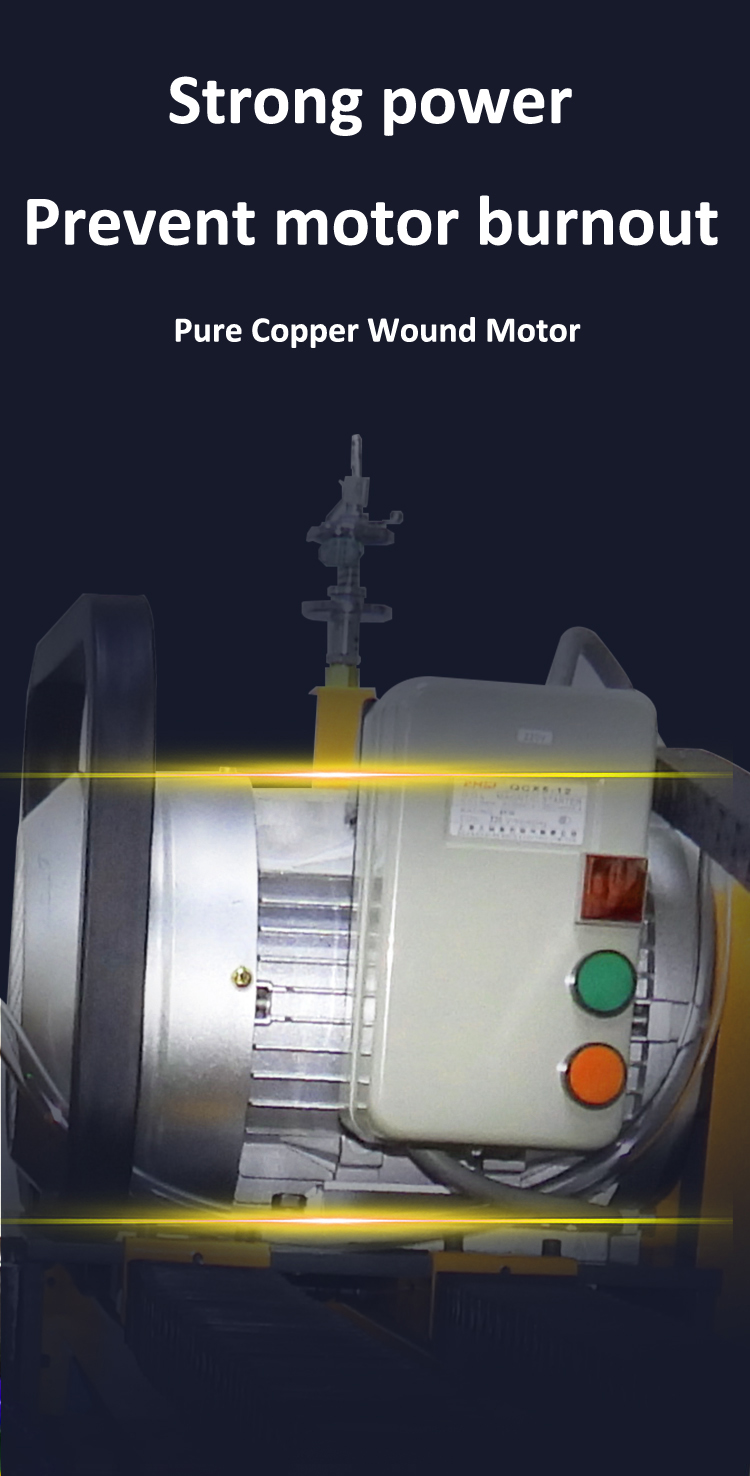

Technical Data

Type	Motor Power	Blade diameter	Cutting length/thickness
SQJ6180	4kw 50hz/220v/380v	500mm	600×180mm
SQJ8180	4kw 50hz/220v/380v	500mm	800×180mm
SQJ10180	4kw 50hz/220v/380v	500mm	1000×180mm
SQJ12180	4kw 50hz/220v/380v	500mm	1200×180mm
SQJ15180	4kw 50hz/220v/380v	500mm	1500×180mm
SQJ6230	5.5kw 50hz/380v	600mm	600×230mm
SQJ8230	5.5kw 50hz/380v	600mm	800×230mm
SQJ10230	5.5kw 50hz/380v	600mm	1000×230mm
SQJ12230	5.5kw 50hz/380v	600mm	1200×230mm
SQJ15230	5.5kw 50hz/380v	600mm	1500×230mm
SQJ6330	7.5kw 50hz/380v	800mm	600×330mm
SQJ8330	7.5kw 50hz/380v	800mm	800×330mm
SQJ10330	7.5kw 50hz/380v	800mm	1000×330mm
SQJ12330	7.5kw 50hz/380v	800mm	1200×330mm
SQJ15330	7.5kw 50hz/380v	800mm	1500×330mm

Processing:

Small Stone Cutting Machine
