Multi-Performance Edge Grinder Machine

This edge grinder is the most efficient and practical combination edge grinding line equipment for stone processing.

Brand:
HAINENG
Item NO.:
DLM3400
Payment:
T/T
Product Origin:
China
Color:
Yellow
Shipping Port:
Xiamen Port
Lead Time：
25 days

Bridge ( Double Beam) CNC Profiling Cutting Machine

The CNC Profiling Machine adopts double beam structure of gantry type. Full servo control, high precision linear track and oil-immersed and dust-proof structure, to ensure equipment accuracy and service life.

Automatic Special Shapes Profiling Cutting Machine

The machine automatically tracks model of curve(straight) line through the fiber optic probe,automatically profiles through diamond circular saws to cut stone with curve(straight) line and craft products,uses inverter to control up-down rising and left-right feeding, adjusts the speed according to the stone material. If choosing rotating worktable, the processing of arc-shaped lines can be done. This machine adopts PLC system, high degree of automation, high precision cutting; using double-blades designing, with high cutting efficiency, high stability, easy-operation to suit for lines, arc-shaped lines, Roman column,etc. Note: Could choose CNC system, replacing the trouble of making a model, cutting effect more automatically and accurately.

Portal Multifunctional Edge Grinder

It is suitable for processing artificial stone, marble, granite and other grinding lines.

Diamond Bead Wire Saw Marble Granite Cutting Machine

CNC diamond wire saw machine adopts CNC control system, man-machine integration operation interface, supplemented by super high precision servo motor drive, lifting is controlled by four independent guide rail, flywheel around walking up and down the track, stable equilibrium.

CNC Stone Profiling Line Cutting Polishing Machine

Intelligent operating system, easy to operate.

Stone Baluster Profiling Machine

This machine adopts microcomputer (numerical control) control, one or three frequency converters for speed regulation, bridge structure, synchronous lifting and left and right walking, convenient operation, practicality and high efficiency. It is specially used for processing railings, columns, balusters, column caps, blocking stones and other products.

Stone Slab Stylobate Profiling Cutting Machine

This machine is designed based on the structural principle of a vertical lathe. It is mainly used to process various stone column caps, column bases, balls, etc. It adopts microcomputer automatic copying, lifting and lowering to adjust the cutting characteristics, which makes up for the high consumption of manual processing. , The defect of poor accuracy, advanced technology, reduce the processing cost.

Automatic Second Change Grinding Head Line Stone Profiling Cutting Machine

loading and unloading, on the wheel, really labor-saving

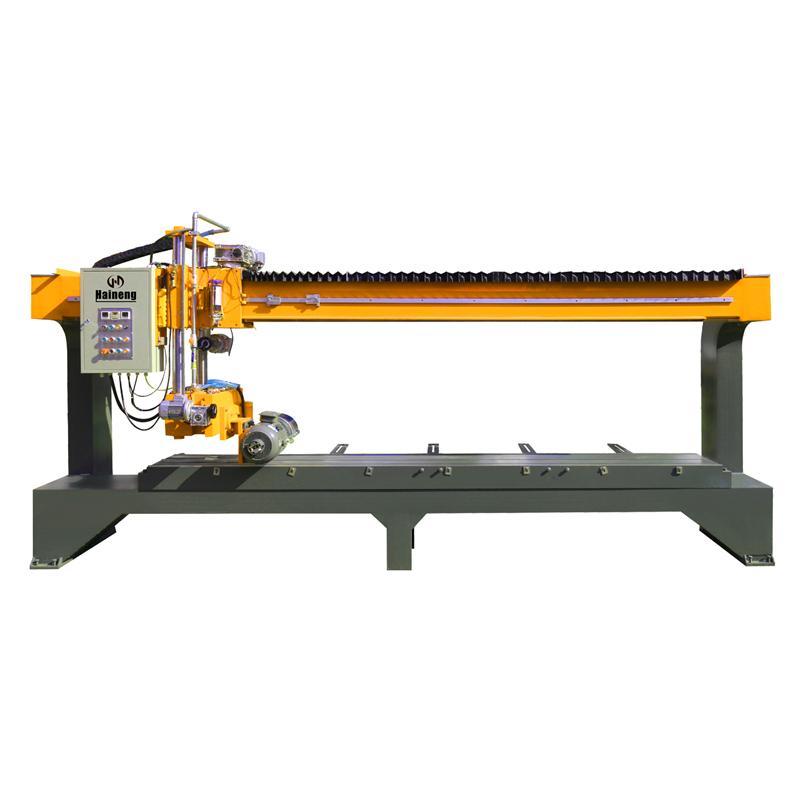

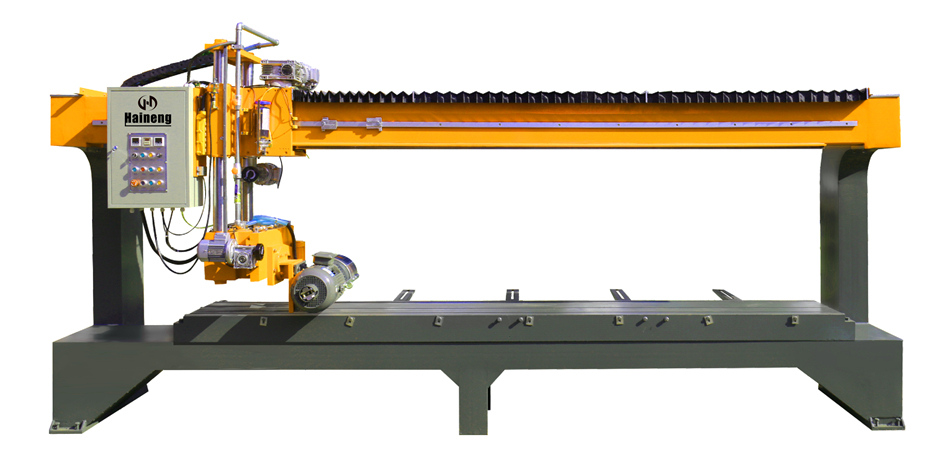

Multi-performance edge grinder
Type	unit	DLM3400
Grinding disk diameter	mm	Φ160
Max. cutting length	mm	3400
Max. cutting width	mm	300
Max. cutting thickness	mm	150
Power of main motor	kw	7.5
Advancing speed	m/min	0.3-6.5
Grinding wheel speed	r/min	2900
Total power	kw	9.18
Water consumption	m³/h	1.7
Dimension (L×W×H)	mm	4900×1200×2300
Total weight	kg	2800
