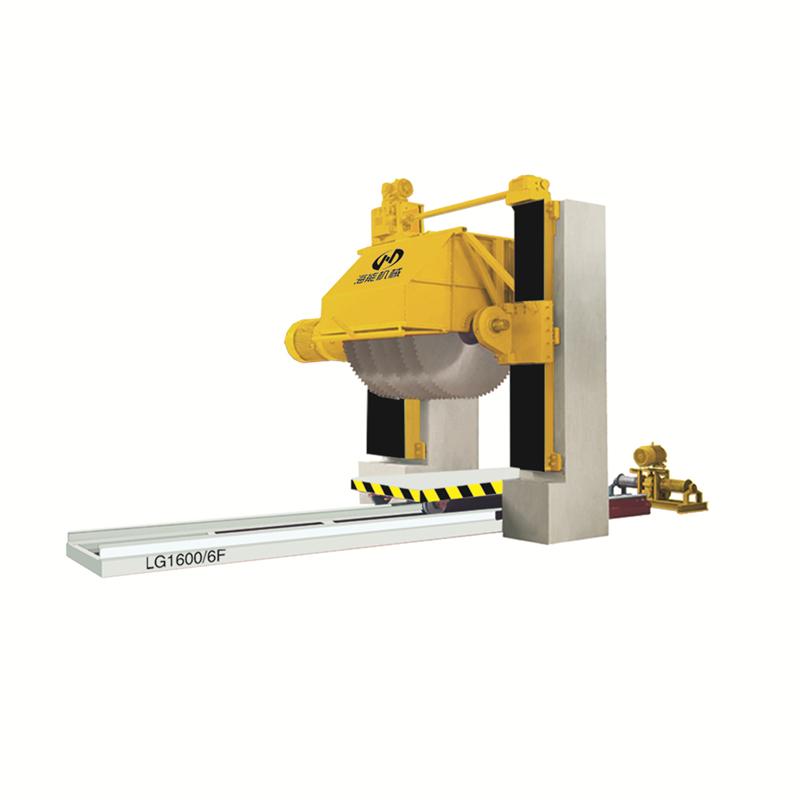

SMT High Efficiency Multi-Saw Stone Cutter

The machine has a high degree of automation, stable overall processing performance, high efficiency and low consumption. It is the most ideal stone machine for cutting strip stones, curb stones and monument stones.

  • Item NO.:

    LG1600/6Y/6F
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    Yellow & Gray
  • Shipping Port:

    Xiamen port
  • Lead Time:

    15 days
Product Detail

Product Introduction


High Efficiency Multi-Slice Stone Cutter is mainly used for processing large quantities of standard stone materials. It is the most ideal stone machine tool for cutting block stone and pavement stone with different thickness of saw blade partition plate.

This machine adopts multi-chip stone cutting machine adopts gantry structure and split structure, users only need to choose different structure models flexibly according to their own site conditions, the machine action is controlled by electric control box, high degree of automation, stable overall processing performance, high precision, high efficiency, low energy consumption characteristics, deeply favored by users.

Longmen High Efficiency Multi-Slice Stone Cutter

Longmen High Efficiency Multi-Slice Stone Cutter

Technical Parameters


 High Efficiency Multi-Slice Stone Cutter

Type

unit

LG1600/6Y(Integrated)

LG1600/6F(Separate type)

Blade diameter

mm

Φ1400-Φ1600

Φ1400-Φ1600

Max. cutting length

mm

2000

2000

Max. cutting width

mm

1100

1100

Max. cutting thickness

mm

630

630

Main motor power

kw

45

45

Total power

kw

48.9

48.9

Water consumption

m³/h

5.2

5.2

Dimension  (L×W×H)

mm

8000×2900×3050

8000×2900×3050

Total weight

kg

7600

3600

SMT High Efficiency Multi-Saw Stone Cutter
