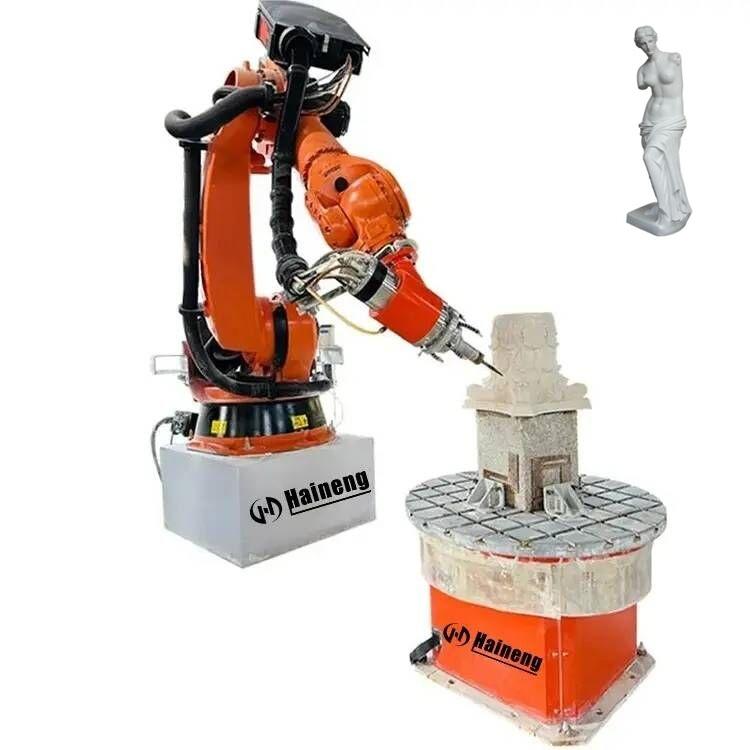

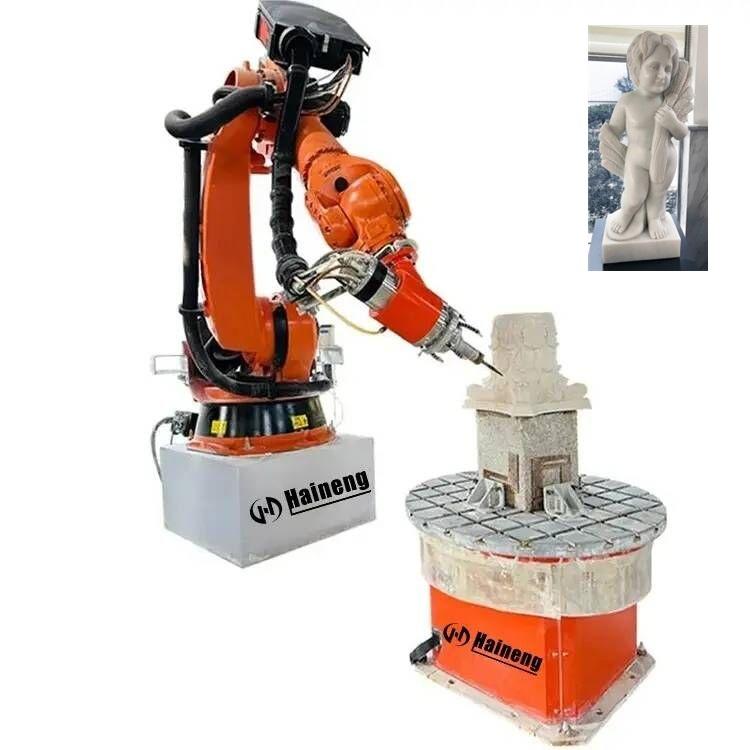

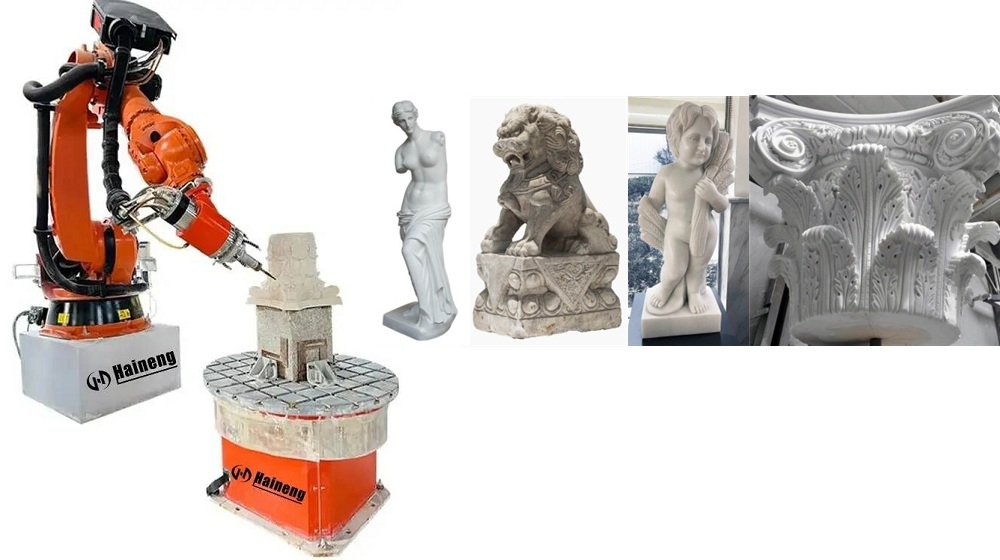

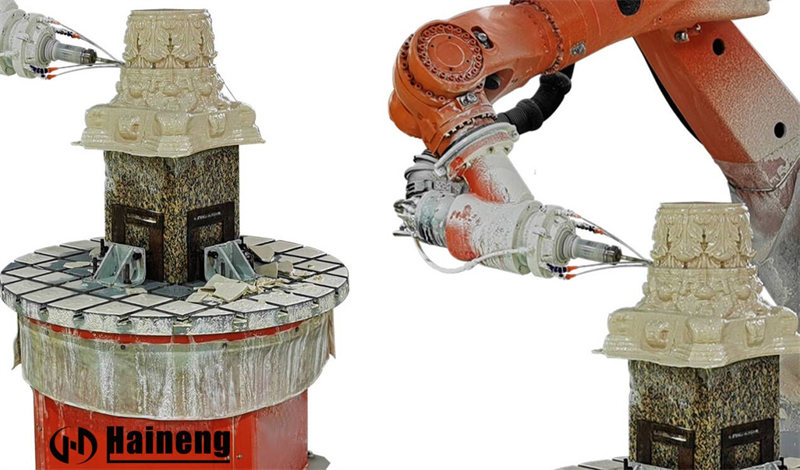

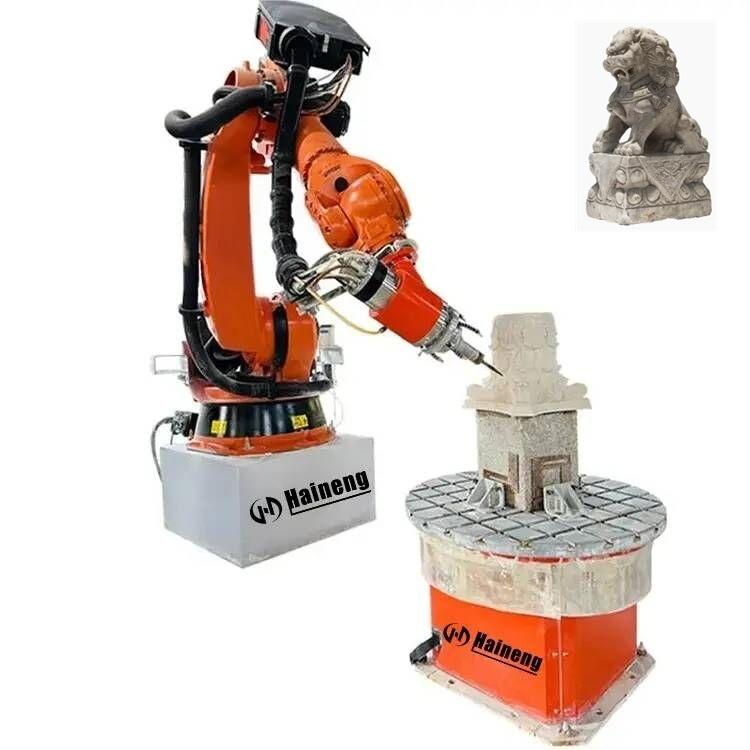

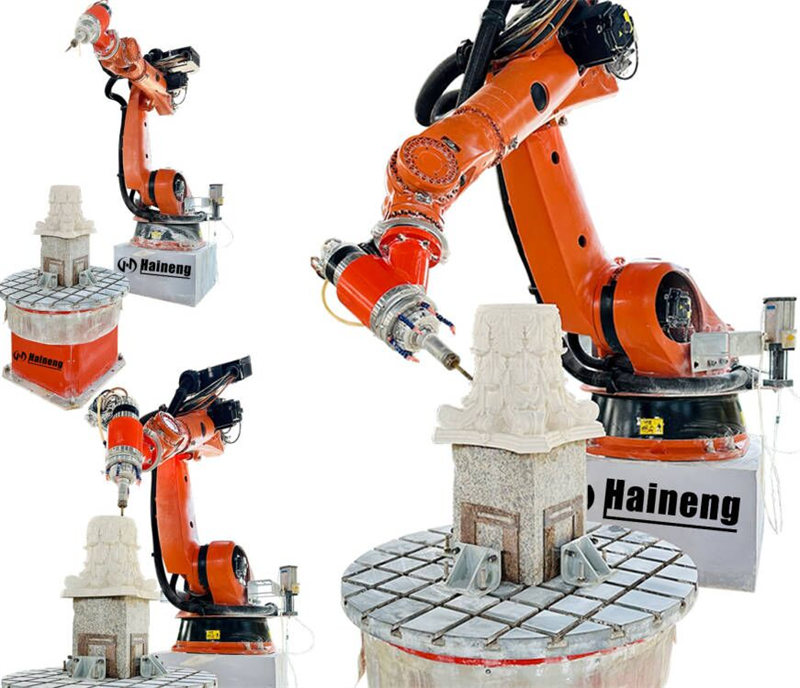

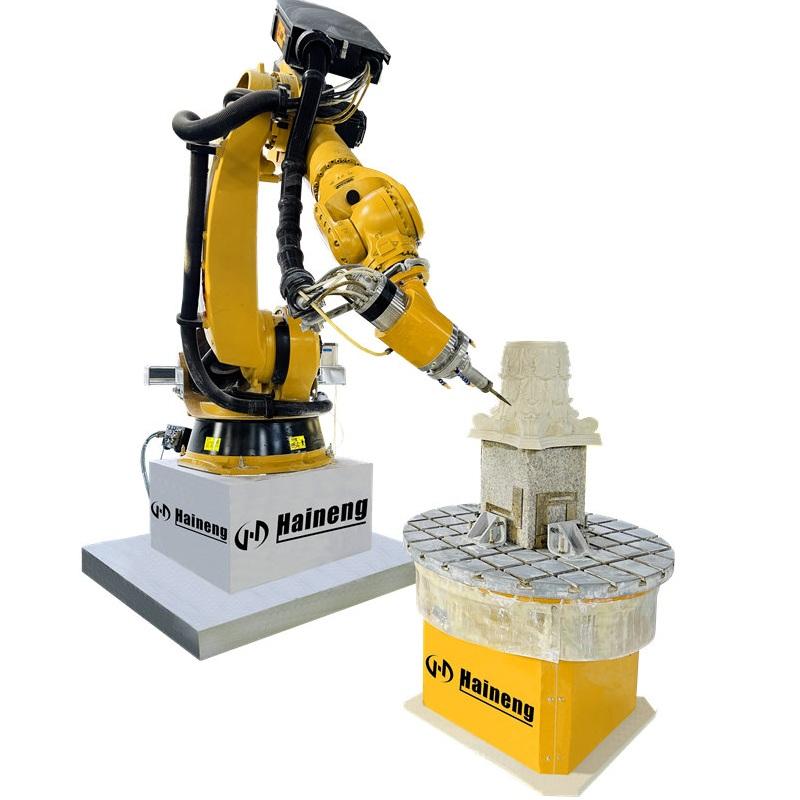

Automatic 3D 7 Axis CNC Kuka Robot Arm Sculpture Stone Engraving Machine

Light-weight
only 1.5kg in weight, safe for user and other devices
High flexibility
7 degrees of freedom ensures wide working range
Easy teaching
able to be taught by hand

Brand:
HAINENG
Item NO.:
CS - KR210 R2700
Order(MOQ):
1
Payment:
T/T
Product Origin:
China
Color:
Yellow
Shipping Port:
Xiamen Port
Lead Time：
15 Days

Classic Single-Head Engraving Machine

Our laser cutting & engraving machine adopts the DSP control technology，it does not have to be connected with computer to work. This machine characterized with automatic memory, automatic management, it is quicker, steadier, and more accurate.

Classical Double Head Stone Versatile Engraving Machine

CS-2030-2 stone carving machine is equipped with CNC control system and two working heads, it is a multifunctional machine. Mainly used for carving various stone materials, such as marble, granite, quartz, sandstone or artificial stone or ceramics, glass, etc.

High Efficient Stable Classic Three Head Stone Engraving Machine

Aviation quality, the surface is made of aluminum oxide profile table tops, thickened PVC boards, and the platform's bearing capacity is enhanced. Steel tube bed, low center of gravity, strong bearing capacity, stable operation and long service life.

High Efficient Classic Four-Head Engraving Machine

The latest stone cutting system, all three axes are driven by AC servo motors, suitable for building materials, ancient buildings, tombstones, tea trays, etc.

Split Type Special Shaped Engraving Machine

The split-type special-shaped engraving machine adopts the latest stone cutting system, which can cut stone with high efficiency. It has various models, large size and internal size, easy loading and unloading, and is suitable for various large-scale products such as building materials.

4 Axis CNC Multifunctional Double-Head Engraving Machine

The four-axis CNC multi-function double-head engraving machine is equipped with double milling cutters and double saw blades, which can perform profiling cutting more effectively and improve the engraving work in the next step.

Single Head Integrated Dragon Column Engraving Machine

The single-head integrated dragon column engraving machine first roughs the saw blade, and then engraves, which greatly improves the efficiency, and can carry large workpieces of more than 5 tons.

Double Head Integrated Dragon Column Engraving Machine

Dragon column engraving machines usually have very high precision and positioning accuracy and can achieve complex engraving and cutting tasks, making them very useful in the fields of manufacturing and process processing.

Technical parameters
Equipment model	CS -KR210R2700
Payloads	210Kg Payload at maximum reach
Maximum arm span	2700mm
Maximum processing size	φ2000mmx2500mm stone
Rotary table	1000mmdiameter Infinite rotation
Spindle power	15KW Special positioning stone spindle
Maximum spindle speed	18500RPM
Number of axis	7 axis Fully automatic
Axis 1speed	±185° 86°/s
Axis 2speed	0°~ - 146° 84°/s
Axis 3speed	1 55°~ - 1 19° 84°/s
Axis 4speed	±350° 100°/s
Axis 5speed	±1 25° 1 10°/s
Axis 6speed	±350° 184°/s
Axis 7speed	Infinite rotation 84°/s
Repeat position deviation	＜ ±0 .06m m
Support blades	Saw blade rough/fine engraving carving knife/end milling cutter disc/grinding disc (special needs to be customized)
Automatic blades	Can support (optional)
Protection type	High waterproof and dustproof (standard protective raincoat for manipulator)
Offline software	S prut CAM latest version
