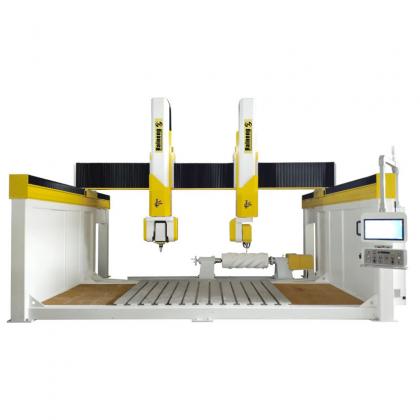

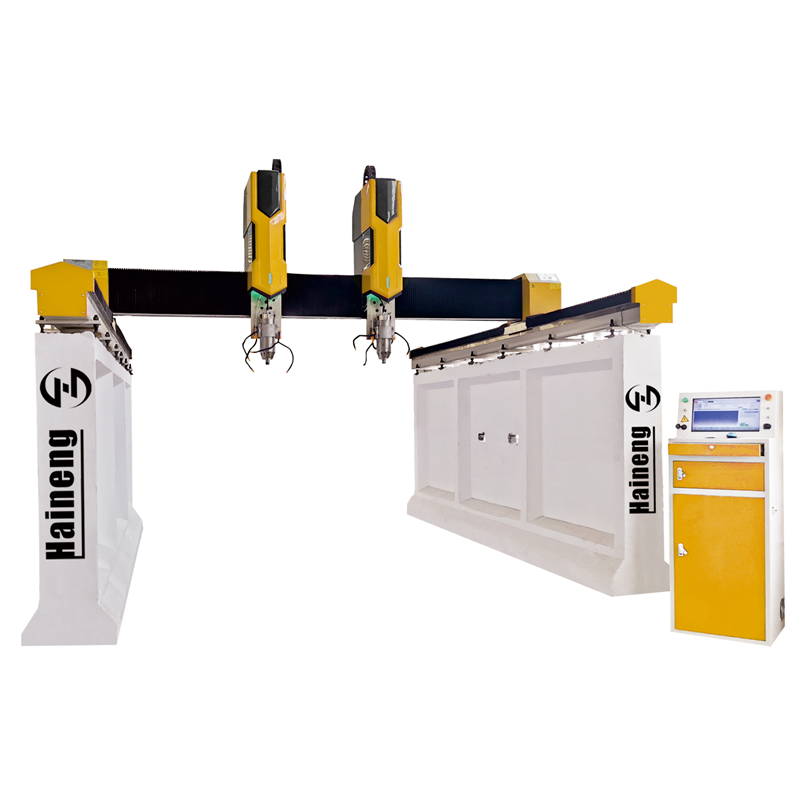

Split Type Special Shaped Stone Engraving Machine

The split-type special-shaped engraving machine adopts the latest stone cutting system, which can cut stone with high efficiency. It has various models, large size and internal size, easy loading and unloading, cnc stone engraving machine is suitable for various large-scale products such as building materials.

Brand:
HAINENG
Item NO.:
YXDK-FT3040-2
Order(MOQ):
1
Payment:
T/T
Product Origin:
China
Color:
Yellow
Shipping Port:
Xiamen Port
Lead Time：
15 Days

6 Axis 3D Stone Processing Machining Center

6 Axis cnc machining center is compatible with the conventional plate cutting function profiling processing, waterscape, garden shaped processing, high-end villa Roman column head,Fried Dough Twists column and various kinds of stone processing with complex shapes.

Automatic 3D 7 Axis CNC Kuka Robot Arm Sculpture Stone Engraving Machine

Kuka Industrial Robot with: Light-weight only 1.5kg in weight, safe for user and other devices High flexibility 7 degrees of freedom ensures wide working range Easy teaching able to be taught by hand

Classic Single-Head CNC Engraving Cutting Machine

Our laser cutting & engraving machine adopts the DSP control technology，it does not have to be connected with computer to work. This machine characterized with automatic memory, automatic management, it is quicker, steadier, and more accurate.

Classical Double Head Stone Versatile Engraving Machine

JDK2030-2 stone carving machine is equipped with CNC control system and two working heads, it is a multifunctional machine. Mainly used for carving various stone materials, such as marble, granite, quartz, sandstone or artificial stone or ceramics, glass, etc.

High Efficient Stable Classic Three Head Stone Engraving Machine

Three Head Stone Engraving Machine adopt NcStudio CNC control system ,large color screen display, easy and simple to operate.

High Efficient Classic Four-Head Stone Engraving Machine

Four-Head Stone Engraving Machine wth the latest stone cutting system, all three axes are driven by AC servo motors, suitable for building materials, ancient buildings, tombstones, tea trays, etc.

4 Axis CNC Multifunctional Double-Head Stone Engraving Machine

The 4 axis CNC multi-function double-head engraving machine is equipped with double milling cutters and double saw blades, which can perform profiling cutting more effectively and improve the engraving work in the next step.

Single Head Stone CNC Router Dragon Column Engraving Machine

The single-head integrated dragon column engraving machine first roughs the saw blade, and then engraves, which greatly improves the efficiency, and can carry large workpieces of more than 5 tons.

Technical parameters
Equipment model	YXDK-FT3040-2
Dimensions	4200x 5000x 2800mm
Processing size	X: 3000mm Y: 4000mm Z: 500mm
Feed height	≤2000/ 1400mm (Customizable)
Spindle power	5.5KW *2
Inverter	5.5KW *2
Drive system	Servo
Control system	Weihong Ncstudio NC60 series
Ball Screw System	2505, TBI-Taiwan, Ball screw
Rack	Precision helical gear drive-Taiwan Brand
Travelling rail	X/Y 30, Z 25 linear guide rail
Ball Screw System	2505, TBI-Taiwan, Ball screw
Motor	AC SERVO-Fully servo
Cooling System	Water-cooling
Spindle speed	18000-24000 rpm
Lubrication system	Automatic oil filling system
Dust protection	Fully enclosed
