Brand:
HAINENGItem NO.:
DDQ600S-1/DDQ800S-1/DDQ600D-2/DDQ800D-2Order(MOQ):
1Payment:
T/TProduct Origin:
ChinaColor:
YellowShipping Port:
Xiamen PortLead Time:

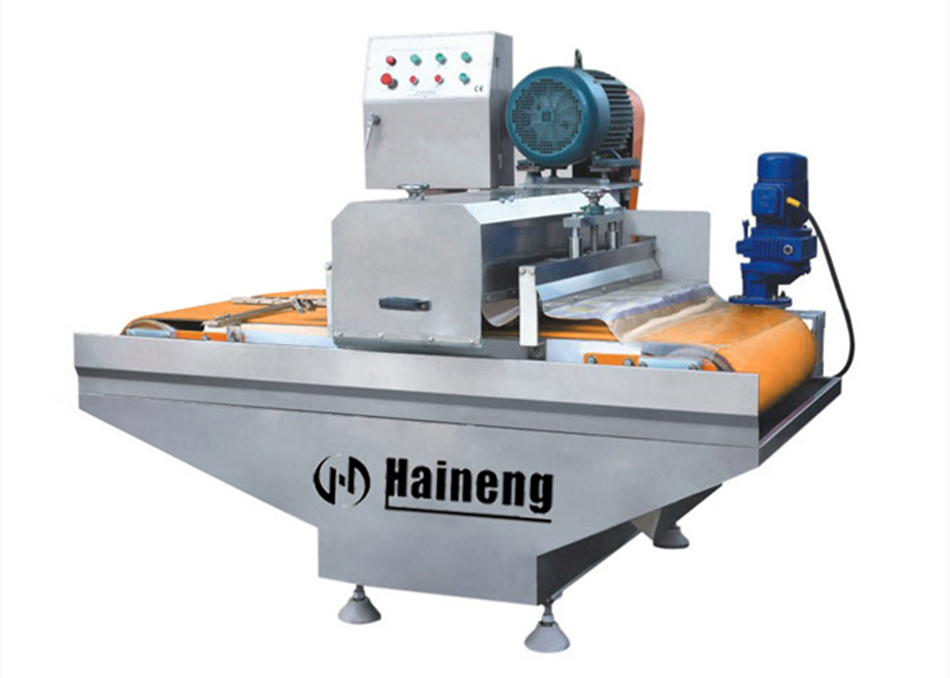

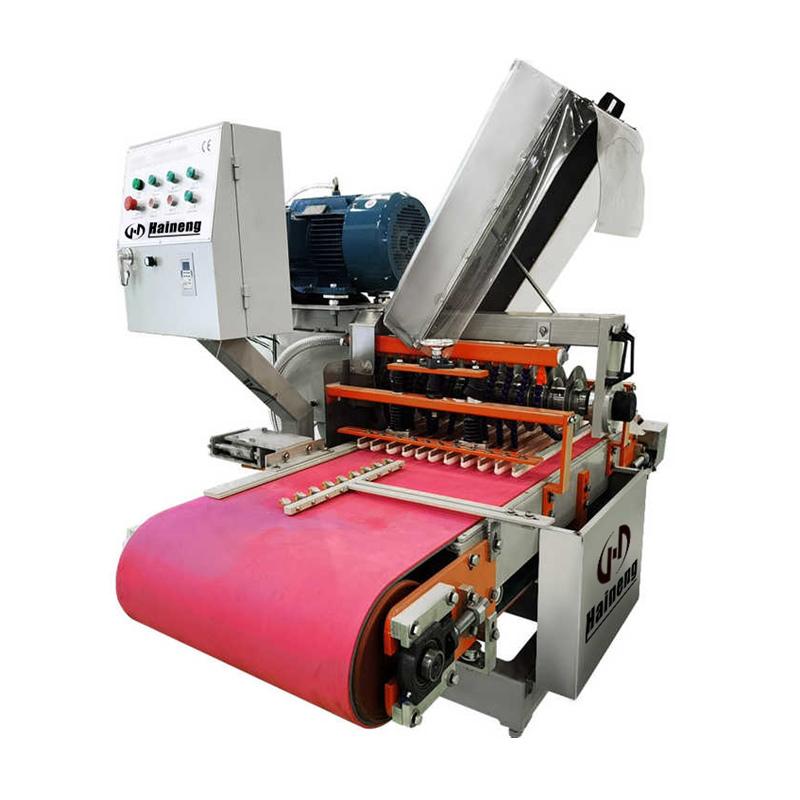

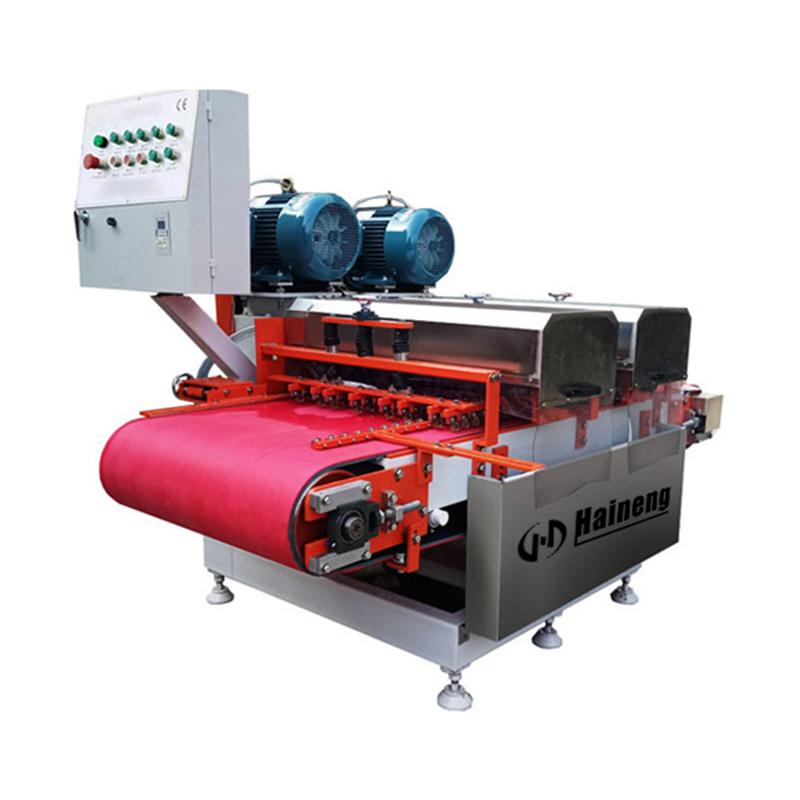

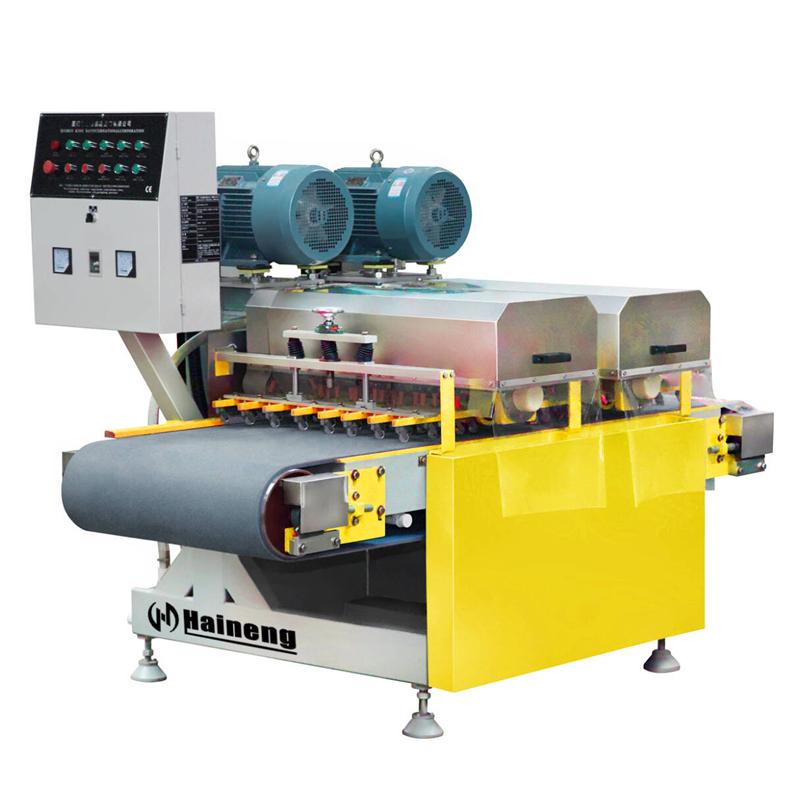

30 DaysAutomatic Continuous Multi-blades Cutting Machine
This Tile Cutting Machine is suitable for cutting polished tiles, ceramic tiles into high level mosaic with different size.
The Min cut size can be 10mmx10mm , and any shapes as strip tile, lozenge or hexagon etc.
And the face chamfer can be finished at the same time, without any extra processing manually.
With stable mechanical properties, it could press the cutting pieces well when cutting mosaic for small size, so that keep the small cutting pieces won’t fly out ,with high efficiency and good quality.
Performance Characteristics
* Continous cutting
* Cutting with multi blades, cut into multiple pieces at one time.
* Equipped with automatic pressing plate, can process 10*10 mosaics.
* Maximum working width 600 / 800mm, cutting width adjustment from 20mm to 600 / 800mm.
Main technical parameter:
|
Model |
|
DDQ600S-1 |
DDQ800S-1 |
DDQ600D-2 |
DDQ800D-2 |
|
Quality of shaft |
pc |
1 |
2 |
||
|
Dia. of blade |
mm |
180-300 |
180-300 |
||
|
Max Cutting thickness |
mm |
50 |
50 |
||
|
Max Process width |
mm |
600 |
800 |
600 |
800 |
|
Speed of conveyor belt |
m/min |
0.1-4 |
0.1-4 |
||
|
Main power |
kw |
15 |
15*2 |
||
|
Gross power |
kw |
16.65 |
32.6 |
||
|
Dimensions(Lx W x H) |
mm |
2000x1600x1700 |
2000x1800x1700 |
2500*2000*1700 |
2500*2200*1700 |
|
Gross weight |
kg |
≈1000 |
≈1100 |
≈1800 |
≈1900 |

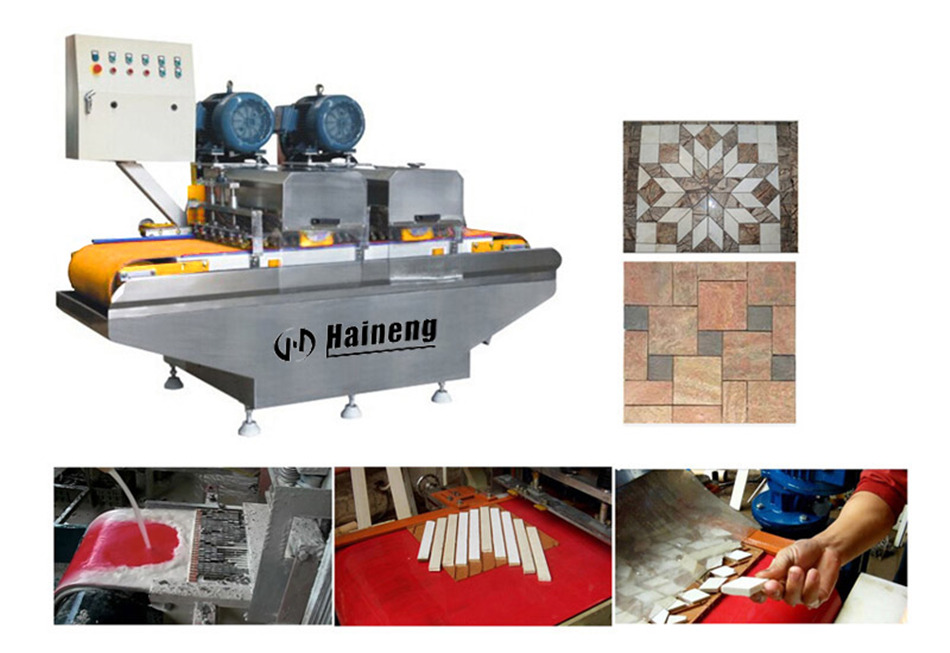

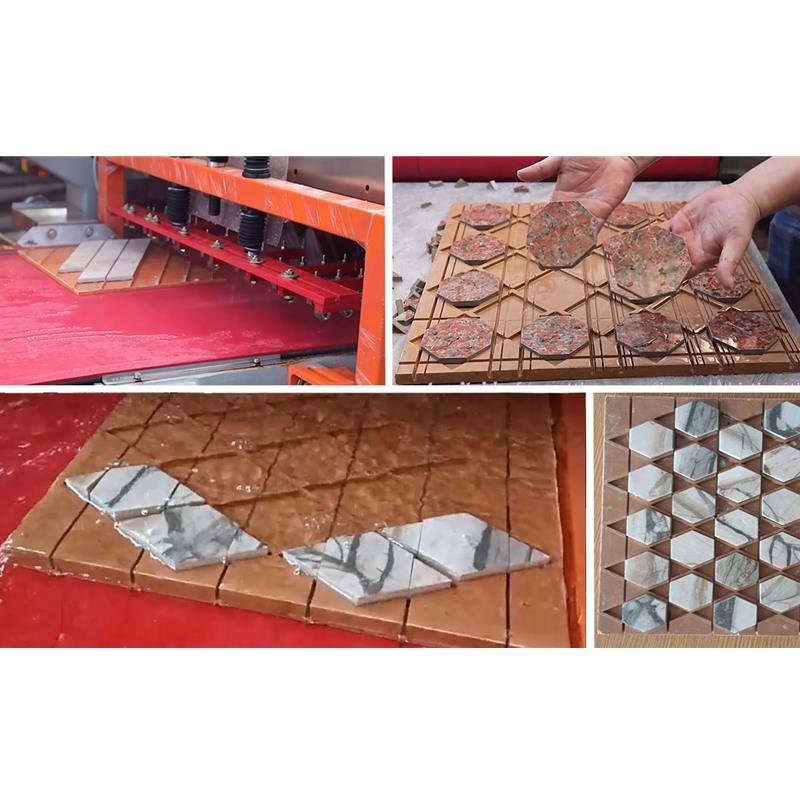

Processing

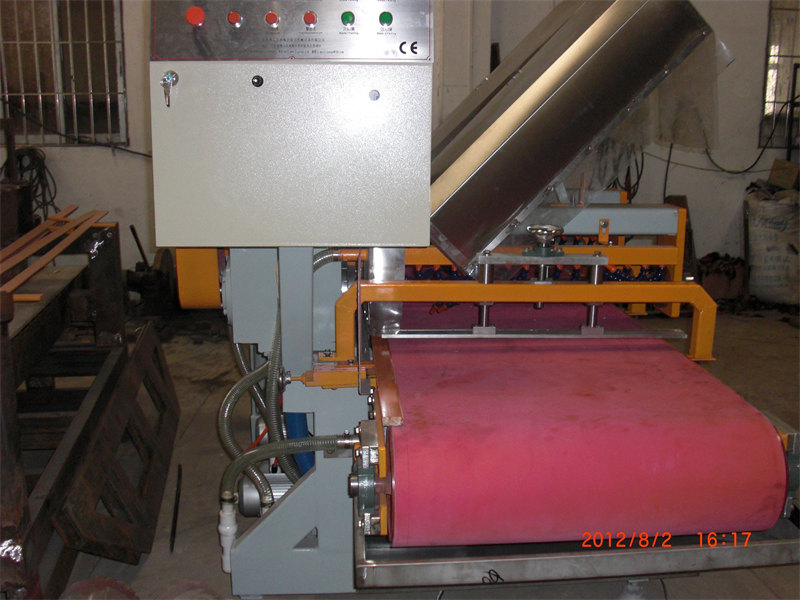

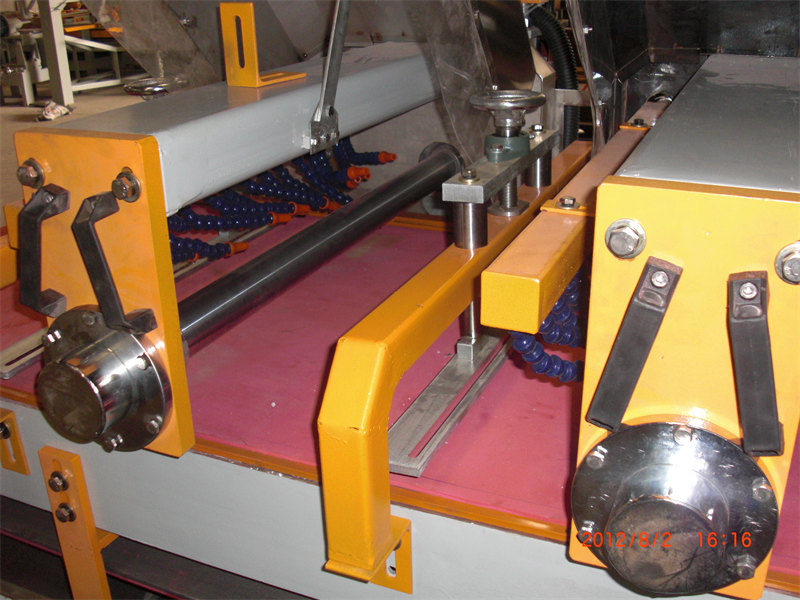

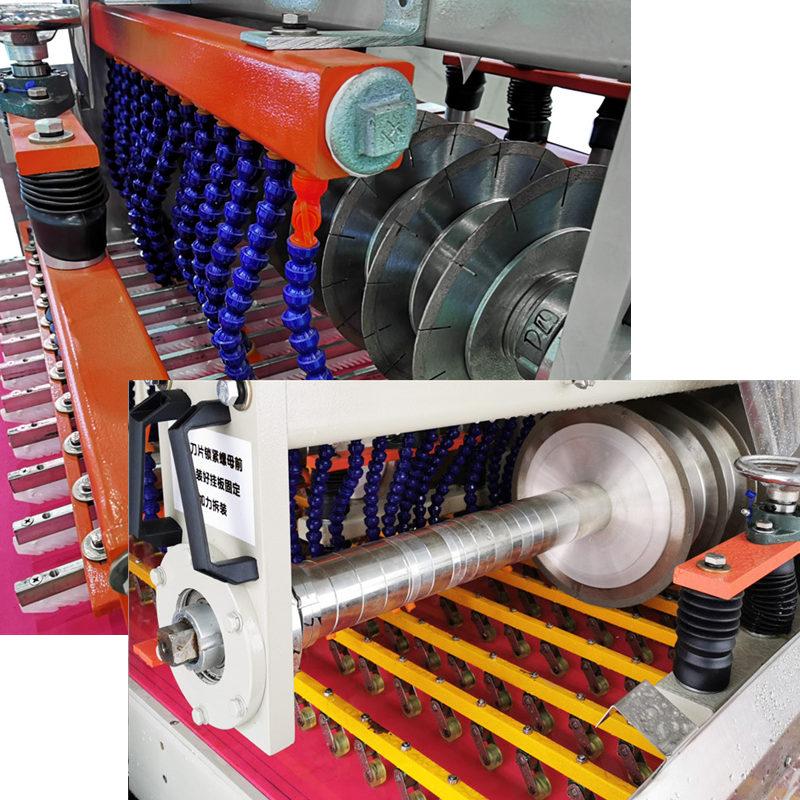

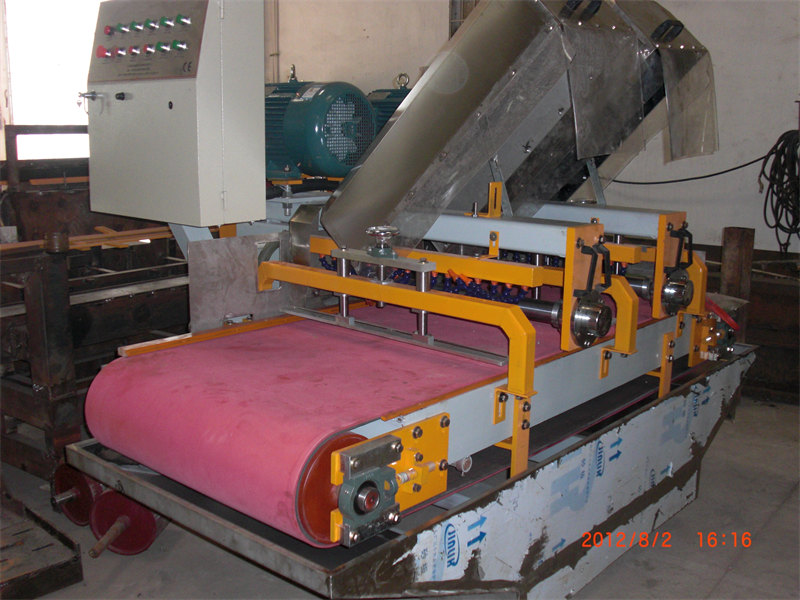

Machine details
