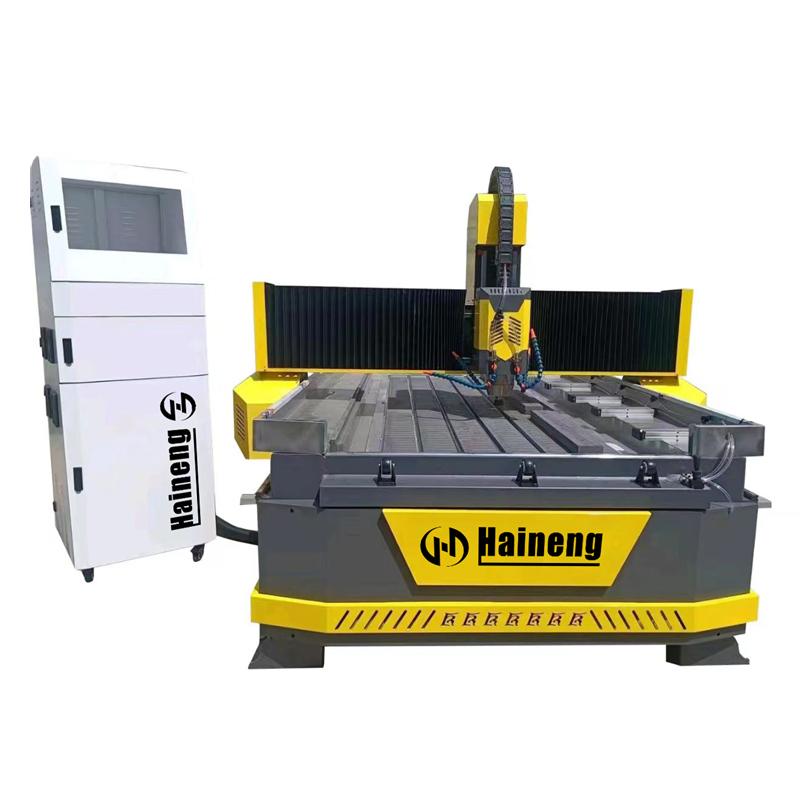

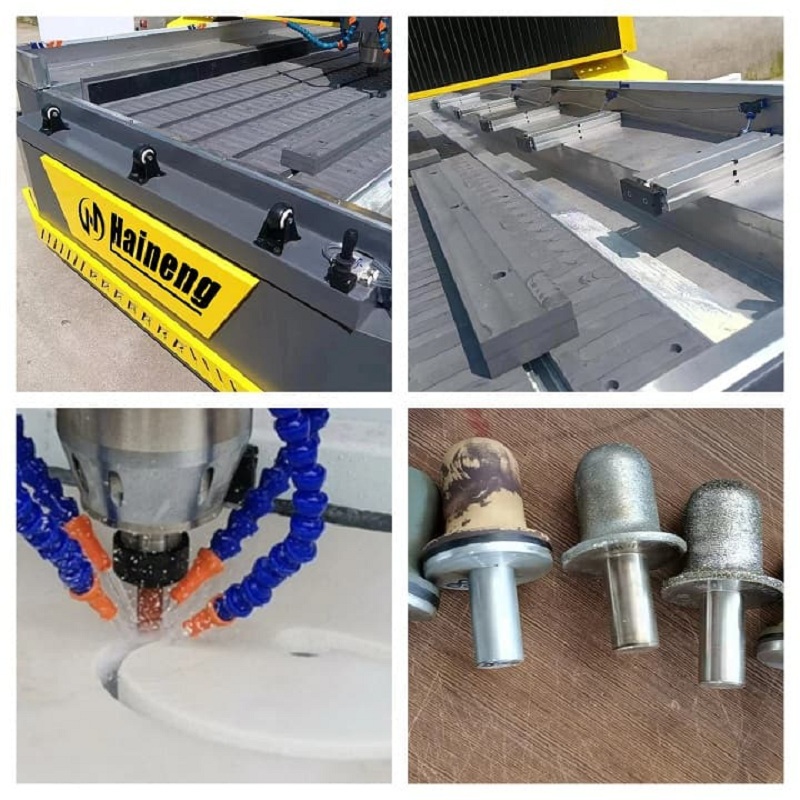

Automatic Small Stone CNC Machine

This powerful and robust CNC machine is capable of cutting and engraving stone, granite and marble etc.. Perfect for stonemasons or any industry looking to process stone-based products.

Brand:
HAINENG
Item NO.:
SZX-1325
Order(MOQ):
1
Payment:
T/T
Product Origin:
China
Color:
Yellow
Shipping Port:
xiamen Port
Lead Time：
15 Days

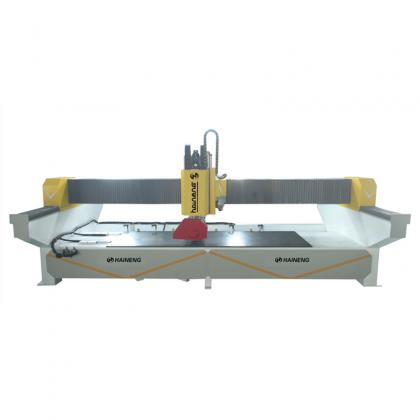

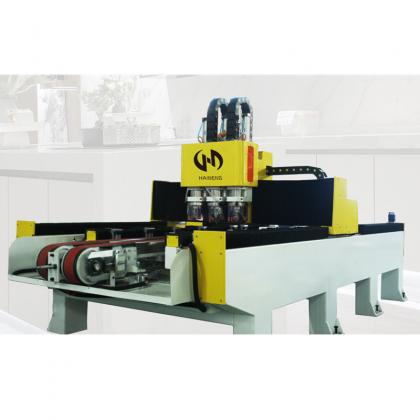

CNC Undermount Sink Cutting Machine

Using numerical control (CNC) principle, accurate positioning, automatic opening, automatic in and out of the plate; automatic feeding, automatic positioning, automatic clamping, automatic hole forming, automatic waste discharge and discharge.Designed for assembly line production, conveying Belt drive, high automation; electric spindle with high power and high efficiency.Complete functions, No. 1 cutter head can not only open various round holes, square holes, faucet holes, but also can process column feet, No. 2 cutter head can be shaped to meet the processing requirements for under-counter basins and Taichung basins; No. 3 cutter head can be polished, and the brightness can reach about 400 meshes.It is (currently) the most advanced countertop sink cutting machine.

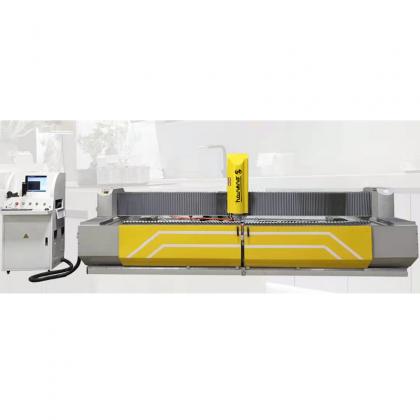

Automatic Quartz Sink Hole Cutting Machine

It is suitable for drilling and shaping of artificial stone, quartz stone and other plate countertops, and can be polished after changing the tool.This machine adopts high-speed electric spindle, pneumatic clamping; manual feeding and discharging, pneumatic quick clamping, automatic processing, easy to operate.Using PLC control, automatic feeding, automatic positioning, automatic clamping, automatic hole forming, automatic waste discharge and discharge.

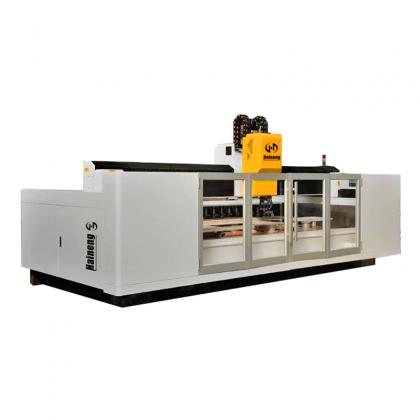

CNC Stone Working Center

1. This machine can meet the processing requirements of cutting, edging, polishing and engraving of different materials. 2. The machine automatically changes the tool during the whole process without manual intervention, which reduces the labor cost and improves the production efficiency for the enterprise. 3. The bed is welded seamlessly with thick-walled steel pipes to ensure higher machining accuracy.

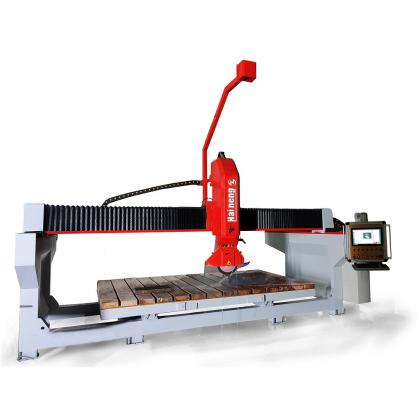

CNC Four-Axis Cutting Machine

CNC Stone Machine is a smart choice for high-end zero-single table processing plants!

High Quality CNC Stone Processing Machine Slab Marble Granite Countertop Machine

It is the multi-function stone processing machine which adopted the most technology in domestic and foreign, combined with processing in current market. It can process in artificial stone, stone and ceramic plates in one production line for drilling, milling, profiling,grinding,polishing according to the different models.

Tunnel Chain Saw Machine

This chain saw designed to open and develop underground mines of marble and of similar stone materials. Underground mining development is becoming a more and more common practice in many marble quarry operations. This method is often considered preferable to the open pit quarrying in terms of production optimization, efficiency, safety and environment preservation. The machine is mounted on a crawler and it can move easily and autonomously inside the tunnel. The machine is configured as shown in the next figures to reduce the overall dimensions and to move over slopes up to 25%. All the movements of the crawler and the positioning devices of the machine are made possible by an on-board “power pack” unit equipped with a diesel engine. During the cutting operation, the machine should be simply connected to the power line through cable and on-board plug. All the functions are controlled by means of a remote control board without cable and of a touch-screen panel. This machine is compact for tunnel mining work. By setting the cutting depth in automatic mode, the machine can make vertical and horizontal cuts on the tunnel face. This is self-propelled on crawler tracks and moves completely autonomously. Only one operator is required to operate the machine. This model can run cuts as deep as 1.7 meters.

Portable Artificial Rock Stone Splitting Machine

This stone splitter is designed with high-strength movable blades, capable of precisely splitting natural stone into two cubes or blocks with a powerful pressure of 60 tons.

Automatic Polishing Machine For Stone Bollard

Automatic granite stone bollard polishing machine of newly design absorbs the most advanced technology of stone polishing, making it designed specifically for smoothing out surfaces and achieving a professional finish.

Type	SZX-1325
XY axis machining dimensions	900×2500mm
Machine bed material	Seamless welding of integral steel structure, subjected to vibration aging and quenching treatment, without deformation or wire detachment
Drive	860H stone specific driver
Drive motor	Y450B，XZ450CHigh power stepper motor
Spindle	5.5KW High speed water-cooled spindle motor for stone materials
Spindle speed	6000-24000rpm
Frequency converter	Bester frequency converter

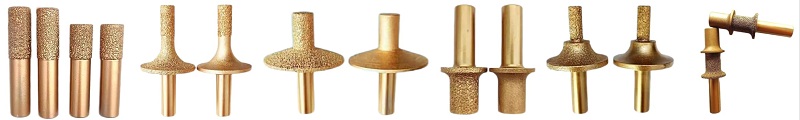

Clamping tool handle diameter	6mm, 10mm, 12mm, etc
Transmission mode	XY axis high-precision grinding of helical gear racks+straight square rails, Z-axis Taiwan imported ball screw
Guide rail	High precision 25 linear square rail
Voltage	220V/380V Optional
Control cabinet	External cabinet
Lubrication and oiling device	have

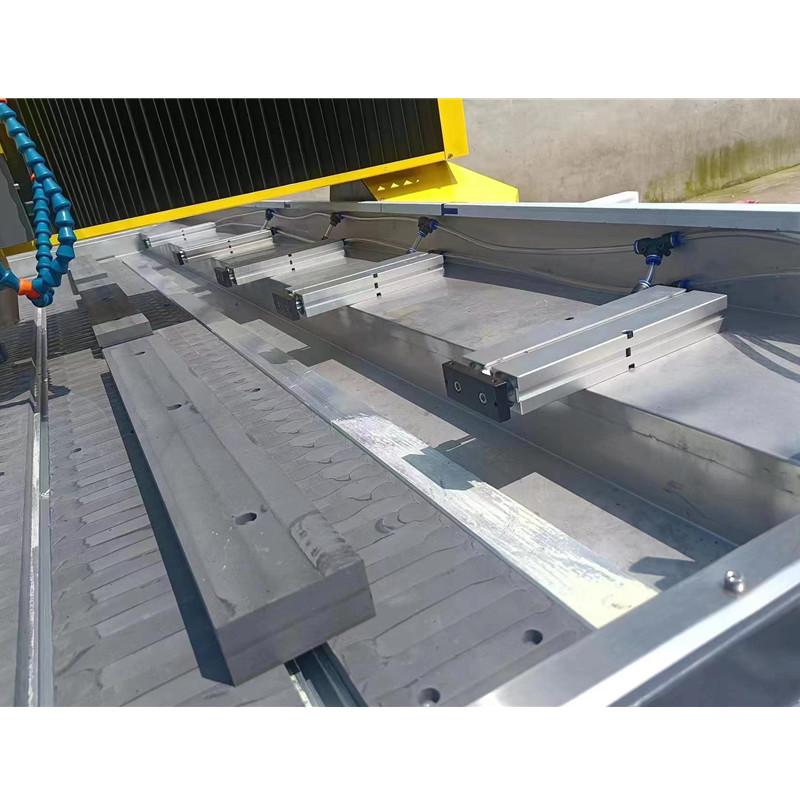

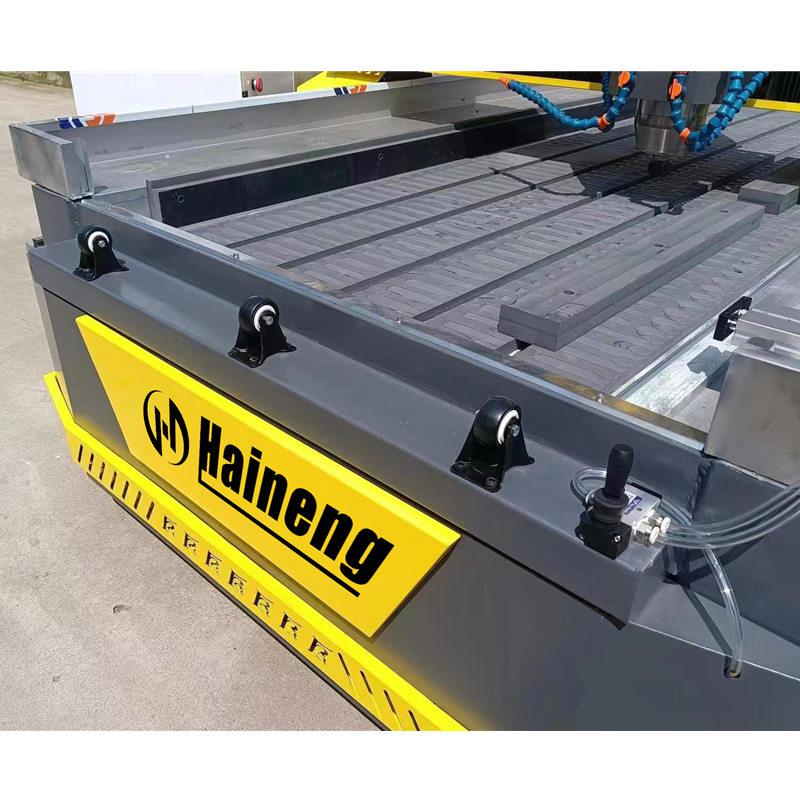

Table top	Aluminum profile strip+customized tooling
Fixed method	Cylinder fixation
Control system	Foolish system, automatic point picking without programming
Flume	Stainless steel

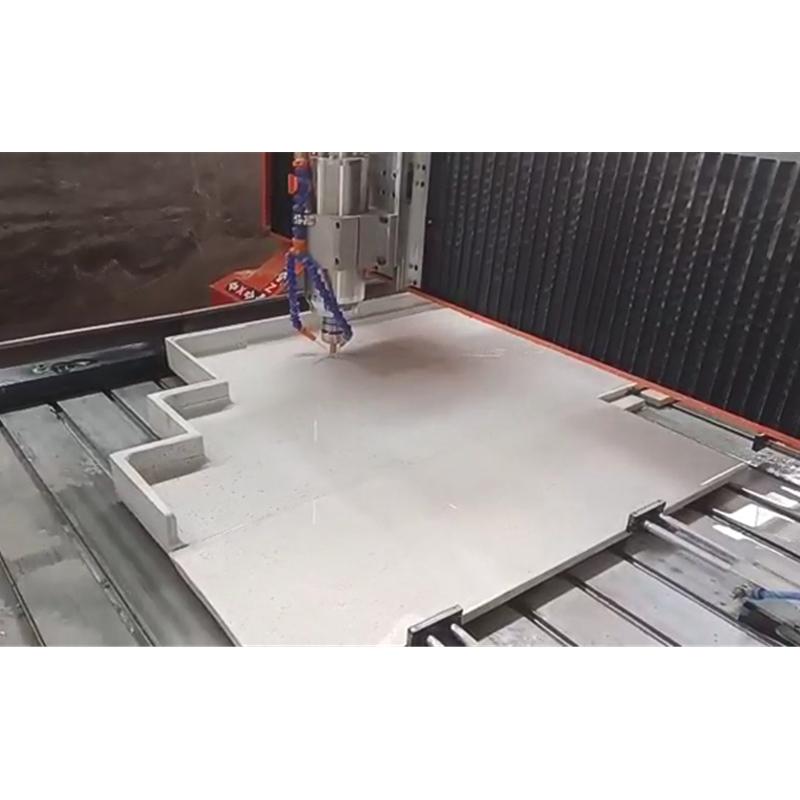

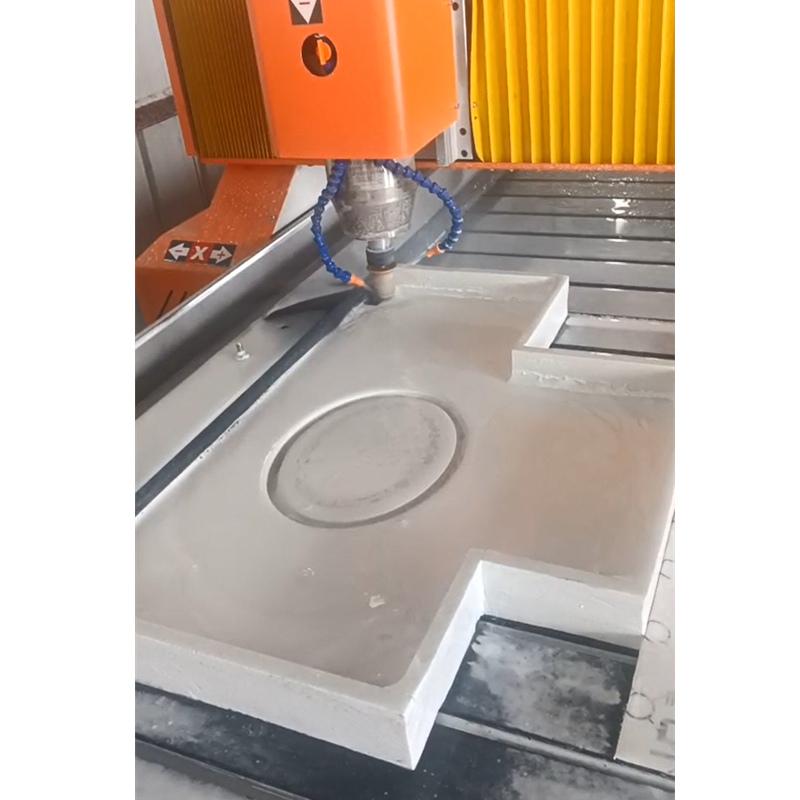

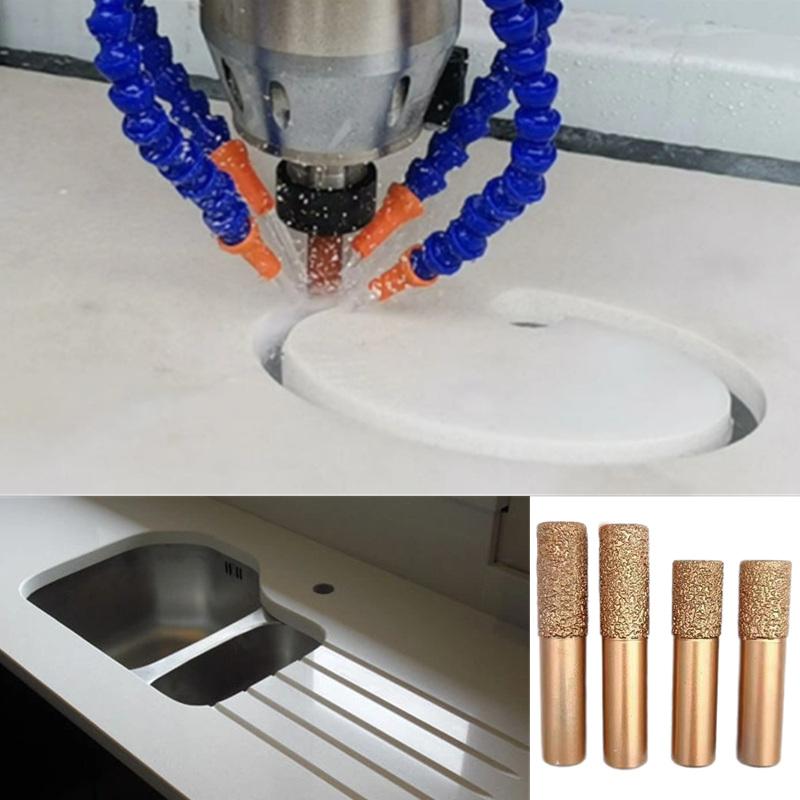

Function	Grinding circular arcs, opening basin holes, grinding edges, grinding various irregular edges, draining grooves, embossing, engraving, etc
