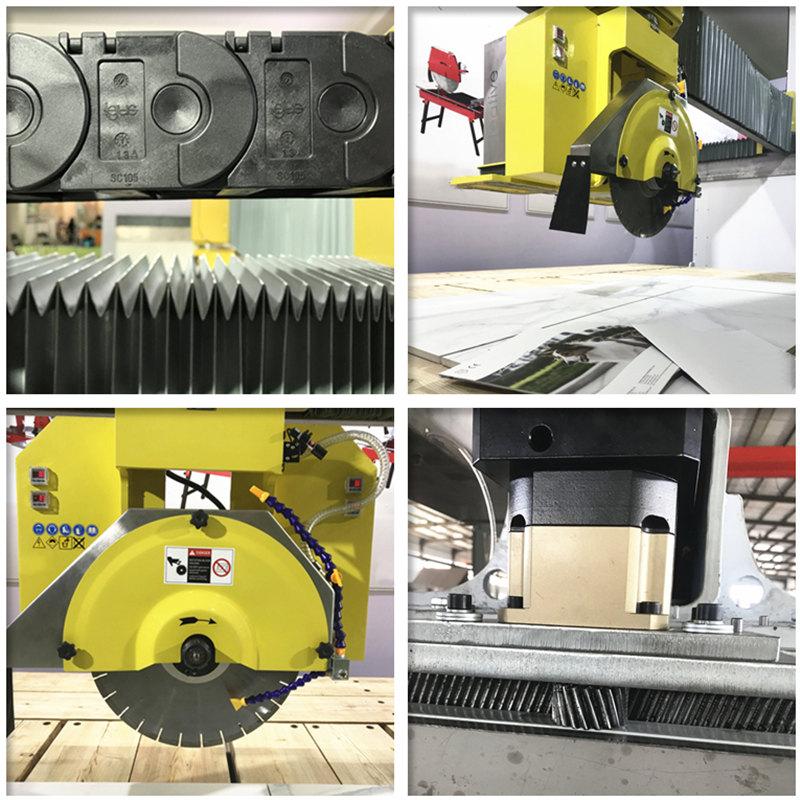

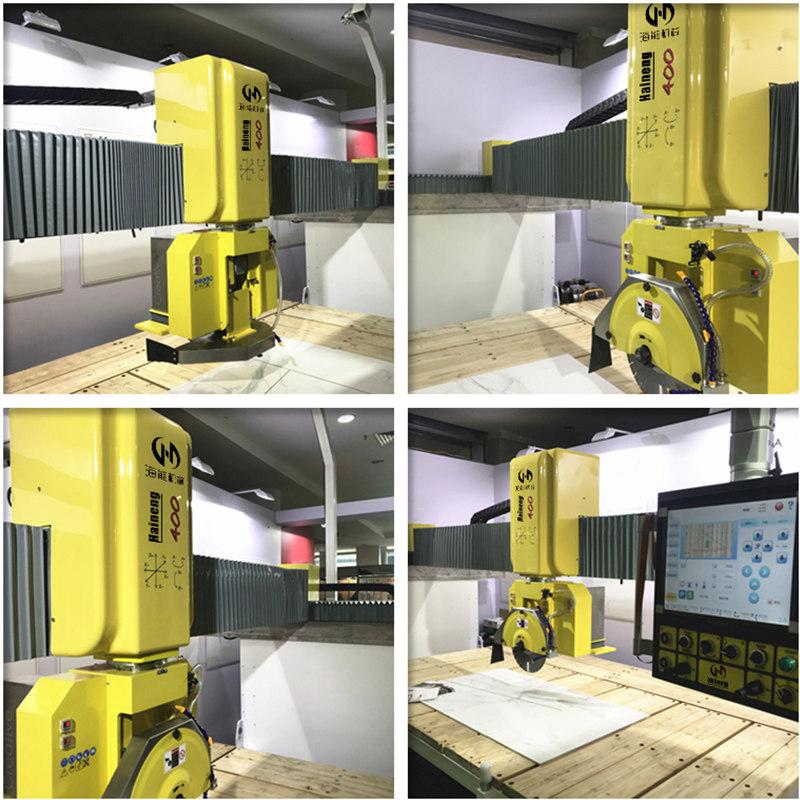

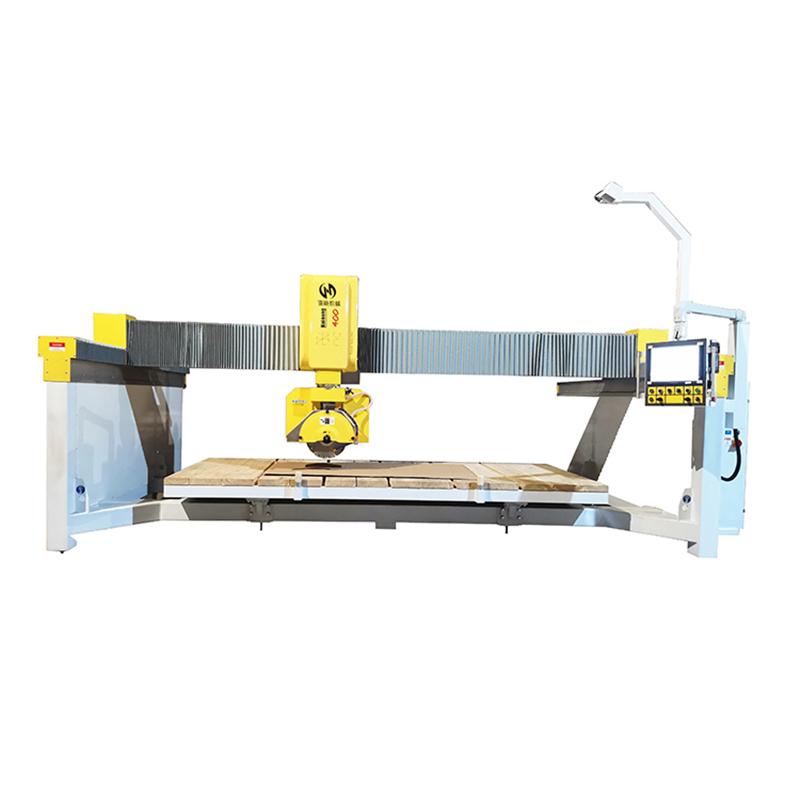

Multi-Functional CNC 5 Axis Stone Cutting Machine

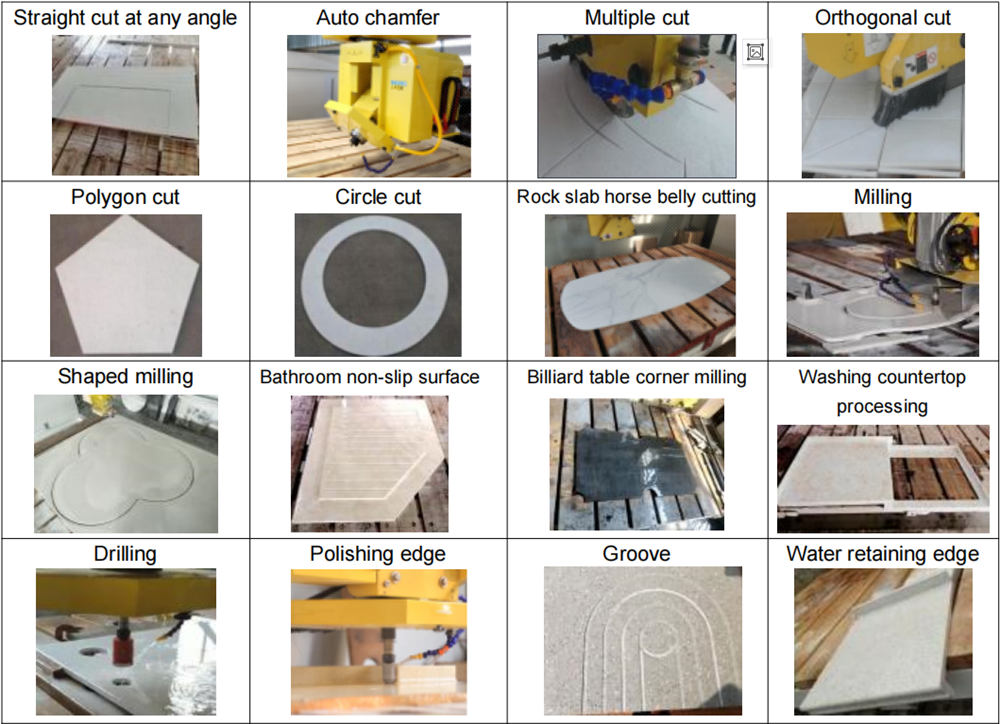

The Multi-Function CNC 5 Axis Stone Cutting Machine offers precision, efficiency, and versatility for cutting, drilling, milling, and engraving stone. Its 5-axis system enables complex designs with ease, while automation reduces labor costs.

Brand:
HAINENG
Item NO.:
WZQ-400
Payment:
T/T
Product Origin:
China
Color:
Yellow
Shipping Port:
Xiamen Port
Lead Time：
15 days

350 Granite Marble Monoblock Bridge Sawing Machine

This machine is especially suitable for home decoration factory to cut stone slab, artificial stone, marble, granite and other home decoration materials.

500 Monoblock Bridge Saw infrared Stone Cutting Machine

This Stone Bridge Saw worktable can be turned 0-85 degree + 360 degrees rotation every 45 degrees automatic positioning, with arbitrary angle positioning and braking, the machine head automatically rotates 90 degrees + automatic tilt 45 degrees. It can cut rectangles, arcs, circles, octagons, and inverted corners.

625 Mitre Cut Bridge Saw

It designed to cut granite, marble, quartz and other natural and engineered stones, Blade tilt 45° automatically for mitre cut. Cast iron bridge V-Conical oil bath guide ways X axis Oil bath THK style high precision rollers Y axis Full oil bath with dust bellow covers The 24HP 50mm Arbor motor can handle up to a 36" blade." Z Travel is 18" Heavy duty rigid construction Super heavy duty steel legs included Rotating tilt table locks in any position with hard stops at 0, 45, 90,degree and 135 degree position, Innovative variable degree table locking system. Table size 10'.5"x 6'7" Has wireless remote that controls saw and table functions Hydraulic plunge miter Computer readout digital touch control Mitsubishi drive controllers AC Inverter duty motors for all 3 Axis Easy to sse programmable cut Digital touch screen read out Laser guide

Tilting Granite Marble Bridge Cutting Machine

Cast iron bridge Special tilting head with top motor V-conical oil bath guide ways X axis Oil bath THK style high precision rollers Y axis Full oil bath with dust bellow covers The 30HP 50mm Arbor motor can handle up to a 32" blade Heavy duty rigid construction Super heavy duty steel legs included Rotating tilt table locks in any position with hard stops at 0, 45, 90,degree and 135 degree position innovative variable degree table locking system. Table size 126"*79" Has wireless remote that controls saw and table functions Hydraulic Plunge Miter, Computer readout digital touch control Mitsubishi drive controllers AC inverter duty motors for all 3 Axis Easy to use programmable cut Digital touch screen read out

Infrared Bridge Stone Cutting Machine

Infrared stone bridge cutter optional with 360-degree rotation for automatic positioning with every 45 degrees, mainly used for cutting rectangles, octagons, arcs, and circles.

Middle Block Stone Bridge Saw

It can be used for border stone, gravestone, gravestone and other process-like rectangular thick materials and polygon thick materials(table rotation 0-45-90 degree is optional), especially suitable for high value, high precision and high efficiency demand users.

Bridge Double Directions Block Cutting Machine

This Stone Block Cutting Machine has the advantages of high cutting efficiency, high splicing precision, good flatness, high stability, simple operation and so on, especially suitable for high-value granite. The cutting of raw marble.

Multi-Blade Bridge Stone Cutting Machine

The Multi blade stone bridge saw has fine processing, stable performance, high automatic production efficiency, convenient installation, operation and maintenance, and meets the development demand of international stone processing.

Type	unit	WZQ-400
Voltage/frequency		380v-3phase,50Hz
Main motor power	kw	7.5
Stroke of X axis	mm	3500
Stroke of Y axis	mm	2000
Stroke of Z axis	mm	450
Stroke of A axis		360 degree
Stroke of B axis		0-90degree
Cutting speed of X axis	mm/min	1-15000
Cutting speed of Y axis	mm/min	1-12000
Cutting speed of Z axis	mm/min	1-2000
Rotating speed of A axis	R/min	0-7
Dia. Of diamond blade	mm	400
Max.cutting thickness	mm	80

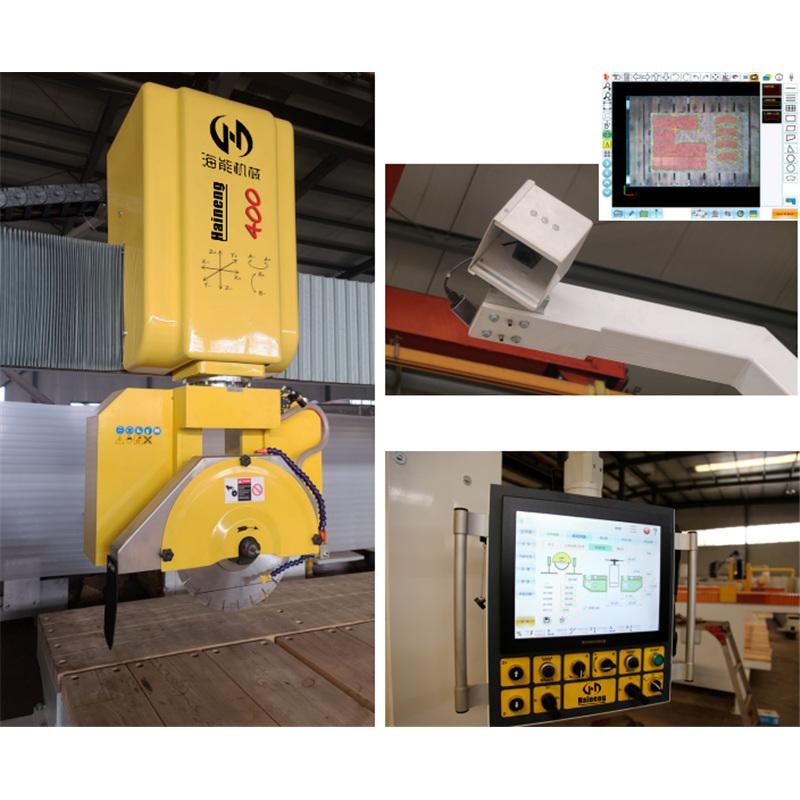

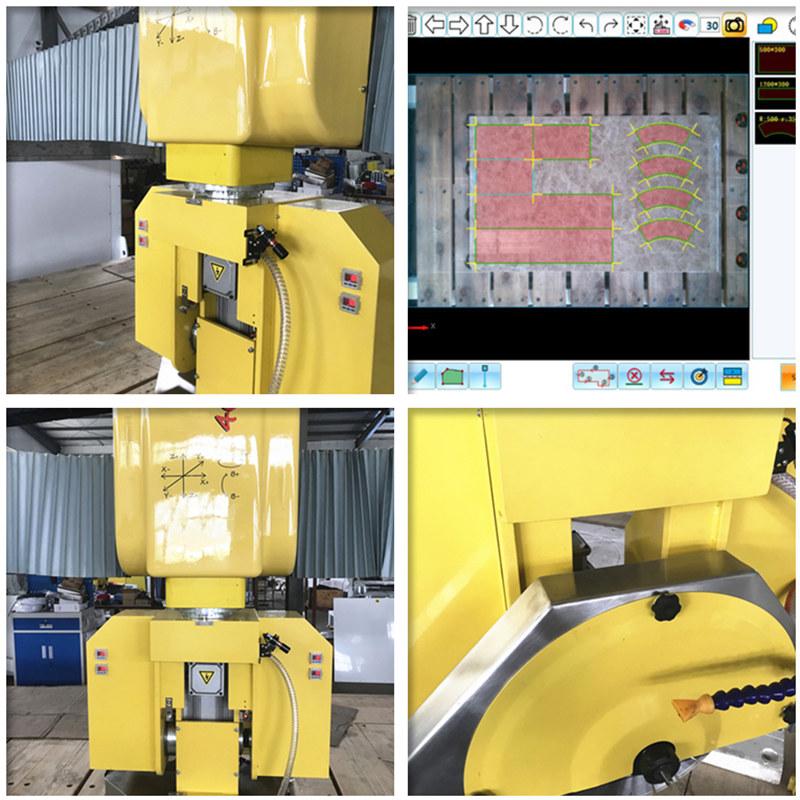

Camera capture layout		Yes
Tilting workbench		80 degree tilting
Spindle of main shaft	rpm	1000-6000
Bore size of blade	mm	50
Programming method		CAD & manual
Point imaging		Yes
Overall size(LxWxH)	mm	5750x3050x3200
Packing size(LxWxH)	mm	5500x2100x2100
Weight	kg	4300
Warranty		1Year
Lead time		50 working days
