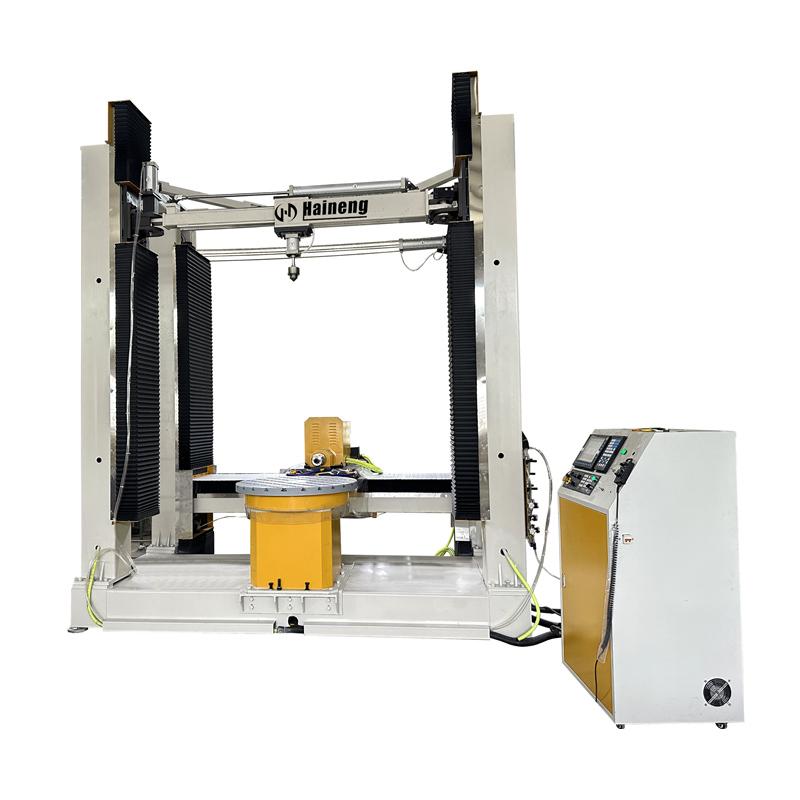

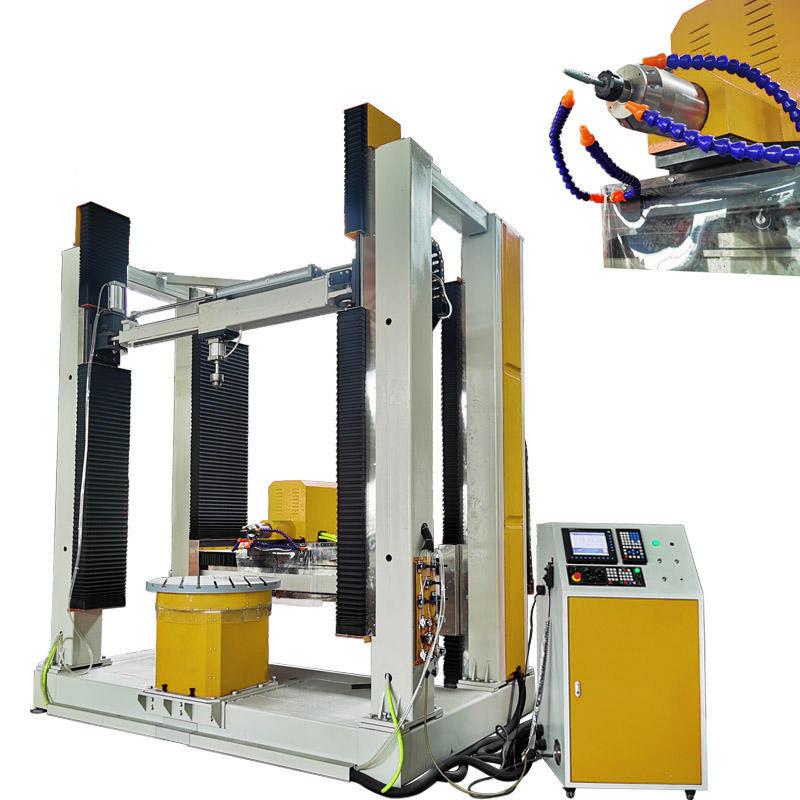

4-Axis CNC Stereo Stone Engraving Machine

The 4-Axis Stereo Engraving Machine is mainly suitable for tombstone processing, home decoration, stone carving handicrafts, stone Buddha statues, stone carving railing projects, etc.

Performance characteristics

1. The machine is equipped with switchable double processing heads.

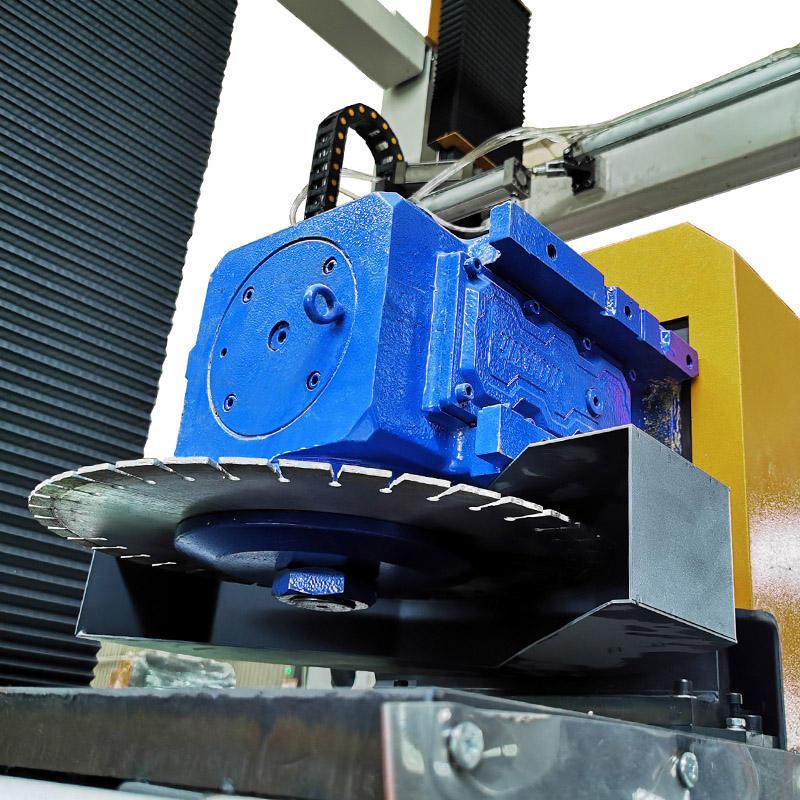

2. Band saw blade function, fast rough processing, can save 10 times of working hours.
3. With interrupt recovery function. After the fault returns to power, continue engraving from the breakpoint.
4. Use high-quality machine components that are heat-resistant, impact-resistant, and resistant to harsh environments to ensure high-speed and high-precision work.
5. Professional vector control inverter ensures various working speeds, smooth operation and reduced power consumption.
6. Large vertical turntable with thickened PVC board to enhance the platform’s carrying capacity.

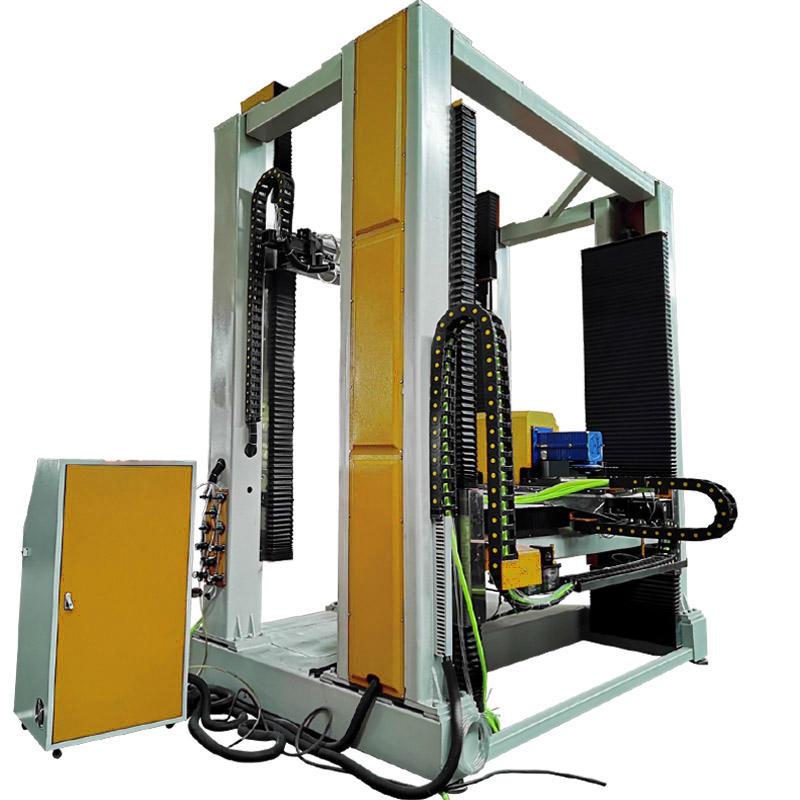

7. The bed adopts heavy-duty steel structure, which gives the machine good stability. Low center of gravity, strong load-bearing capacity and long service life.

Technical Parameters

Processing

Application:
* Stone Buddhas statues, Church sculptures
* Stone balustrades, Roman columns, colum cap & base
* stone crafts, artwork
* Funeral tablets/tombstones, Milestones

Machine details

Control system  -- CNC
Brand:NC studio
Original: China

CNC control system,easy to learn and operate, Breakpoint specific memory, power outages continued carving.
It can compatible with Artcam JD paint softwares and other CAM software.

Water-cooling Spindle
Power: 3.5/4.5/5.5 kw (customizable)
Rotating Speed: 6000-24000 rpm/min

Frequency changing water cooled spindle with high-speed bearing technology, make low noise, fast response, high rotational speed and safeguard stability for longtime work.

Guide Rail, Ball screw
Origin: Taiwan, China

High quality guide rail, ballscrew, rack used on X, Y and Z axises provide smooth motion and tight control for precise and quality engraving.

Auto Lubricating System
Automatic oil feedingand lubrication system makes the regular maintenance very easy and reduce waste.

Servo Motor
Brand: Dorna
Origin: China
Nr of revolutions: 0-2000 rpm

They are very resistant to heat and bad envirament with fast speed , high precision and shock resitant.
Drive X and Y axis moving accuracy and reposefully.

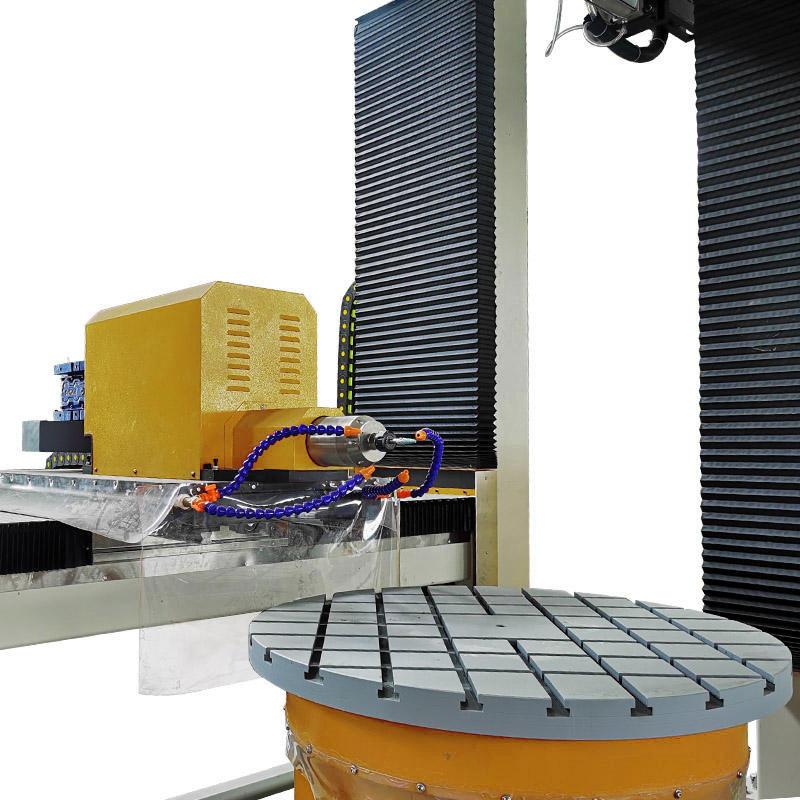

Rotary Table
The rotary platform is made with sturdy and durable chuck, which make it easy to fasten the working piece.
