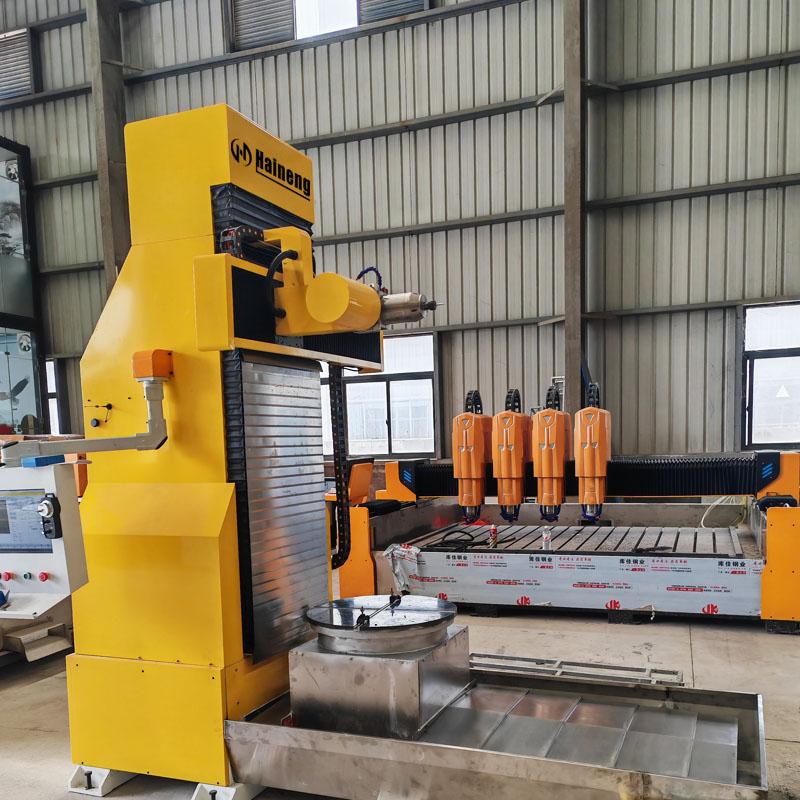

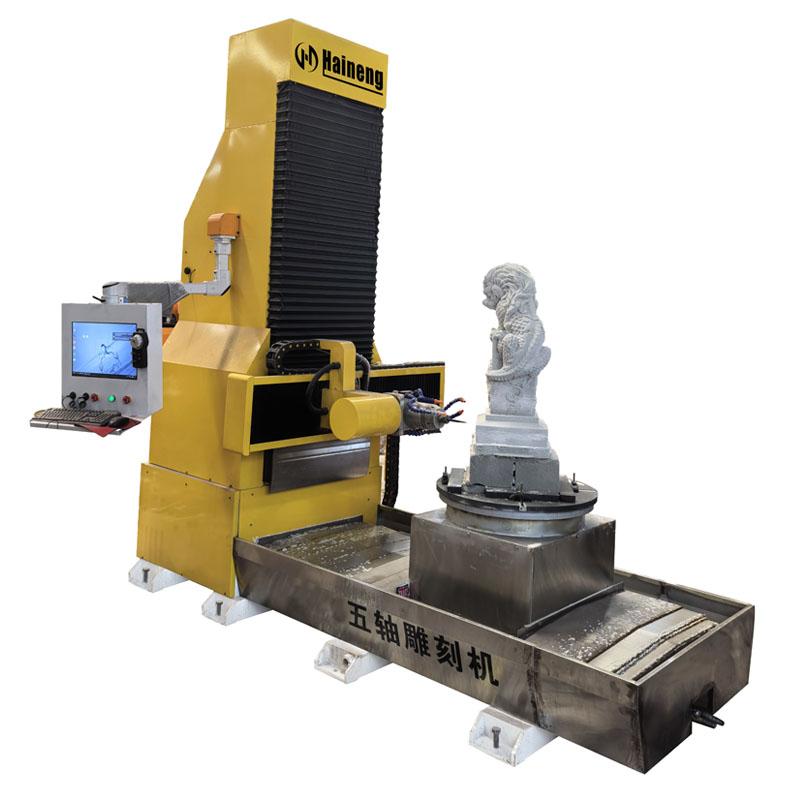

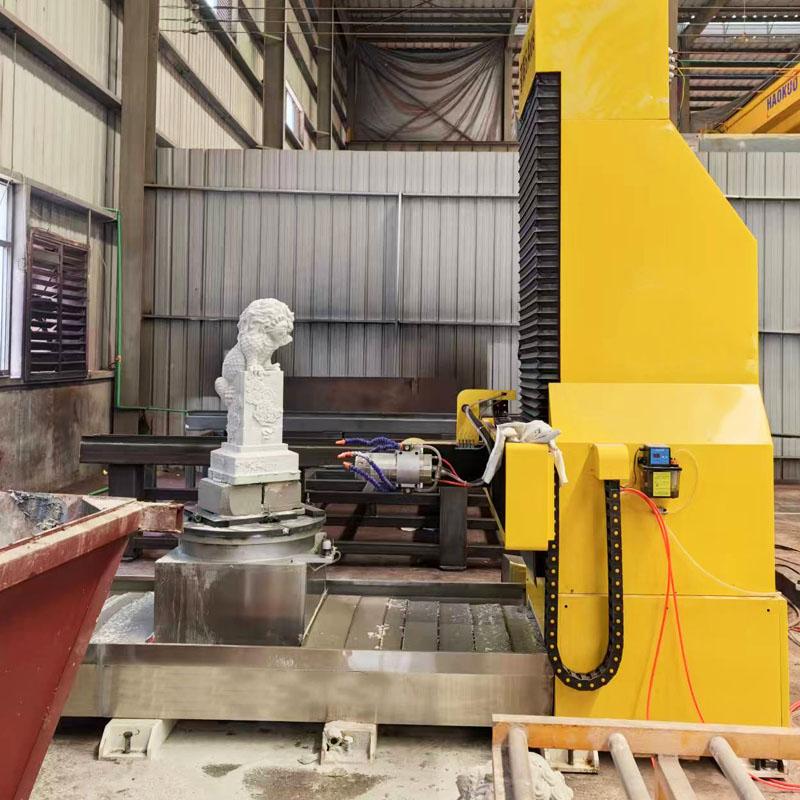

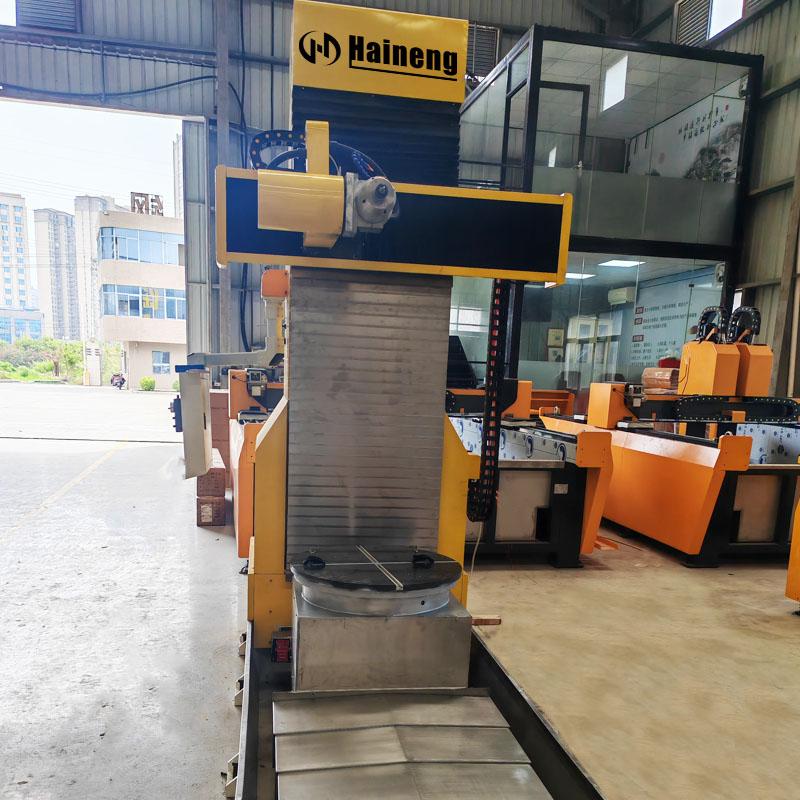

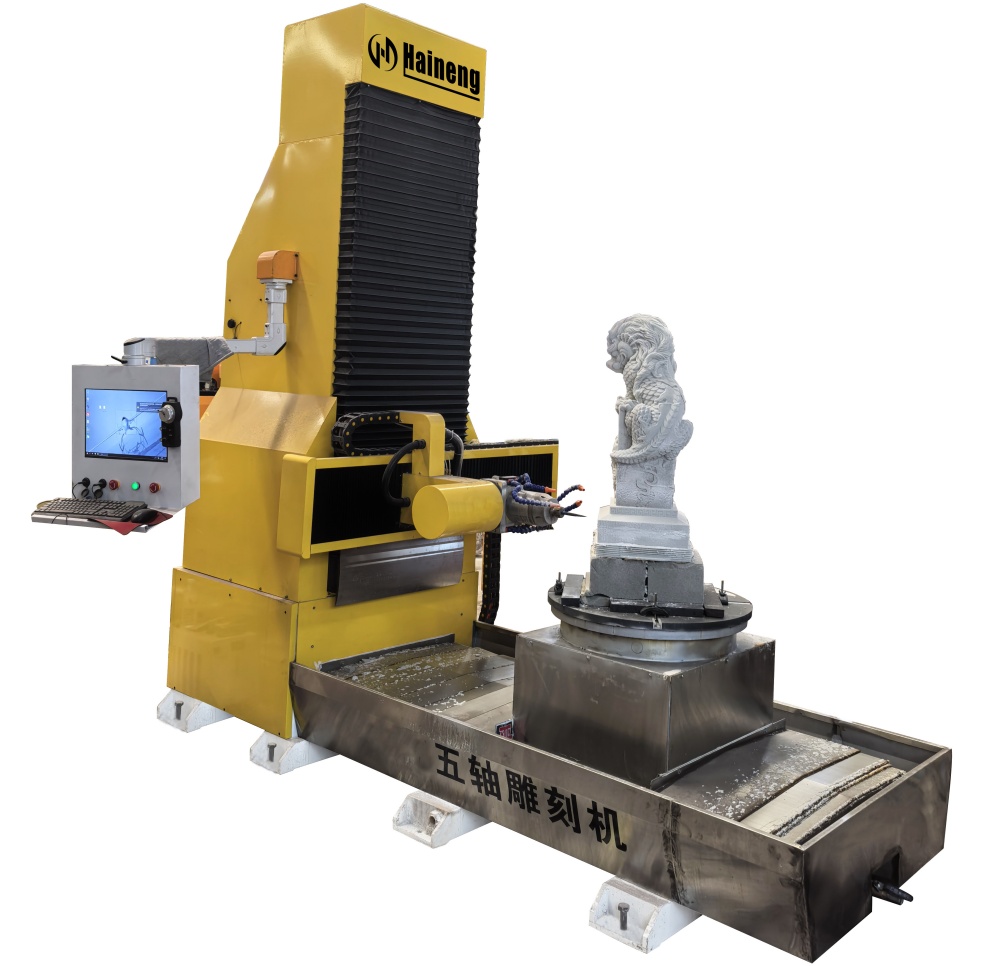

5 Axis CNC Stone Sculpture Artwork Engraving Machine

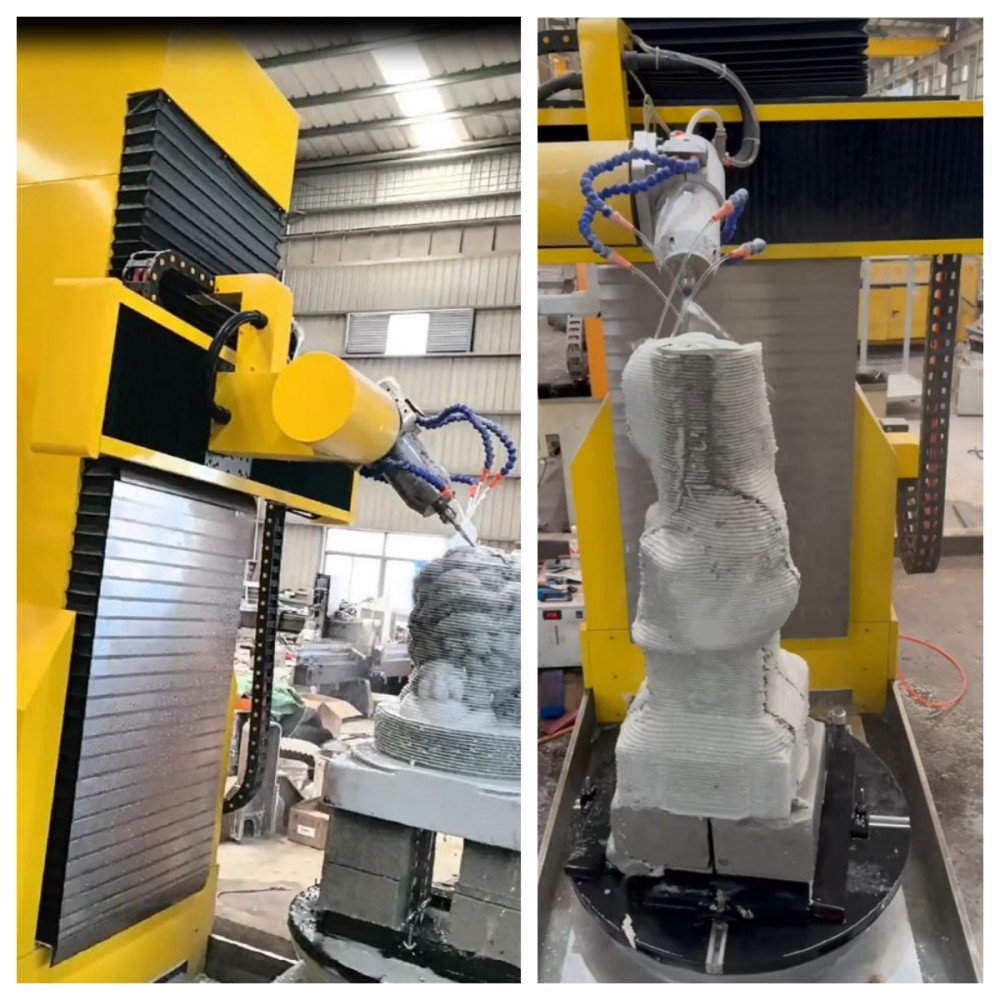

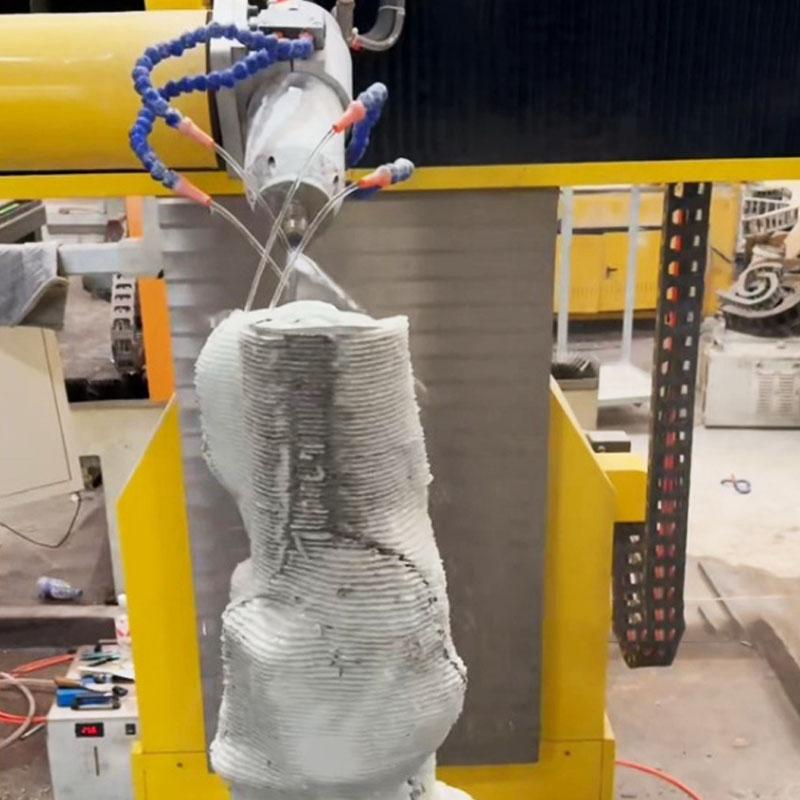

This 5 Axis stone engraving machine is mainly used for processing figure sculpture, animal sculpture, large and small crafts.

Brand:
HAINENG
Item NO.:
DKJ-LT1050
Payment:
T/T
Product Origin:
China
Color:
Yellow
Shipping Port:
Xiamen Port
Lead Time：
30 Days

Automatic 3D 7 Axis CNC Kuka Robot Arm Sculpture Stone Engraving Machine

Kuka Industrial Robot with: Light-weight only 1.5kg in weight, safe for user and other devices High flexibility 7 degrees of freedom ensures wide working range Easy teaching able to be taught by hand

Classic Single-Head CNC Engraving Cutting Machine

Our laser cutting & engraving machine adopts the DSP control technology，it does not have to be connected with computer to work. This machine characterized with automatic memory, automatic management, it is quicker, steadier, and more accurate.

Classical Double Head Stone Versatile Engraving Machine

JDK2030-2 stone carving machine is equipped with CNC control system and two working heads, it is a multifunctional machine. Mainly used for carving various stone materials, such as marble, granite, quartz, sandstone or artificial stone or ceramics, glass, etc.

High Efficient Stable Classic Three Head Stone Engraving Machine

Three Head Stone Engraving Machine adopt NcStudio CNC control system ,large color screen display, easy and simple to operate.

High Efficient Classic Four-Head Stone Engraving Machine

Four-Head Stone Engraving Machine wth the latest stone cutting system, all three axes are driven by AC servo motors, suitable for building materials, ancient buildings, tombstones, tea trays, etc.

Split Type Special Shaped Stone Engraving And Cutting Machine

The split-type special-shaped engraving cutting machine adopts the latest stone cutting system, which can cut stone with high efficiency. It has various models, large size and internal size, easy loading and unloading, and is suitable for various large-scale products such as building materials.

4 Axis CNC Multifunctional Double-Head Stone Engraving Machine

The 4 axis CNC multi-function double-head engraving machine is equipped with double milling cutters and double saw blades, which can perform profiling cutting more effectively and improve the engraving work in the next step.

Single Head Stone CNC Router Dragon Column Engraving Machine

The single-head integrated dragon column engraving machine first roughs the saw blade, and then engraves, which greatly improves the efficiency, and can carry large workpieces of more than 5 tons.

Model	DKJ-LT1050
Effective travel	X: 800,Y: 1200, Z: 1200
Processing size(W*H)	500*1000mm
Swing head stroke	±90 degrees
Turntable Stroke	±360 degrees
Processing speed	15000mm/min
Spindle power	7.5 kW (water-cooled variable frequency)
Spindle speed	0-24000r/min (adjustable)
Inverter power	7.5KW
Working voltage	AC380V/50HZ
Drive motor	Wezhi servo motor XYZ 1.5KW,B axis 2.3KW,C axis 750W
Head swing reducer	A axis Zhuolan RV cycloidal pin reducer
Guide way	X axis 25 rails, Y axis 35 double rails, Z axis 30 double rails
Screw	X axis 2510 screws, Y axis Z axis 3210 screws
Cooling system	CW3000 chiller
Bed and load-bearing	High-quality bridge steel bed, stainless steel sink
Control system	Weihong five-axis control system, with rtcp function
Control cabinets	Built-in control box
Lubrication method	Electric oil injection pump
Dust prevention	Stainless steel dustproof stainless steel sink
