Double Blades Mining Machine

This machine is improved on the basis of the original double mining machine. The main shaft is lifted and lowered using four cylinders as guide rails, and the hydraulic cylinder is used to lift and lower. The main advantages are: small clearance, less wear, no vibration, stable structure of the whole machine, and high cutting precision Improve the service life of the cutter head. The cylindrical guide rail is fully enclosed and protected to ensure that the guide rail pollution is reduced. With the special lubrication system, it is beneficial to improve the service life and utilization rate of the machine, and reduce the number of maintenance and costs. It is a comprehensive benefit. Significantly improved mining and quarrying machinery.

  • Item NO.:

    YZK1360/1900-3600
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    Yellow
  • Shipping Port:

    Xiamen port
  • Lead Time:

    20 days
Product Detail

Product Introduction


1.Double Blade Mining Machine has a compact structure, with mechanical system, hydraulic system and electrical system integrated, high degree of automation, simple operation and easy-to-use feature.

2.The cylindrical guide rail is fully sealed to ensure that the guide rail no pollution and machine has an original lubrication system, so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced. It is a mine quarrying machine with significantly increased comprehensive benefits.

3.Unique cylindrical guide, hydraulic elevator design and super wide chassis, so the structure is more stable and longer useful life.

4.With the super giant saw blades, it can be used for the processing of ultra-large rocks and blocks to improve out turn percentage of the mine and make full use of the mineral resource.
5.Disc saw blades cutting is more secure, environmental, lower cost and more efficient than traditional blasting mining method.

Double Blades Mining Machine


Technical Parameters


Double Blade Mining Machine

Name

Unit

YZK1360/1900-3600

YZK1500/2000-3600

YZK1950/2450-3600

YZK1950/2450-4600

YZK1950/2450-4800

YZK2600/3100-3600

YZK2600/3100-4600

YZK2600/3100-4800

MaxBlade Diameter

mm

φ2200*2-φ3600*2

φ2200*2-φ3600*2

φ2200*2-φ3600*2

φ2600*2-φ4600*2

φ2600*2-φ4800*2

φ2200*2-φ3600*2

φ2600*2-φ4600*2

φ2600*2-φ4800*2

Max cutting depth

mm

1500

1500

1500

2050

2150

1500

2050

2150

Cutting width

mm

1360-1900

1500-2000

1950-2450

1950-2450

1950-2450

2600-3100

2600-3100

2600-3100

Water consumption

m3/h

5

5

5

5

5

5

5

5

Main Motor power

kw

55*2

55*2

55*2

65*2

65*2

55*2

65*2

65*2

Total power

kw

120

120

120

140

140

120

140

140

RailsCenter distance

mm

1140

1290

1670

1670

1670

2200

2200

2200

Overall dimension

(L*W*H)

mm

3800*1550*3200

3800*1550*3200

4000*2150*3200

5000*2150*3800

5300*2150*3900

4300*2800*3200

5200*2800*3900

5300*2800*3900

Approximate weight

kg

7500

7500

9000

10500

11000

11000

12000

12500

Processing



Transporting mining machine to the mine

Laying the rail



Shifting of the mining machine(passageway)

Mining machine works normaly




Quarry the block bottom

Quarry the block bottom

Loader transports the blocks

Double Blades Mining Machine

Loading Container

Company Information

Double Blades Mining Machine

Leave A Message

Leave A Message

Related Products

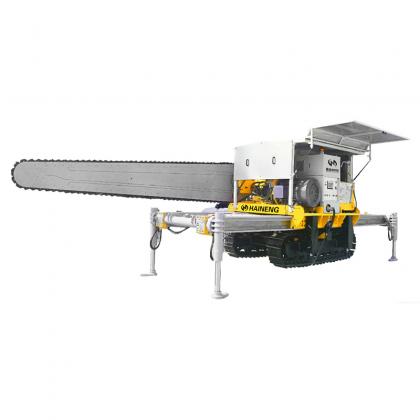

Tunnel Chain Saw Machine
