Double-Purpose Composite Thin Slab Splitting Machine

This stone cutting machine is the basic equipment for producing marble thin slabs and composite slabs. Slice (thickness) adjustment adopts screen setting and PLC automatic control. It greatly reduces the difficulty of operation and improves work efficiency.
  • Brand:

    HAINENG
  • Item NO.:

    SBD-1200/1600/2200
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    China
  • Shipping Port:

    Xiamen port
  • Lead Time:

    15 days
Product Detail

Product Description

This Double-Purpose Composite Thin Slab Splitting Machine is the basic equipment for the production of thin marble slabs and composite slabs. It uses band saw blades (diamond wire) to split or saw the slabs into slices. The saw blade tension adopts an automatic constant pressure hydraulic device. Compared with the traditional machine using manual tension, it has the advantages of uniform strength, stable pressure, longer service life of the saw blade, and convenient operation. The slice (thickness) adjustment adopts screen setting and PLC automatic control,. which greatly reduces the difficulty of operation and improves work efficiency.


Technical Parameter

Model

Unit

SBD-1200

SBD-1600

SBD-2200

Max.working width

mm

1250

1650

2200

Max.working thickness

mm

80

80

80

Band blade length

mm

8300

9100

11000

Wire saw length

mm

8200

9000

10900

Band blade thickness

mm

2-7

2-7

2-7

Main motor power

kw

7.5-6

7.5-6

11-6

Gross power

kw

8.99

9.55

13.4

Fly wheel dia.

mm

1100

1100

1350

Feeding speed

mm/min

0-177

0-177

0-177

Water consumption

m³/h

2

2.1

2.3

Overall dimensions

mm

3500×3700×2200

4800×4100×2200

5300×4900×2100

Weight

kg

2500

3200

3800


Product Photo

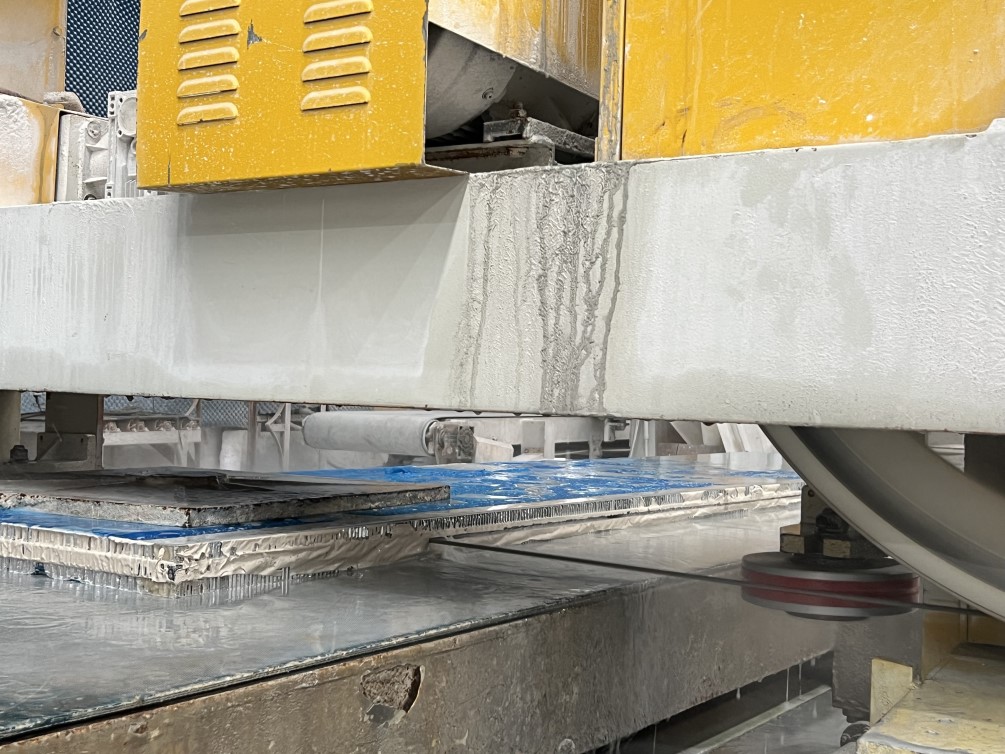

Thin Slab Splitting Machine

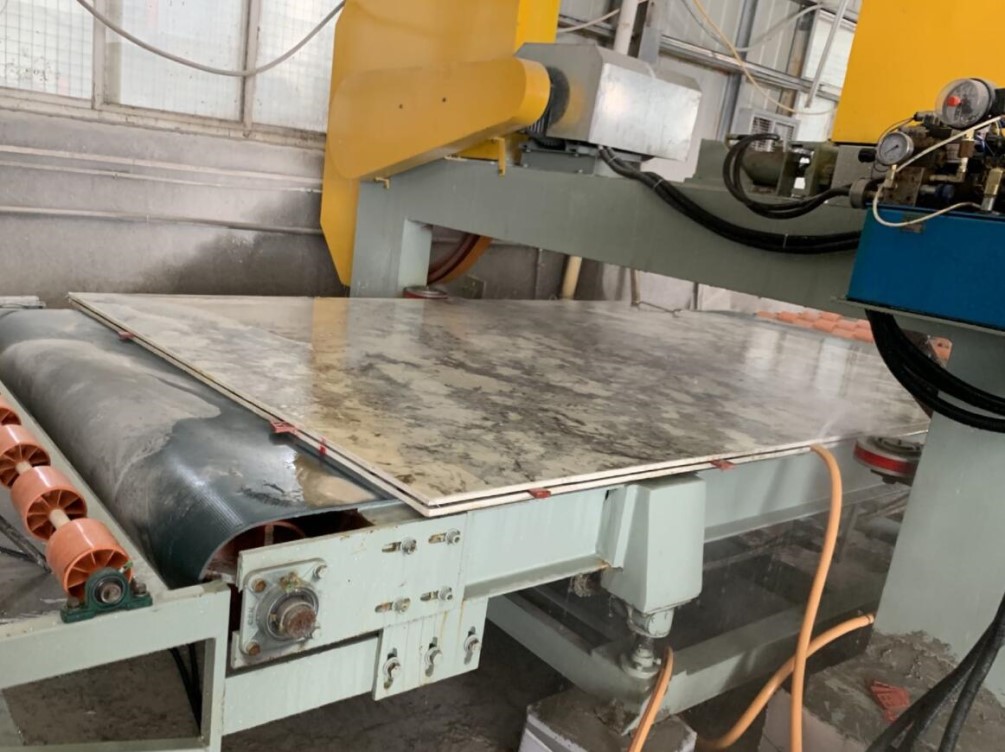

Double-Purpose Thin Slab Splitting Machine

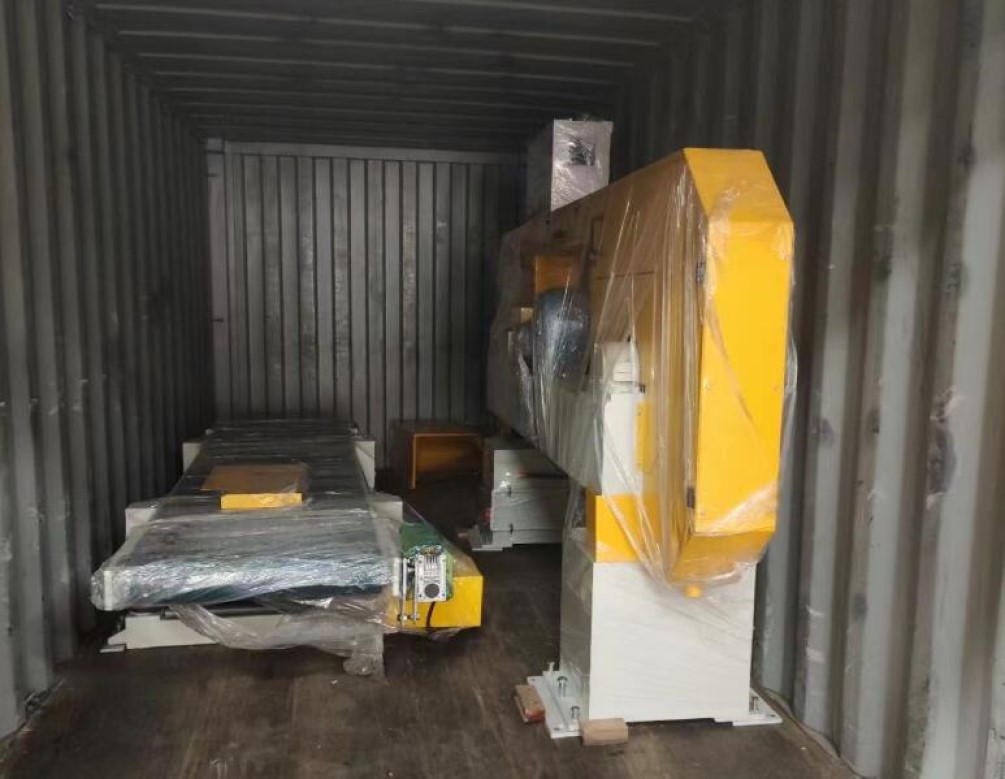

Product packaging


Leave A Message
Related Products
Marble Slab Processing Machine

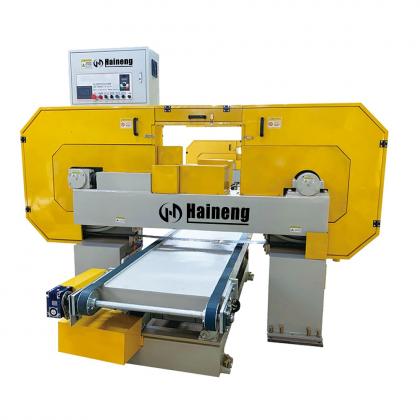

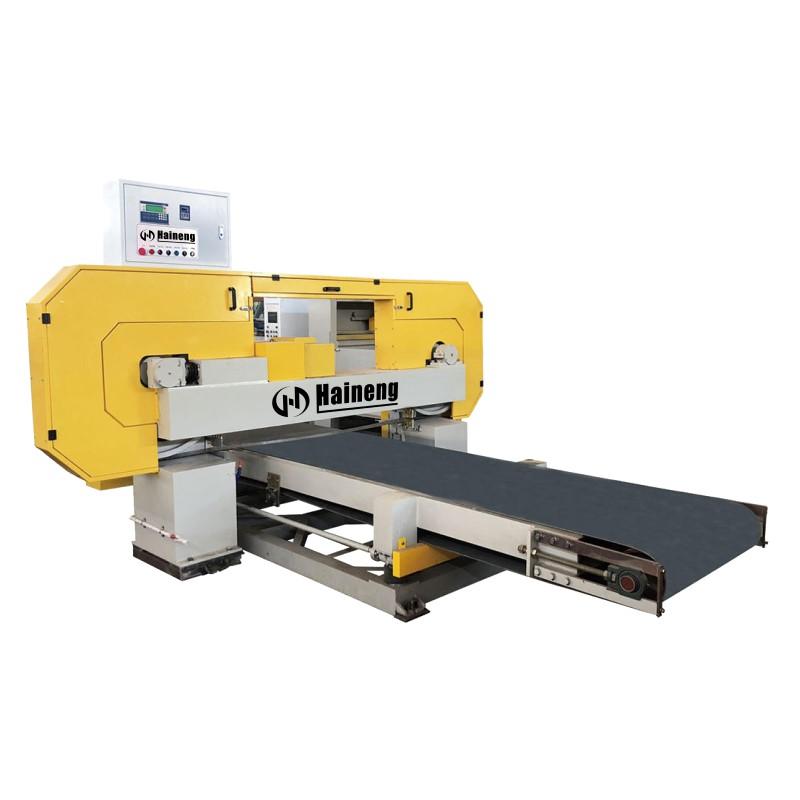

Horizontal Bandsaw Marble Thin Slab Cutting Machine
This Marble slab cutting machine is designed to split the slab into thin tiles, and widely used to produce ultra-thin marble composited tiles. The worktable can feed automatically and its speed can be adjustable and flexible.
Granite Slab Stone Cutting Machine
Double Heads Stone Slab Splitting Machine
Double saw blades machine equipment for the integrated body, no need to pour cement foundation, installation, more convenient to move, occupy a small area and so on.
Sludge Dehydrator
Affordable 6 Bags Sludge Dehydrator Machine
This sludge dewatering machine filters slurry from granite, marble, quartz, concrete, artificial marble and other materials. Water resources can be recovered after sludge treatment via gravity settling.
Gang saw machine for marble
KJJ-800 Marble Gang Saw Stone Cutting Machine
KJJ-800 is a frame saw with diamond blade translation, block jacking and closed structure. Used for cutting large marble board, suitable for mass produce.
Stone Grinding and Chamfering Machine

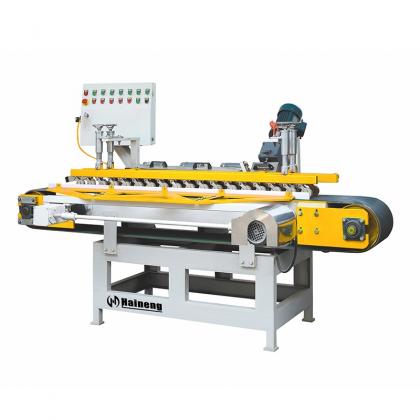

Single-Side Grinding and Chamfer Machine
It is mainly used for edge polishing for stone, ceramic, glasses, micro-crystal(Straight edge/Original edge)
CNC Stone Cutting Machine

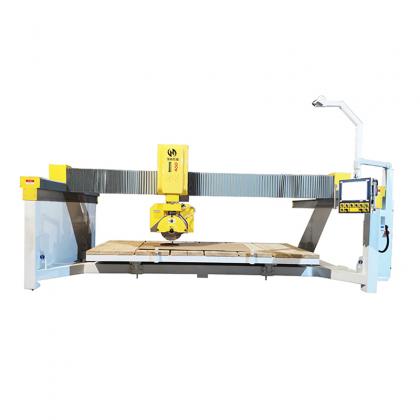

4 Axis Intelligent Bridge Saw Machine
Haineng automatic intelligence bridge stone cutting machine equipped with a CNC operating system,achieving complex irregular cutting and efficient chamfering operations.
Granite Marble Bridge Cutting Machine

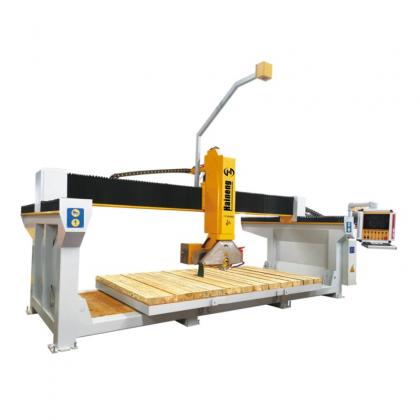

Tilting Granite Marble Bridge Cutting Machine
