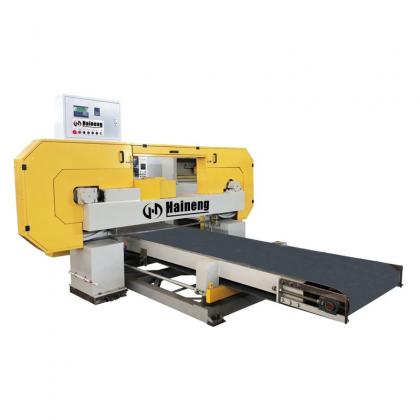

Horizontal Bandsaw Marble Thin Slab Cutting Machine

This Marble slab cutting machine is designed to split the slab into thin tiles, and widely used to produce ultra-thin marble composited tiles. The worktable can feed automatically and its speed can be adjustable and flexible.
  • Brand:

    HAINENG
  • Item NO.:

    WBD-800/WBD-1200
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    Yellow
  • Shipping Port:

    Xiamen port
  • Lead Time:

    15 days
Product Detail

Horizontal Composite Thin Slab Splitting Machine

This is a basic and efficient machine for producing thin marble or granite or other composite slabs. The band saw blades or diamond wire is used in conjunction with the automatic convey feeding belt to make the horizontally slicing of the slab, with easy, smoothly and high efficiency.


Performance Characteristics

1. PLC control system, supports multi-language, easy-to-use button operation.
2. Adopt an automatic hydraulic constant pressure system to ensure stable pressure, uniform tension, cutting accuracy and tool service life.
3. The slice thickness can be adjusted through screen settings and automatically controlled by PLC. The operation is simple and greatly improves work efficiency.
4. You can choose to use a diamond wire saw or saw blade as a cutting tool.
5. Mainly used for splitting hard and brittle materials such as marble, luxury stone, granite, artificial stone, and composite panels.


Technical Parameter

Model

Unit

WBD-800

WBD-1200

Bandsaw length

mm

6280


7060


Bandsaw&Diamond wire length

mm

7220/7120

8050/7970

Bandsaw thickness

mm

0.9

0.9

Diamond wire thickness


mm

5.2-7.3


5.2-7.3

Gross power

kw

8.97


8.97


Fly wheel dia.

mm

1000

1000

Cutting speed


m/min

0-100


0-177

Water consumption

m³/h

1

1.5

Work width

mm

850

1250

Work thickness

mm

60

80

Max processing length

mm

1000

2000

Overall dimensions

mm

3000×2500×2200

3400×4000×2200

Weight

kg

2200

3000


Machine details:

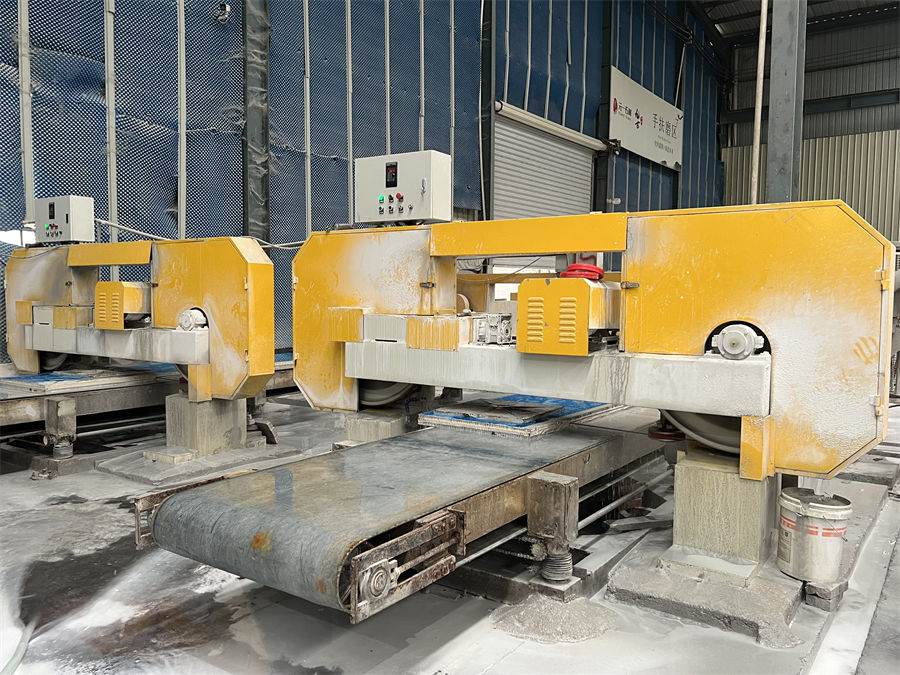

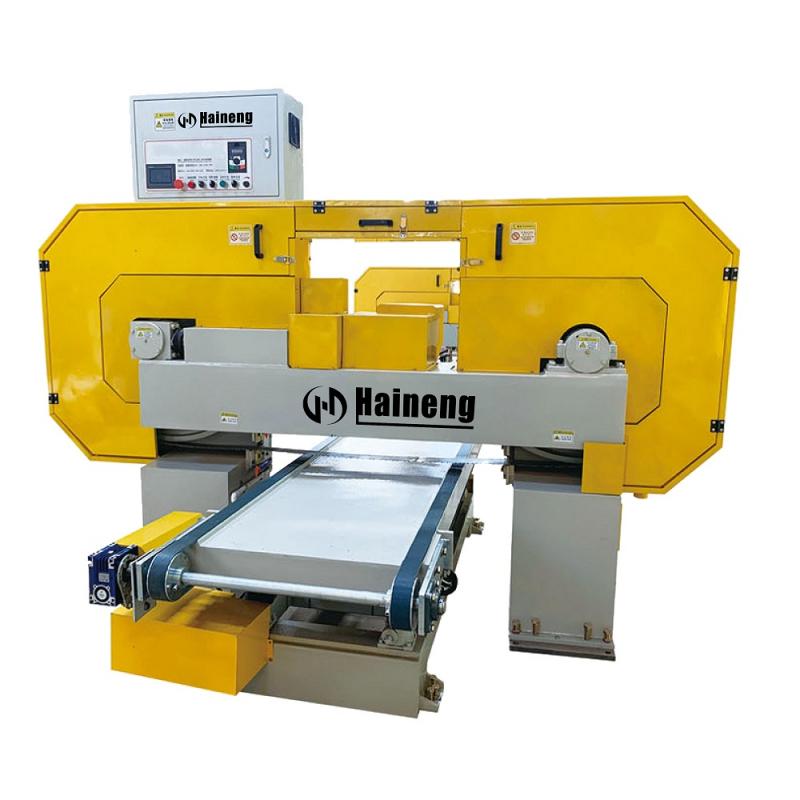

Marble Horizontal Splitting Machine

Composite Slabs Splitting Machine

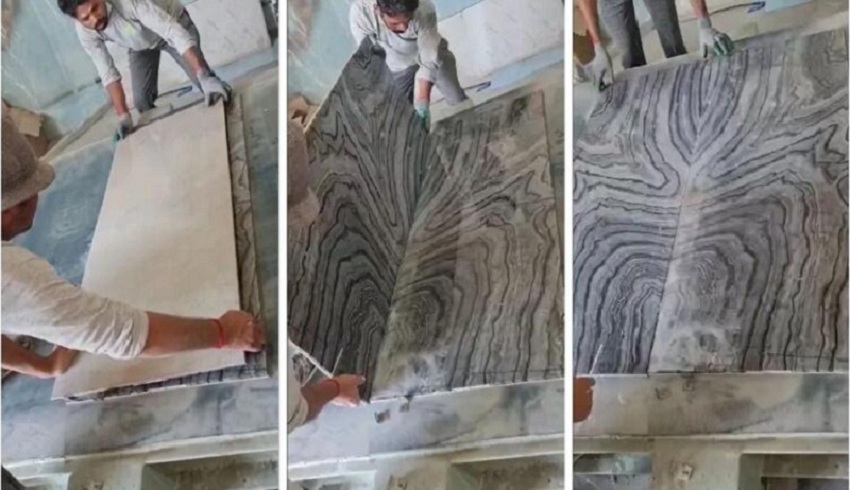

Processing

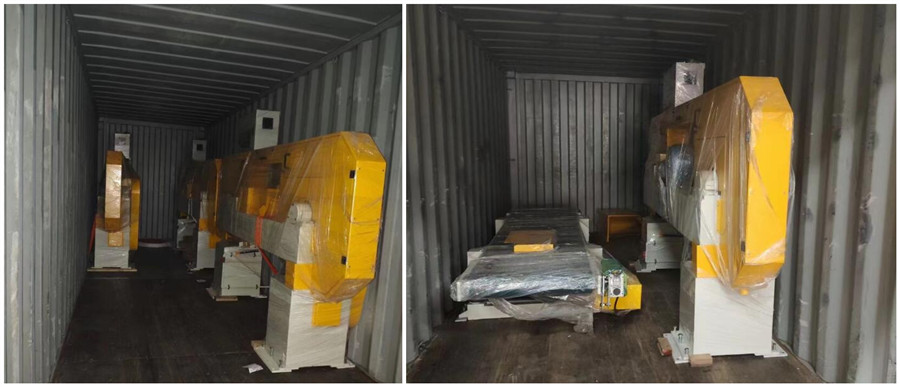

Loading photos

Stone Splitting Machine


Company information



Leave A Message
Related Products
Marble Thin Slab Cutting Machine
Double-Purpose Composite Thin Slab Splitting Machine
This stone cutting machine is the basic equipment for producing marble thin slabs and composite slabs. Slice (thickness) adjustment adopts screen setting and PLC automatic control. It greatly reduces the difficulty of operation and improves work efficiency.

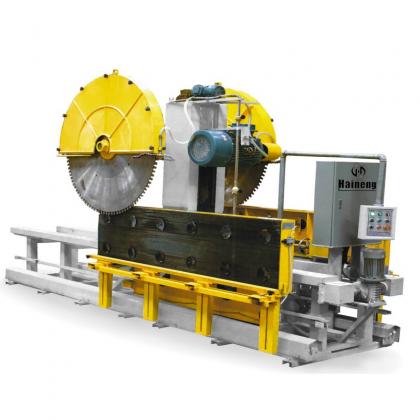

Granite Slab Stone Cutting Machine

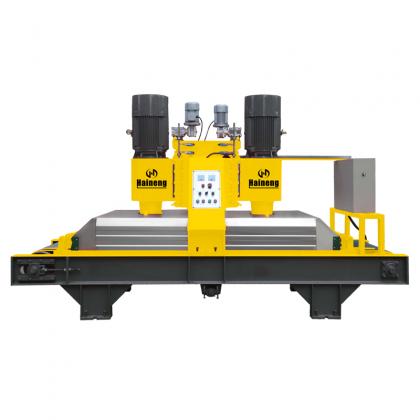

Double Heads Stone Slab Splitting Machine
Double saw blades machine equipment for the integrated body, no need to pour cement foundation, installation, more convenient to move, occupy a small area and so on.
Stone Dedicated Chamfering Machine
High Speed Stone Dedicated Chamfering Machine
Stone chamfering machine high-speed, precise chamfering, stable operation, and zero damage rate—solves manual inefficiencies and boosts productivity.
Edge Grinder Machine
Multi-Performance Edge Grinder Machine
This edge grinder is the most efficient and practical combination edge grinding line equipment for stone processing.

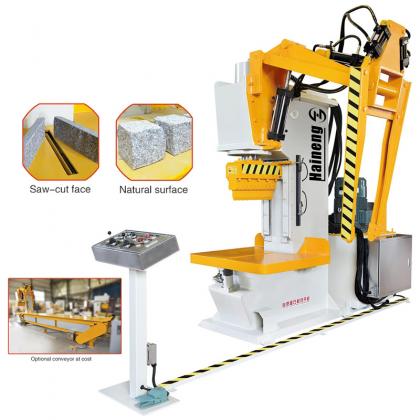

Stone Splitting Machine
Portable Artificial Rock Stone Splitting Machine
This stone splitter is designed with high-strength movable blades, capable of precisely splitting natural stone into two cubes or blocks with a powerful pressure of 60 tons.
4 Axis CNC Bridge Saw
Special Offer 4 Axis CNC Bridge Saw
4 axis cnc bridge saw integrates cutting, profiling, chamfering functions into a single machine, providing an efficient, precise and intelligent processing solution for natural and engineered stone materials such as granite, marble and quartz.

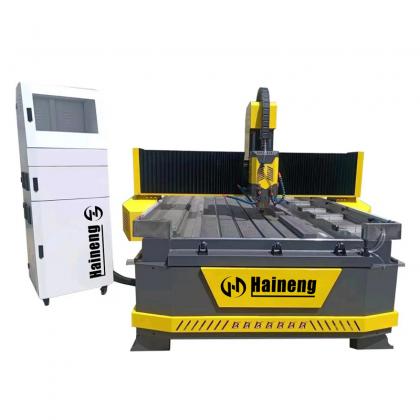

Marble Granite Engraving Machine
