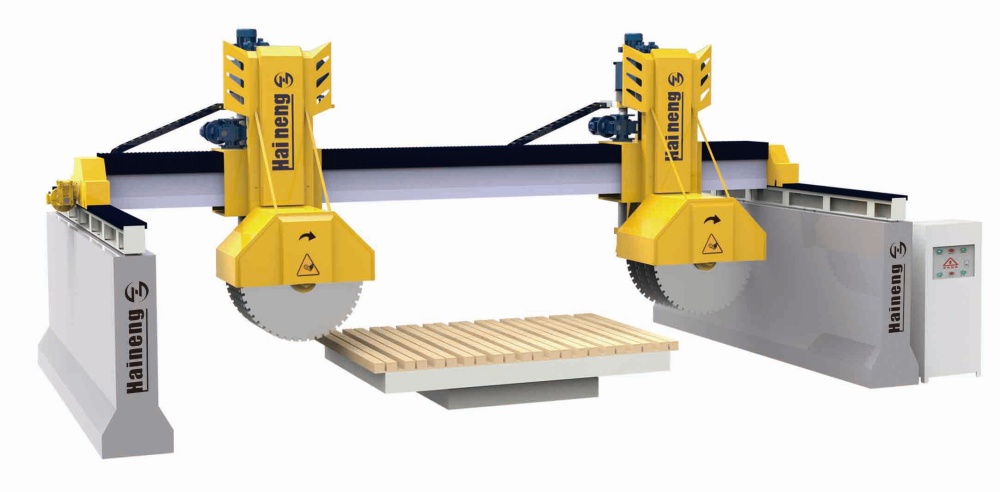

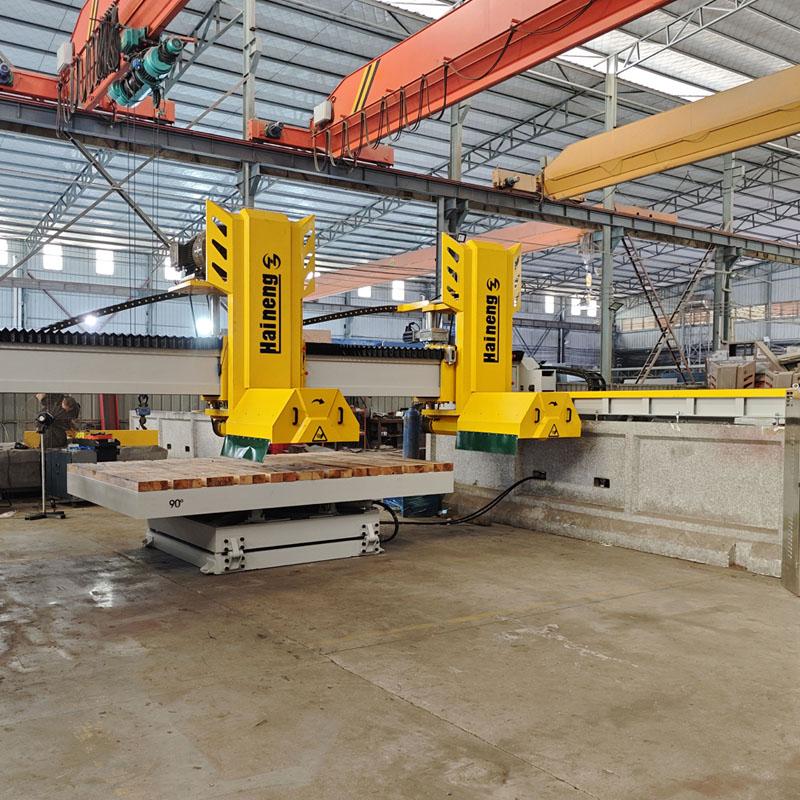

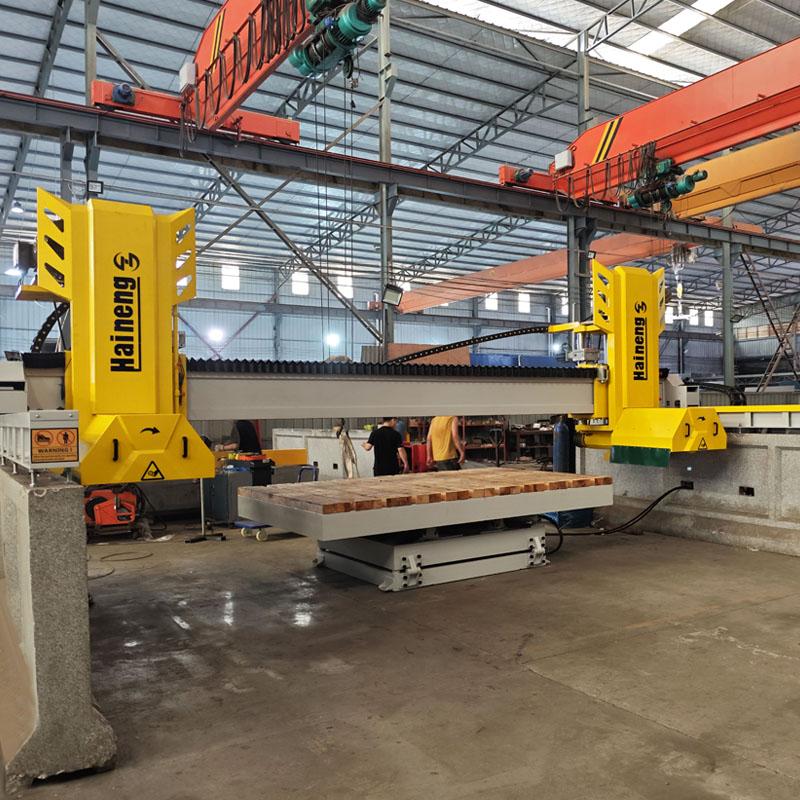

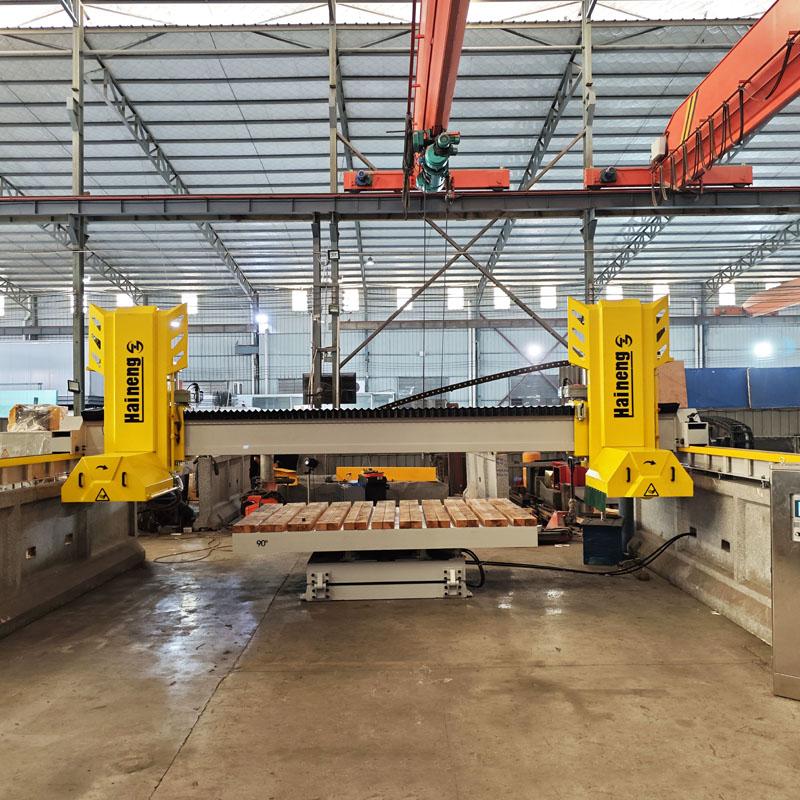

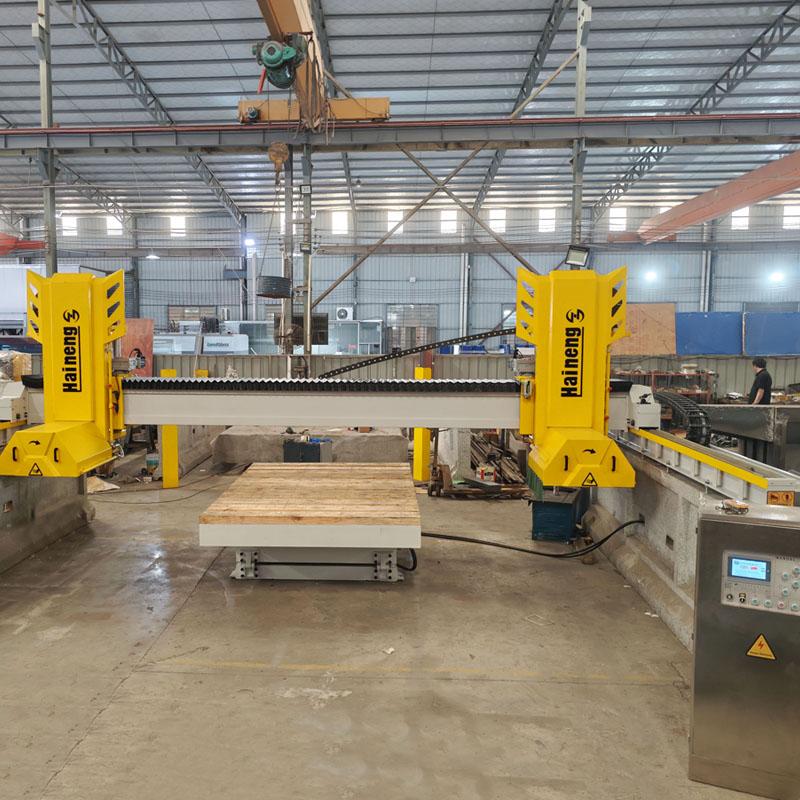

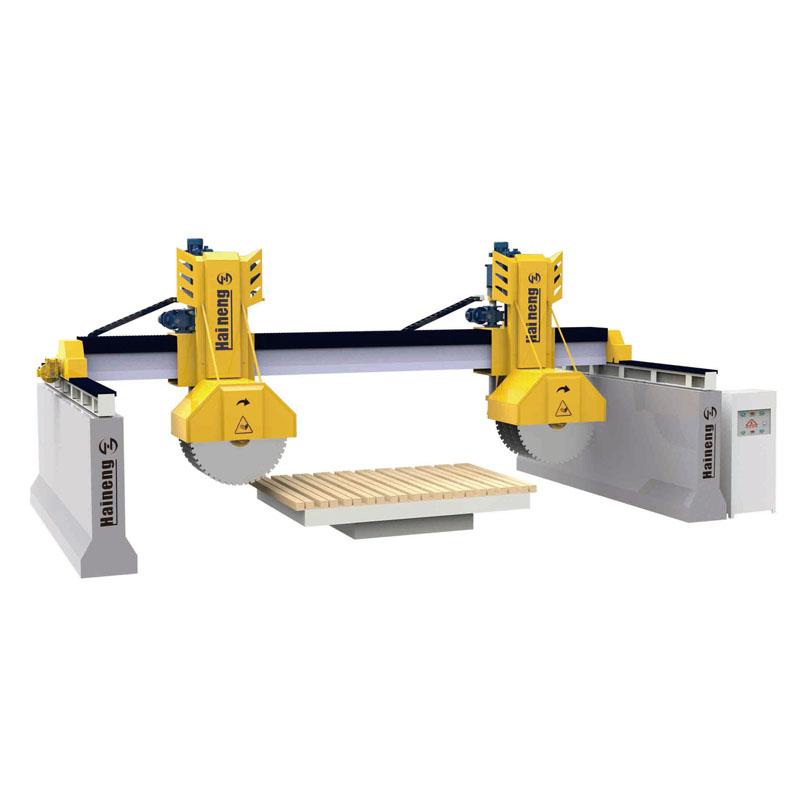

Double Head Mulit Blade Bridge Cutting Mahcine

This machine is suitable for cutting granite, marble, artificial stone, cement products and other materials.Equipped with two cutting heads for greater efficiency.

Brand:
HAINENG
Item NO.:
HSQ600-8 HSQ800-8
Payment:
T/T
Product Origin:
China
Color:
Yellow
Shipping Port:
Xiamen Port
Lead Time：
30 Days

350 Granite Marble Monoblock Bridge Sawing Machine

This machine is especially suitable for home decoration factory to cut stone slab, artificial stone, marble, granite and other home decoration materials.

500 Monoblock Bridge Saw infrared Stone Cutting Machine

This Stone Bridge Saw worktable can be turned 0-85 degree + 360 degrees rotation every 45 degrees automatic positioning, with arbitrary angle positioning and braking, the machine head automatically rotates 90 degrees + automatic tilt 45 degrees. It can cut rectangles, arcs, circles, octagons, and inverted corners.

625 Mitre Cut Bridge Saw

It designed to cut granite, marble, quartz and other natural and engineered stones, Blade tilt 45° automatically for mitre cut. Cast iron bridge V-Conical oil bath guide ways X axis Oil bath THK style high precision rollers Y axis Full oil bath with dust bellow covers The 24HP 50mm Arbor motor can handle up to a 36" blade." Z Travel is 18" Heavy duty rigid construction Super heavy duty steel legs included Rotating tilt table locks in any position with hard stops at 0, 45, 90,degree and 135 degree position, Innovative variable degree table locking system. Table size 10'.5"x 6'7" Has wireless remote that controls saw and table functions Hydraulic plunge miter Computer readout digital touch control Mitsubishi drive controllers AC Inverter duty motors for all 3 Axis Easy to sse programmable cut Digital touch screen read out Laser guide

Tilting Granite Marble Bridge Cutting Machine

Cast iron bridge Special tilting head with top motor V-conical oil bath guide ways X axis Oil bath THK style high precision rollers Y axis Full oil bath with dust bellow covers The 30HP 50mm Arbor motor can handle up to a 32" blade Heavy duty rigid construction Super heavy duty steel legs included Rotating tilt table locks in any position with hard stops at 0, 45, 90,degree and 135 degree position innovative variable degree table locking system. Table size 126"*79" Has wireless remote that controls saw and table functions Hydraulic Plunge Miter, Computer readout digital touch control Mitsubishi drive controllers AC inverter duty motors for all 3 Axis Easy to use programmable cut Digital touch screen read out

Infrared Bridge Stone Cutting Machine

Infrared stone bridge cutter optional with 360-degree rotation for automatic positioning with every 45 degrees, mainly used for cutting rectangles, octagons, arcs, and circles.

Middle Block Stone Bridge Saw

It can be used for border stone, gravestone, gravestone and other process-like rectangular thick materials and polygon thick materials(table rotation 0-45-90 degree is optional), especially suitable for high value, high precision and high efficiency demand users.

Bridge Double Directions Block Cutting Machine

This Stone Block Cutting Machine has the advantages of high cutting efficiency, high splicing precision, good flatness, high stability, simple operation and so on, especially suitable for high-value granite. The cutting of raw marble.

Multi-Blade Bridge Stone Cutting Machine

The Multi blade stone bridge saw has fine processing, stable performance, high automatic production efficiency, convenient installation, operation and maintenance, and meets the development demand of international stone processing.

Name	Unit	HSQ600-8	HSQ800-8
Maximum saw blade diameter	mm	600	800
Quantity of saw blades	pcs	1-8	1-8
Saw blade shaft diameter	mm	80	100
Maximum working size	mm	3000X2000X150	3000X2000X250
Number of aircraft heads	pcs	2	2
Workbench size	mm	3000X2000	3000X2000
Rotation Angle of the workbench	°	0-90°	0-90°
Main motor power	kw	37*2=74KW	37*2=74KW
Total power	kw	84.4KW	85.2KW
Water consumption	m³/h	6	7
Overall dimensions	mm	7300X5500X3600	7300X5500X3600
Total weight	kg	11000	12000
