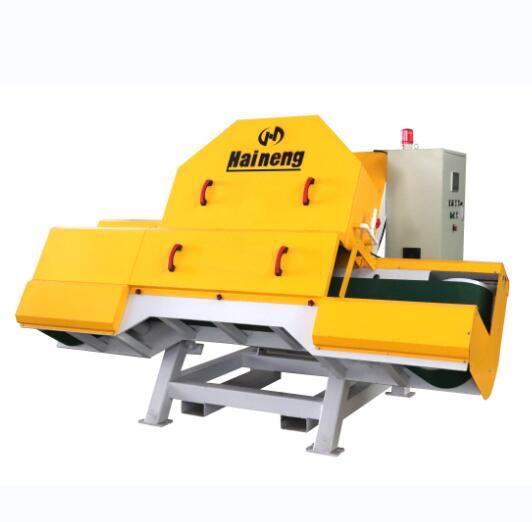

Thin Stone Veneer Saw

Our patented veneer saws make cutting thinstone veneer flats and 90-degree corners quick, simple, and profitable. The unique v-structured cutting surface easily cuts split-face or natural finished sandstone, brick, limestone, and other hard stones up to 16” high and 2.5” thick. and we are the 1st factory to design and make this machine in China.


  • Brand:

    HAINENG
  • Item NO.:

    ZQ-1000/22 / ZQ-1200
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    Yellow & gray
  • Shipping Port:

    Xiamen port
  • Lead Time:

    15 days
Product Detail

Product Introduction


Thin Stone Veneer Saw is an integral structure, compact structure, easy to install and transport.

The main control components are international brand components, cutting the main motor and cutting conveyor belt are stepless speed regulation.

The working mode of this machine adopts the continuous cutting mode of assembly line, which is mainly used for cutting the plane of irregular elliptical stones such as cobblestone and raw stone.

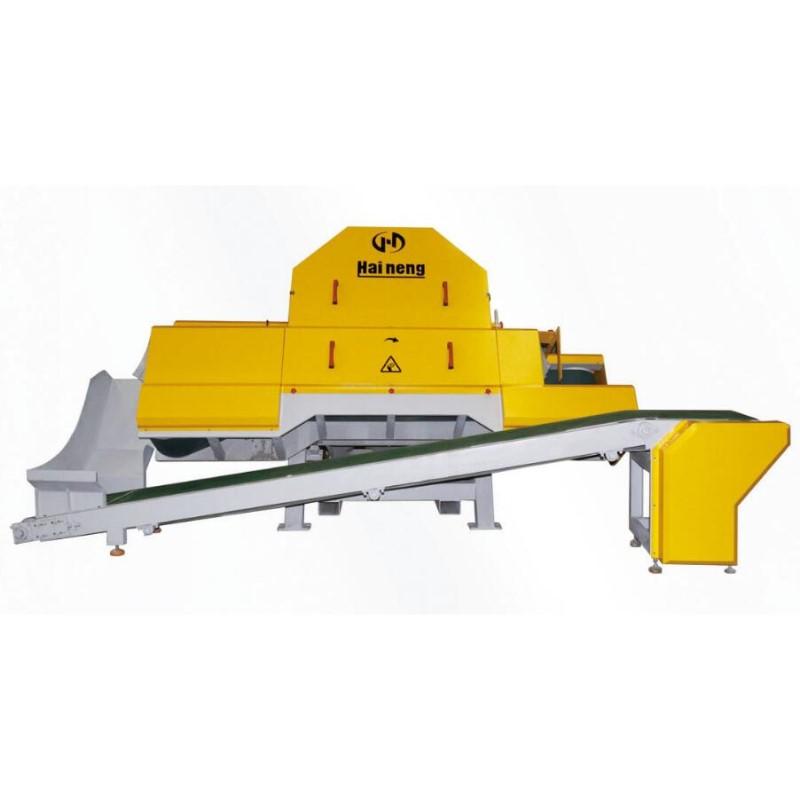

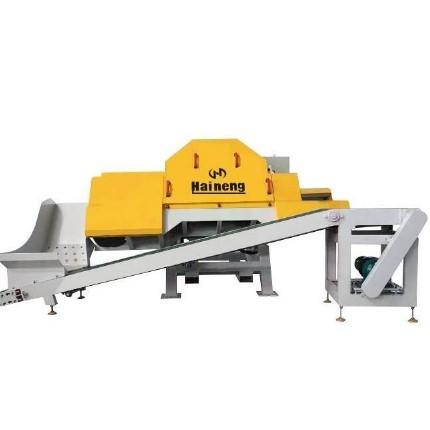

Thin Stone Veneer Saw

Technical Parameters

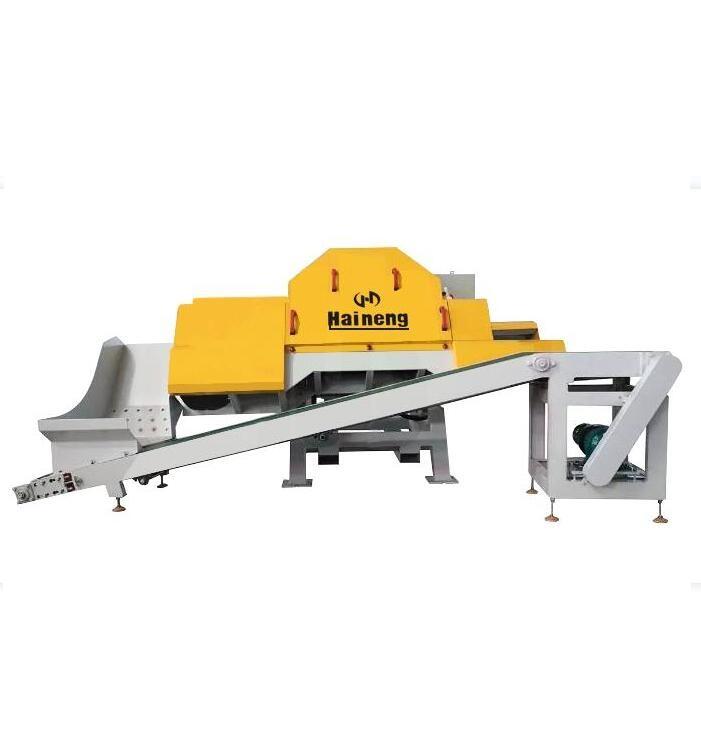

Thin Stone Veneer Saw

Type

unit

ZQ-1000/22

ZQ-1200/45

Max. Blade diameter

mm

Φ800-Φ1000

Φ1000-Φ1200

Max. Cuttingthickness

rpm

380

480

Max. Cuttingwidth

mm

380

480

Main motor power

kw

22

45

Total power

kw

22.75

45.75

Water consumption

m³/h

4

4

Dimension                   (L×W×H)

mm

2850×1950×1750

3300×2200×2200

Total weight

kg

2200

3100

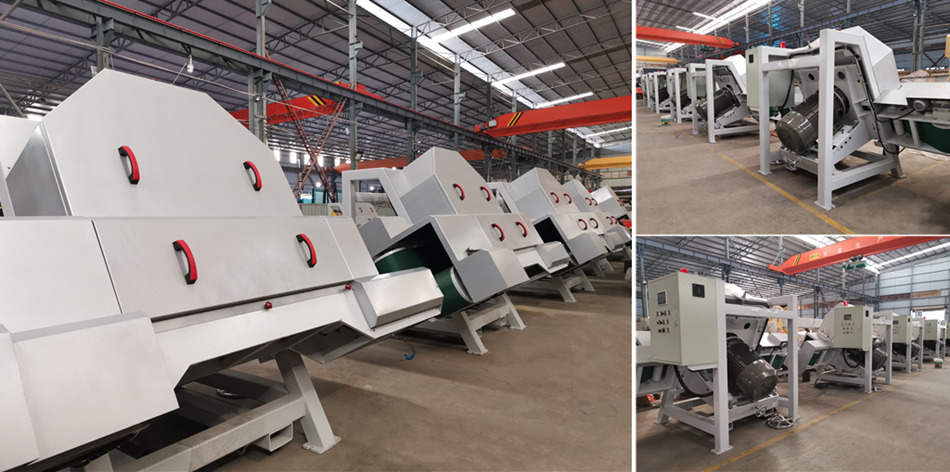

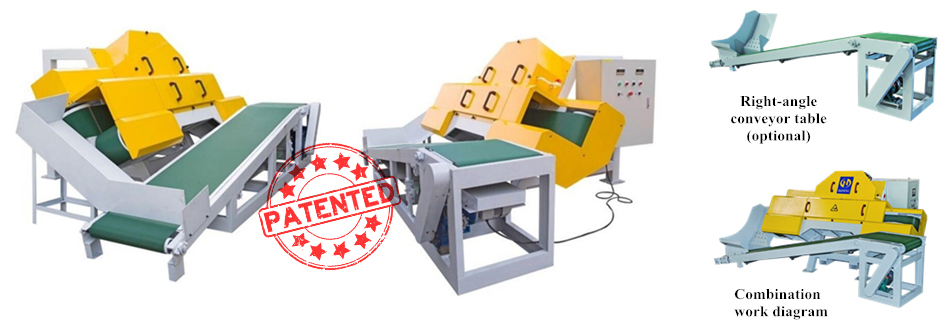

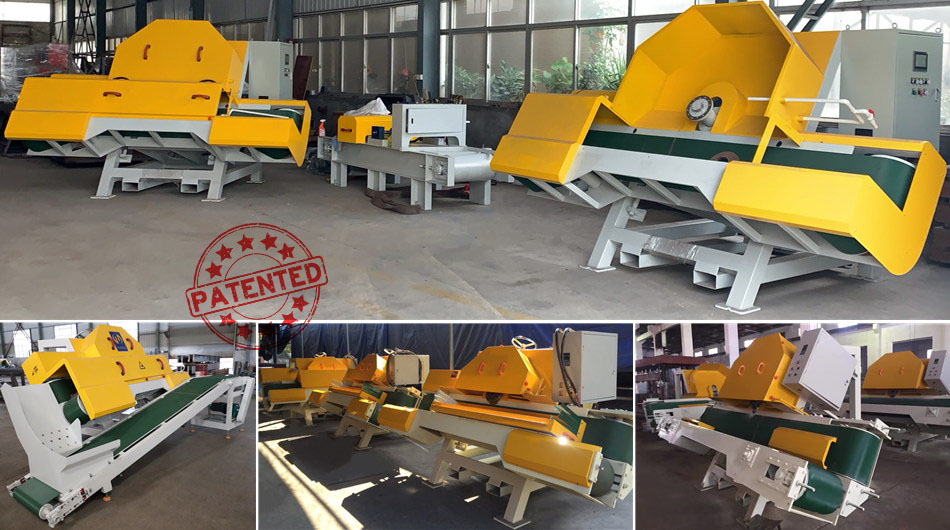

Thin Stone Veneer Saw

Thin Stone Veneer Saw

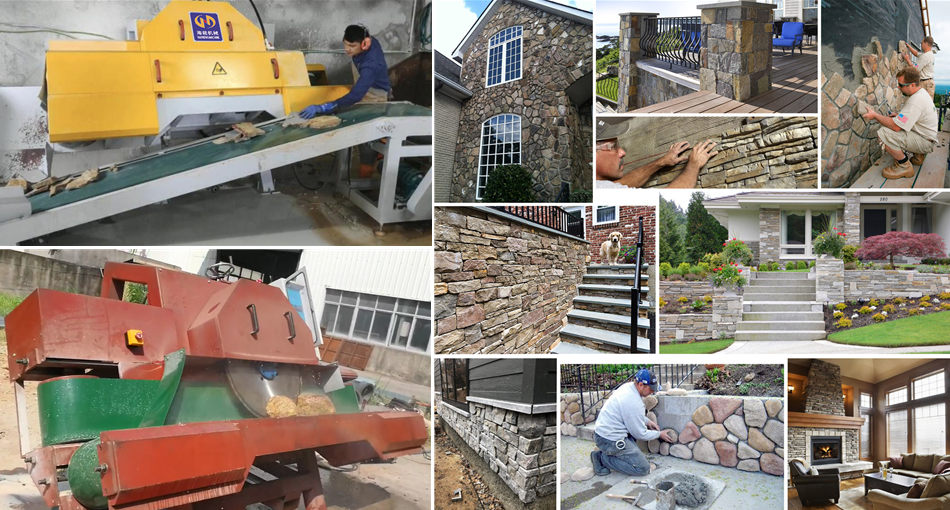

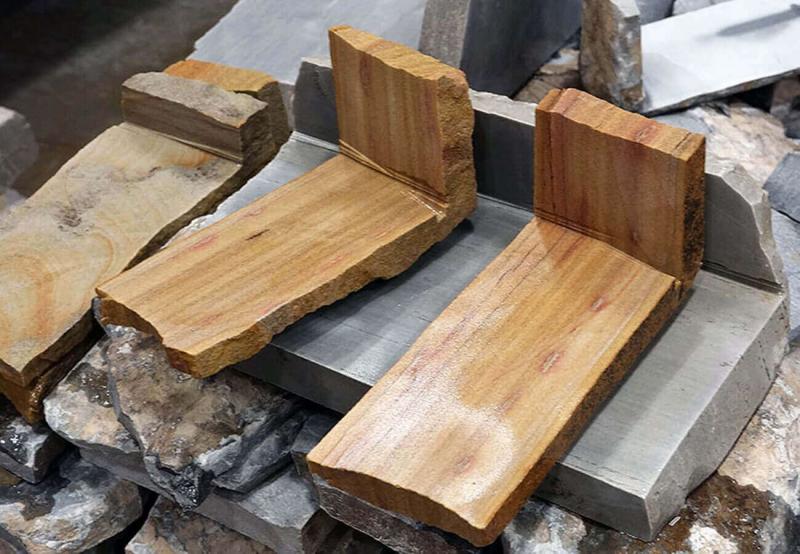

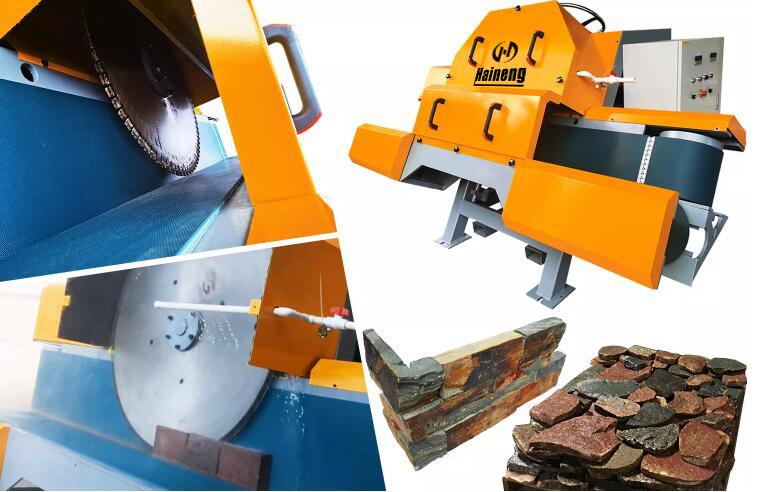

Processing

Thin Stone Veneer Saw

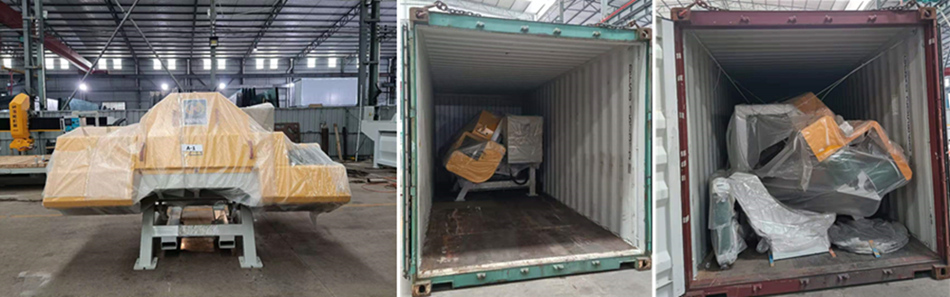

Loading Container

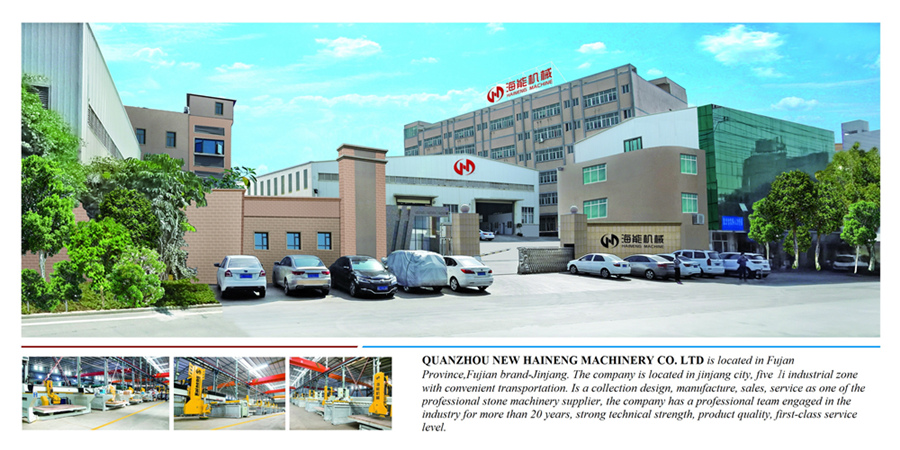

Company Information
