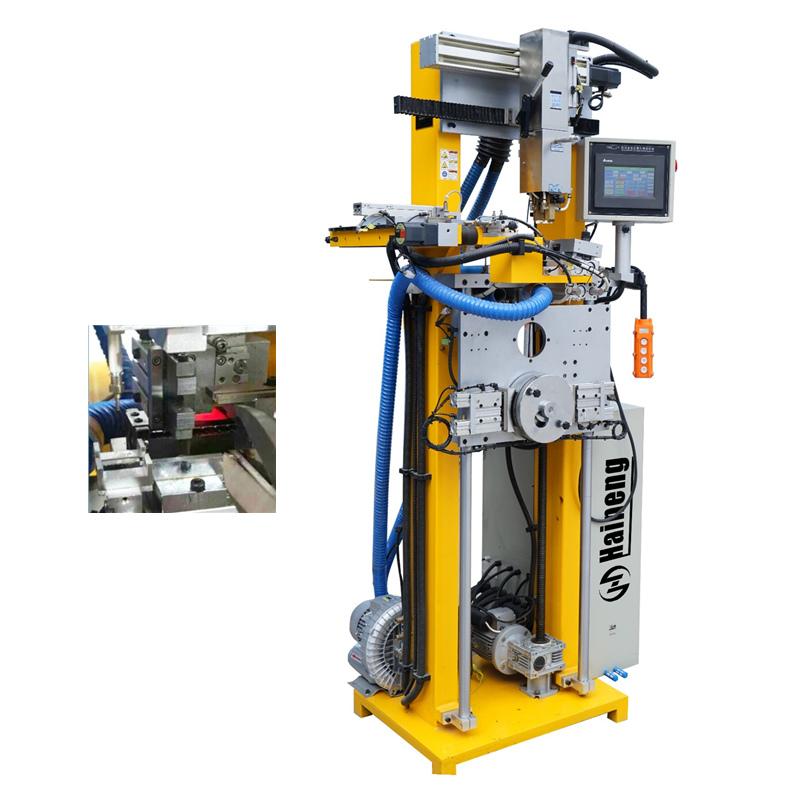

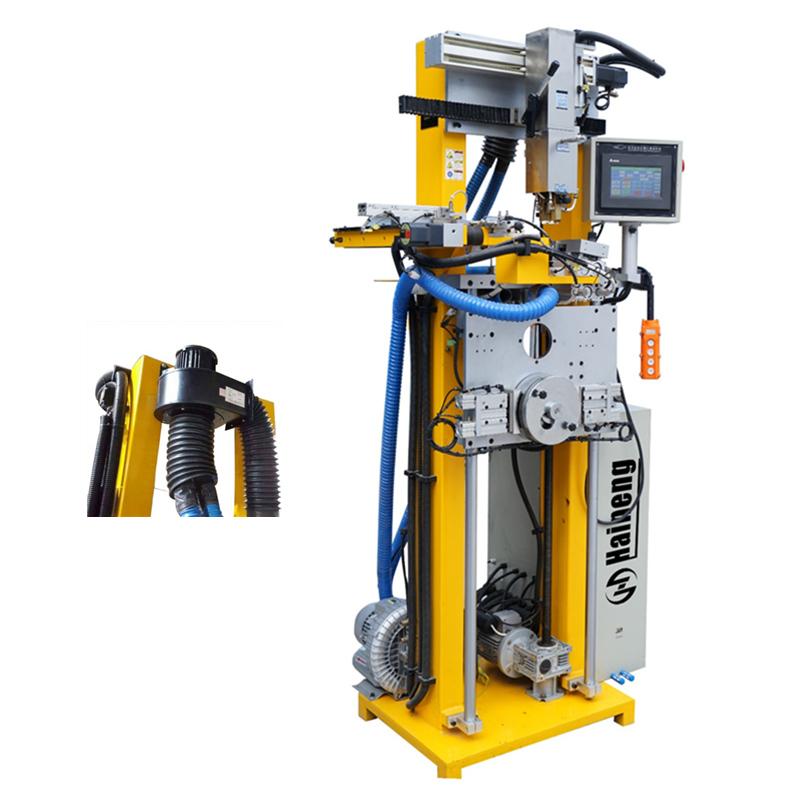

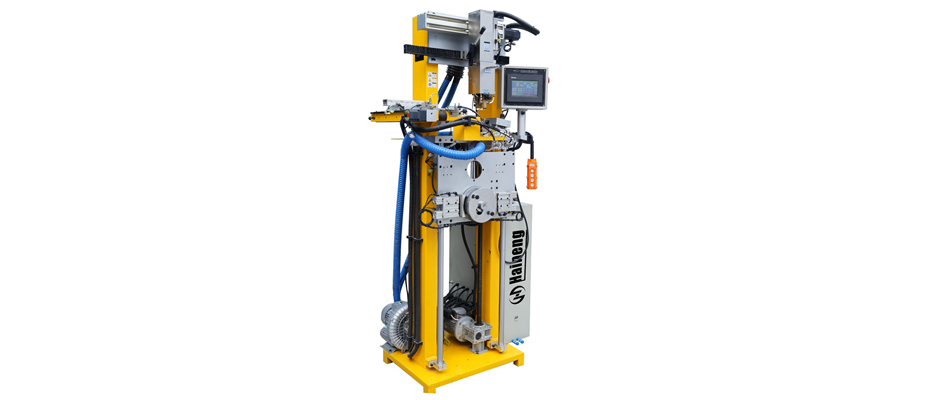

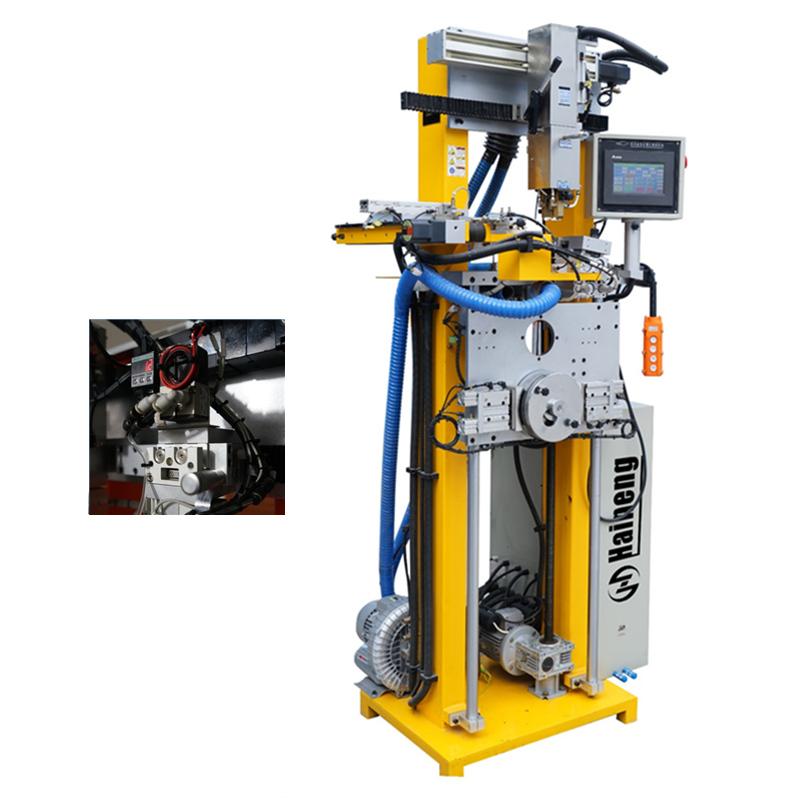

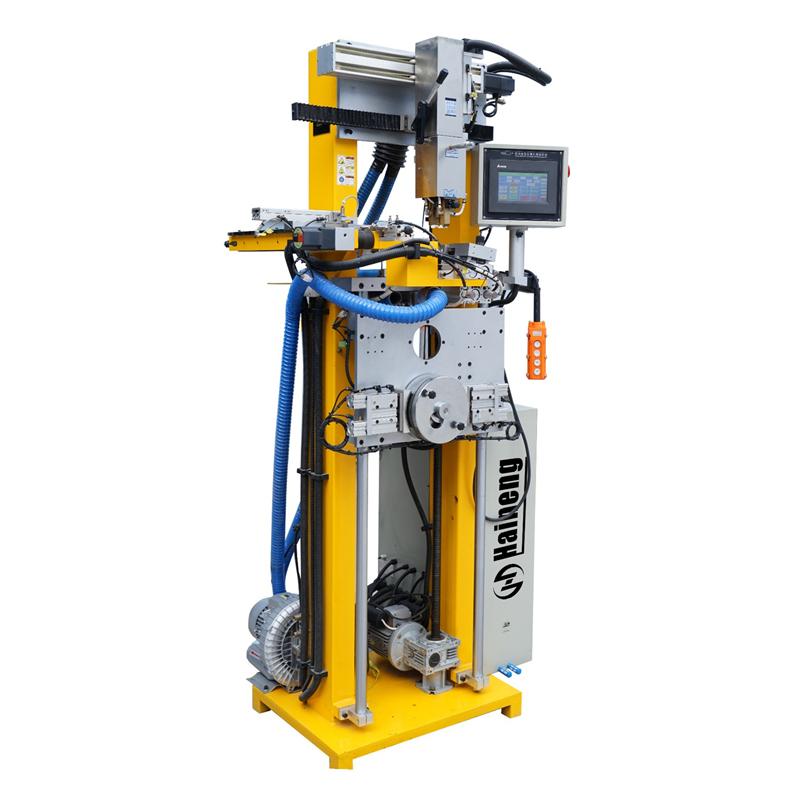

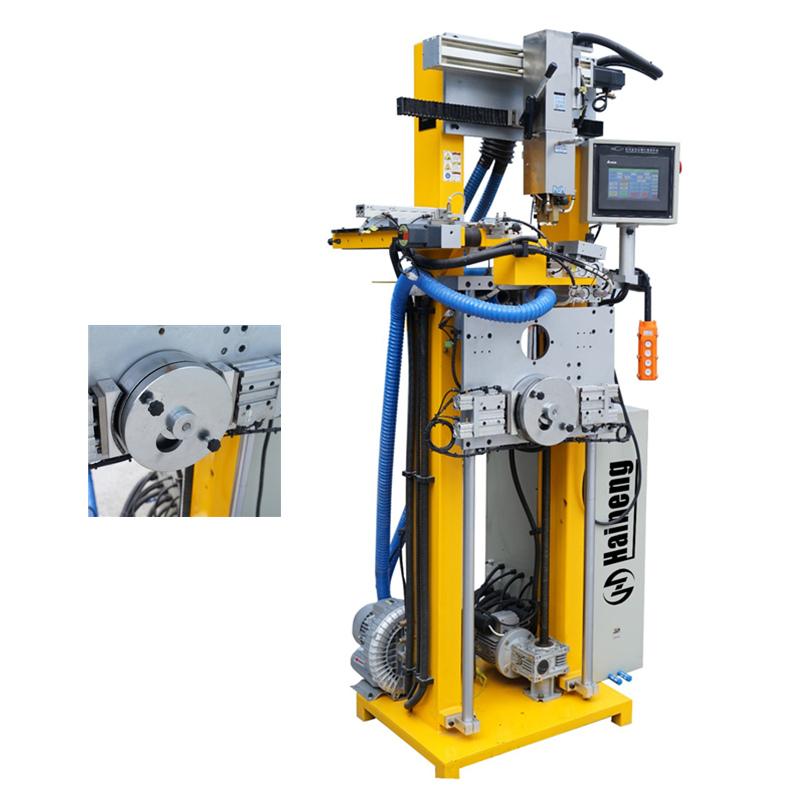

Fully Automatic Brazing Machine for Diamond Saw Blade Segment Brazing Machine

Our DQA-EP series is fully automatic brazing machine for big saw blade as diameter big than 500mm.

  • Brand:

    HAINENG
  • Item NO.:

    JHJ-EP2500/3700
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    yellow
  • Shipping Port:

    Ningbo port
  • Lead Time:

    15 days
Product Detail

Product Introduction

Our DQA-EP series is fully automatic brazing machine for big saw blade as diameter big than 500mm. It using our innovative power-driven moving and positioning system for big saw blade, and innovative brazing system, make the machine simple, stable and efficient.


Technical Parameters

Model

JHJ-EP2500

JHJ-EP3700

Brazing Diameter(mm)

φ600~φ2500

φ1000~φ3700

Welding Error(Verticality)(mm)

≤±0.03

≤±0.03

Welding Error( Linearize)(mm)

≤±0.03

≤±0.03

Segment Positioning Error(mm)

≤±0.08

≤±0.08

Brazing Capacity(pc/h)

180-500

180-450

Segment Size(L*T*H)(mm)

0.6

0.6

Rabbet of the Blade(mm)

≥0.2

≥0.2

Power(w)

2000

2200

Water consumption(m3/h)

2

2.5

Weight(kg)

240

420

Size(mm)

1200×1100×2200

1100×1200×2650


Note:Machine is not including induction heater,air compressor and water pump.

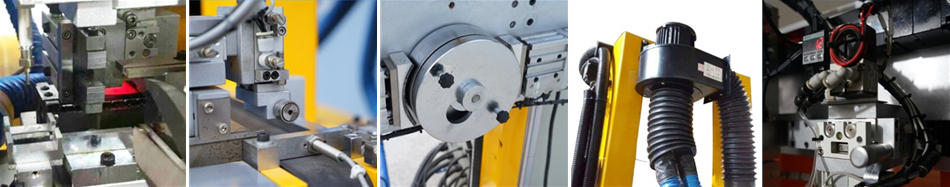

Diamond Segment Brazing Machine


Processing


Loading container

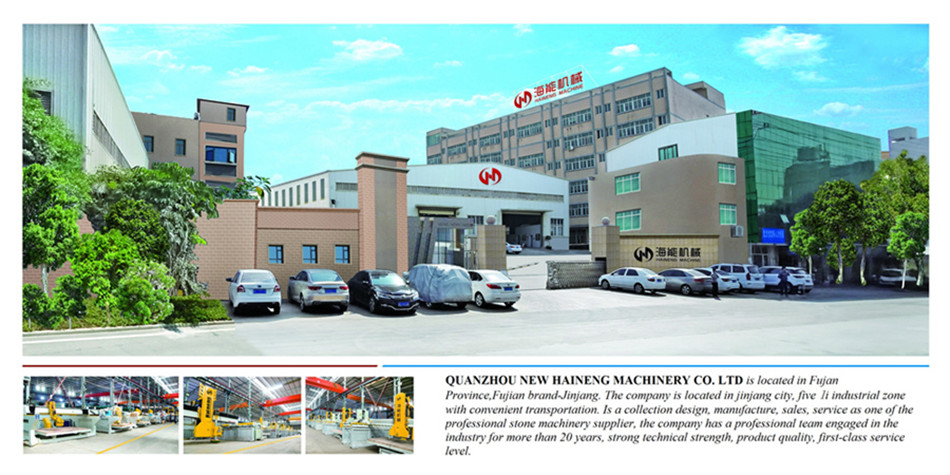

Company information


Related Products

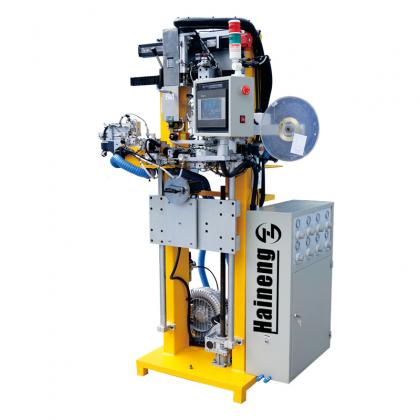

Fully Automatic Brazing Machine for Diamond Core Drill-Diamond Segment Brazing Machine
Fully Automatic Brazing Machine for Diamond Core Drill
Our DQW400-EP series is high intelligen and precision machine in diamond core drill brazing . it using our innovative brazing system to make the brazing more accurate, stable and efficient.
Fully Automatic Brazing Machine for Diamond Saw Blade
Fully Automatic Brazing Machine for Diamond Saw Blade Welding Machine
Our DQA-EP series is high intelligen and precision machine in diamond saw blade brazing. It using our innovative brazing system to make the brazing more accurate,stable and efficient. Our fully automatic brazing machine is customized product which has multiple choices for different saw blade brazing. Customized project including automatic level,brazing range and brazing function,etc.
stone groove cutting machine
Automatic Plane Blind Road Stone Slotting Machine
Blind road stone grooving cutting machine with special equipment antiskid decorative stripes, automatic replacement of the spindle, the machine design and reasonable structure, strong body ,automatic feed.
Automatic Stone Slab Polishing Machine
Automatic Stone Line Polishing Machine
Discover the Automatic Marble Polishing Machine, a top - tier choice in the stone processing industry. This machine, suitable for both Stone Slab Polishing Machine and Marble Slab Polishing Machine operations, offers high - precision polishing, adaptability to various stones, and boosts efficiency.
Stone Slab Scanner
Stone Large Slab Scanner machine
A stone slab scanner is a device used to scan, measure and digitize stone slabs. These devices are commonly used in the stone processing and construction industries to ensure the accuracy and quality of marble, granite and other stone slabs.
Edge Grinder Machine

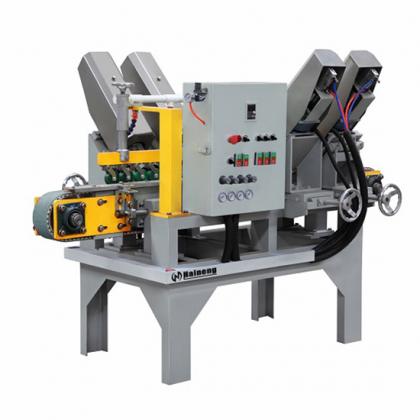

Multi-Performance Edge Grinder Machine
This edge grinder is the most efficient and practical combination edge grinding line equipment for stone processing.

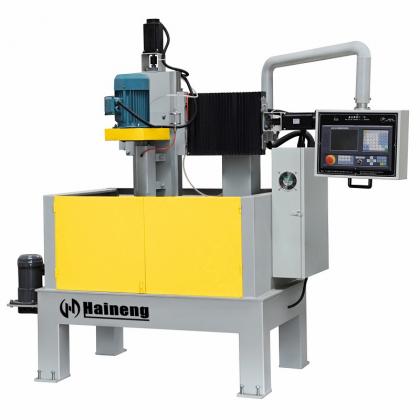

Plate Drilling Machine
Automatic Table Top Back Bolt Plate Drilling Machine
Plate Drilling Machine is a stone dry hanging back bolt drilling special equipment.
Marble Granite Engraving Machine

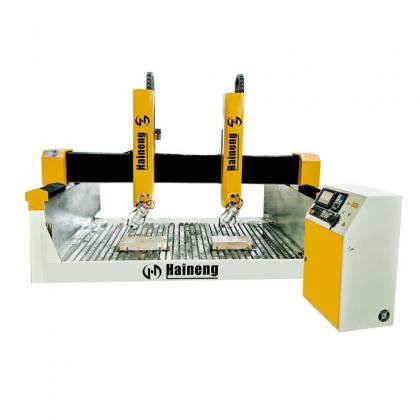

4 Axis CNC Multifunctional Double-Head Stone Engraving Machine
