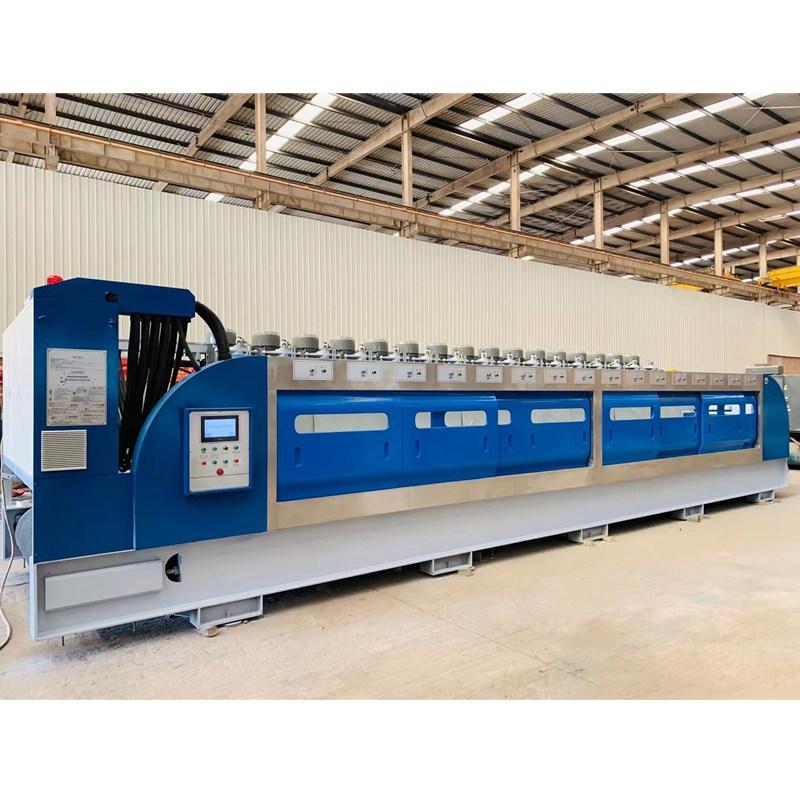

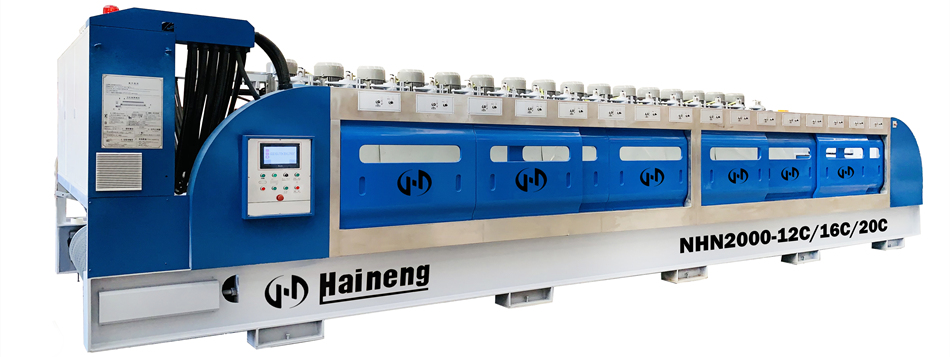

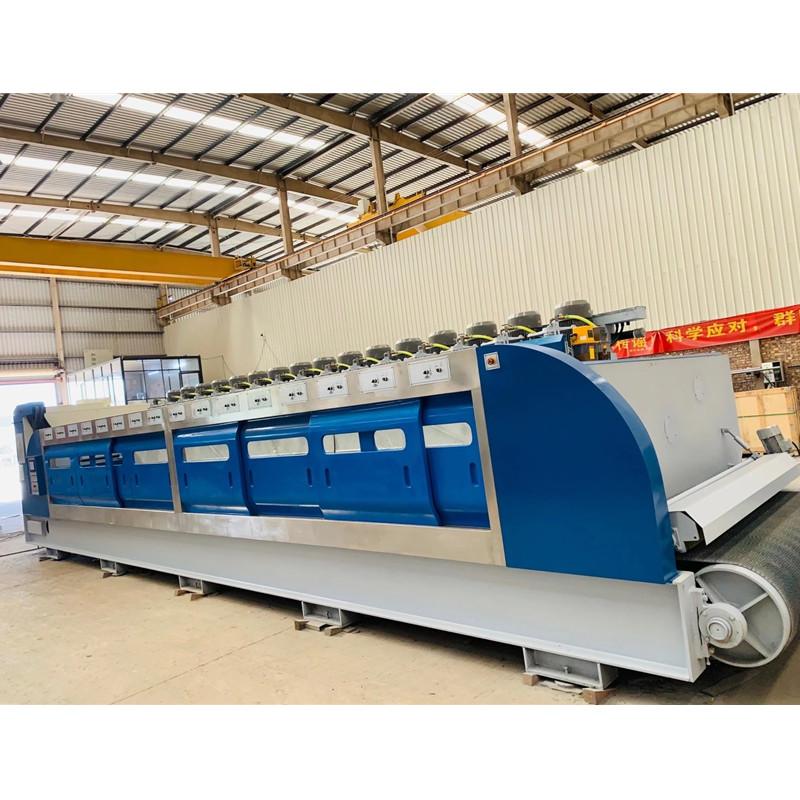

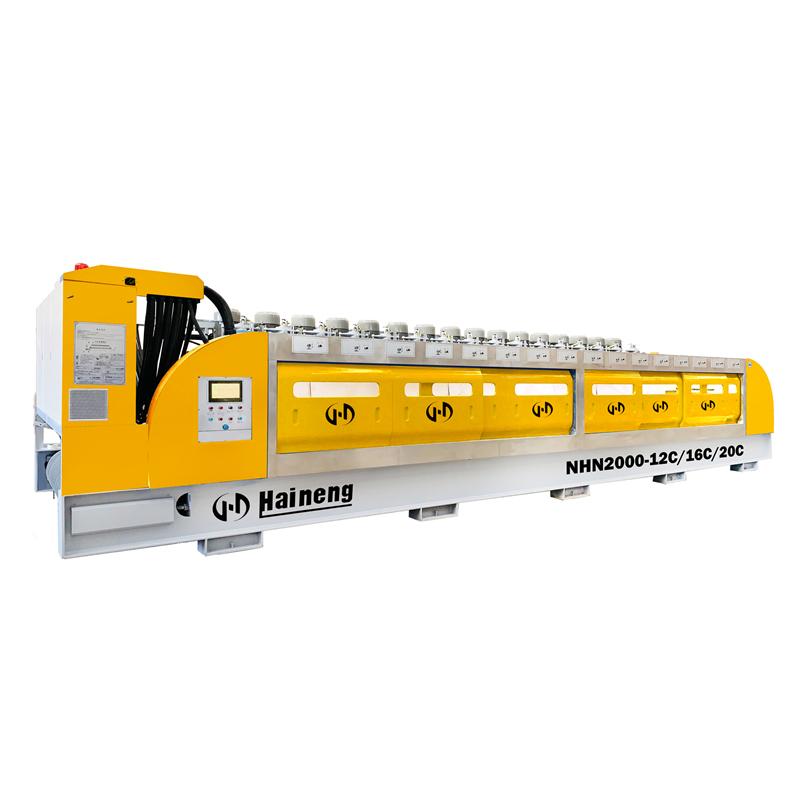

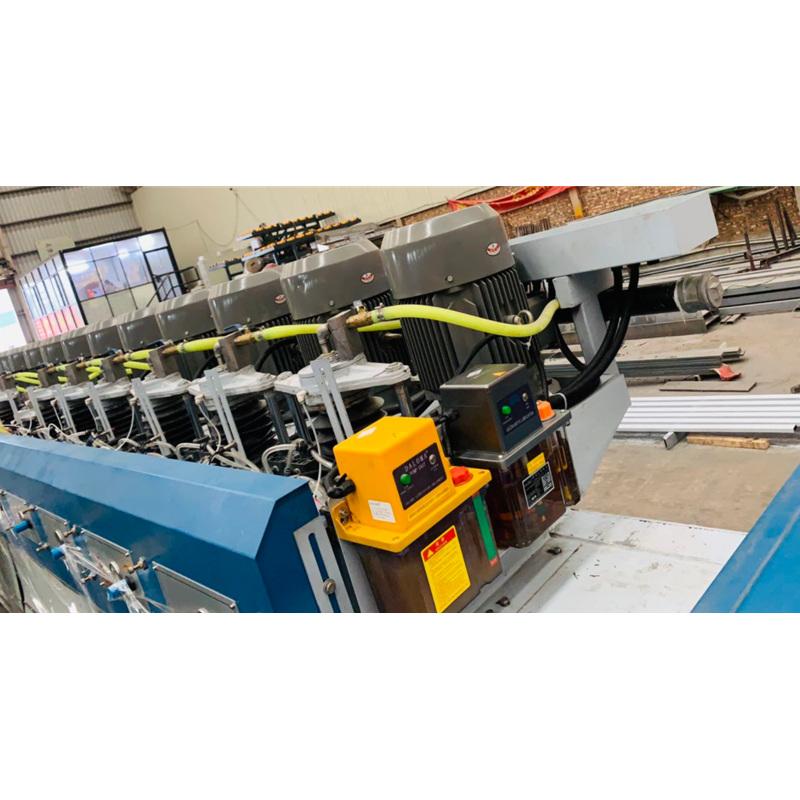

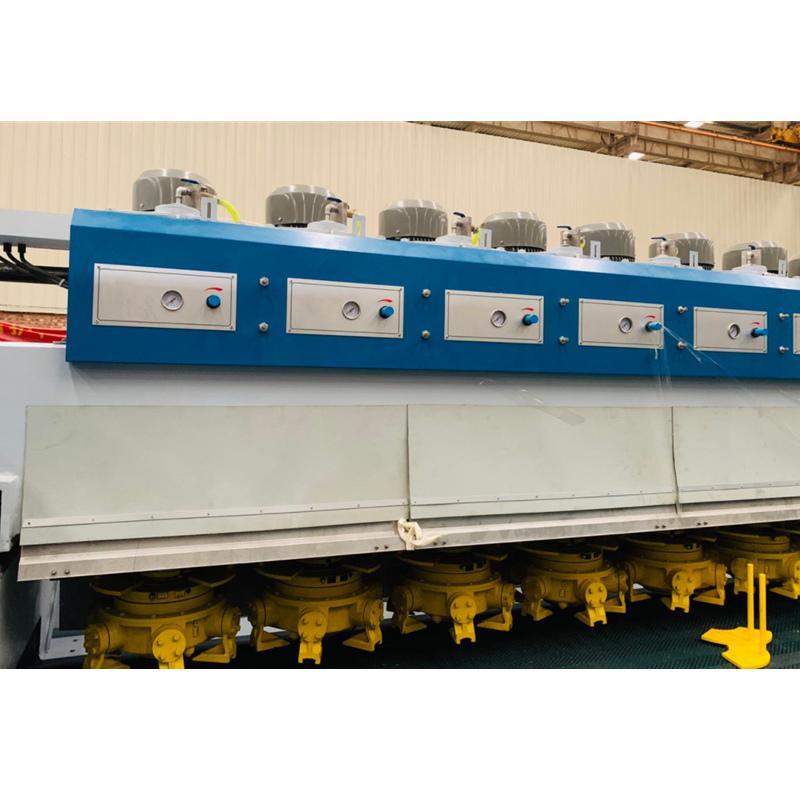

Automatic Stone Line Polishing Machine

This machine is for polishing marble slabs surface..Automatic Polishing Machine adopts foreign advanced design and automatic controlling with the demand of domestic market .Using the most advanced high-quality construction, rational structure, high stability and efficiency, and energy saving operation.it has the advantage of stable performance , high output and low failure rate .
  • Item NO.:

    HN-12C/16C/18C/20C
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    Customizable
  • Shipping Port:

    Xiamen port
  • Lead Time:

    25 days
Product Detail

Product Introduction

This Automatic Polishing Machine adopts foreign advanced design and automatic controlling with the demand of domestic market . it has the advantage of stable performance , high output and low failure rate . The machine select standard casting iron , steel , the brand electronic appliances , bearing and other components from Germany , Japan and Taiwan .

The controlling system of the machine adopts PLC terminal controlling , and sets the parameter by the LCD touch - screen as the man - machine interface . During running , this equipment has designed The indicator of failure and the alarm system of abrasive raw consumption . This machine is suitable for grinding and polishing large plate of marble or granite . The conveying beer advancing speed and the cross beam moving speed are controlled by transducers . The pressure of disc and the grinding width can be adjustable freely within the setting area . The machine can automatically identify the shape of plates . Every disc (grinder ) can automatically life up and down according to the identified shape and track records the grinding of plates at the same time . This Model can choose six claws flicked grinder or marble disc . The whole machine are produced by standardized production .It’s performance reaches the domestic advanced level .

Automatic Stone Line Polishing Machine

Technical Parameters

Type

Unit

HN-12C

HN-16C

HN-18C

HN-20C

Quantity of polishing head

pcs

12

16

18

20

Useful working width

mm

600-2100

600-2100

600-2100

600-2100

Useful working thickness

mm

15-50

15-50

15-50

15-50

Transfer speed

mm/min

0-3500

0-3500

0-3500

0-3500

Water consumption

m³/h

22

25

26

28

Motor power of grinding head

kw

9/11/15

9/11/15

9/11/15

9/11/15

Total power

kw

137

181

203

225

Overall dimension(L×W×H)

mm

9600×3200×2300

11600×3200×2300

12600×3200×2300

13600×3200×2300

Gross weight

T

24

27

28

29

Automatic Stone Line Polishing Machine

For Marble:

Automatic Stone Line Polishing Machine

For Granite:

Automatic Stone Line Polishing Machine

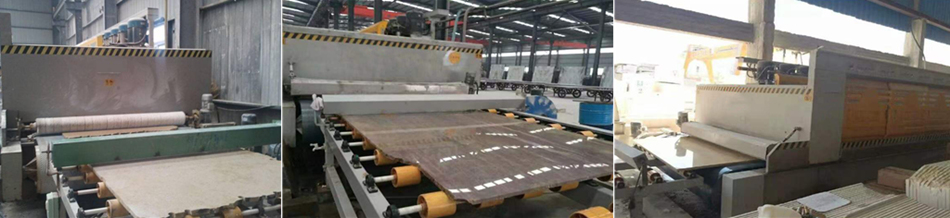

Processing

Automatic Stone Line Polishing Machine

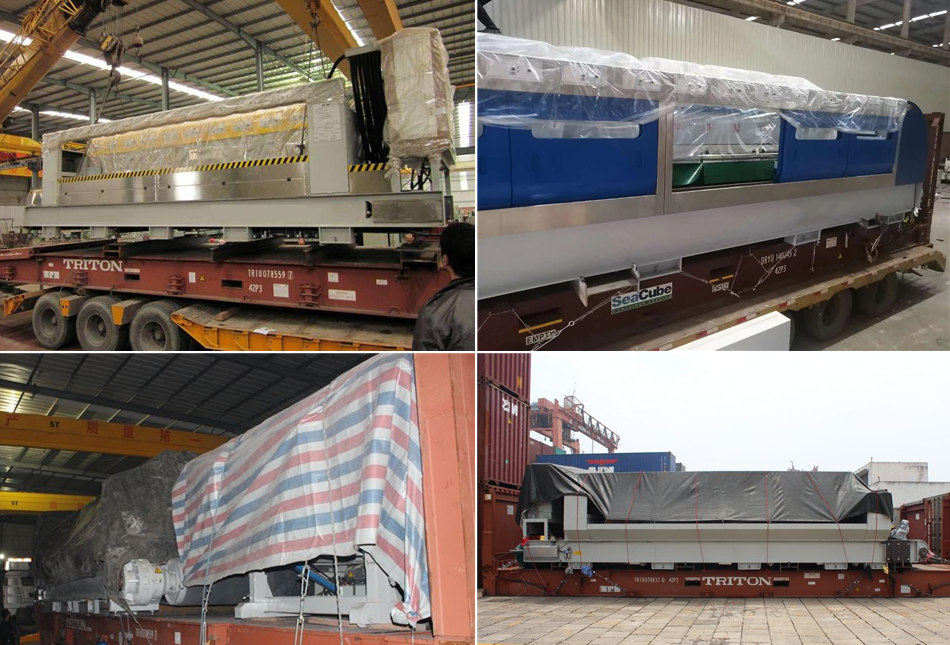

Loading Container

Automatic Stone Line Polishing Machine

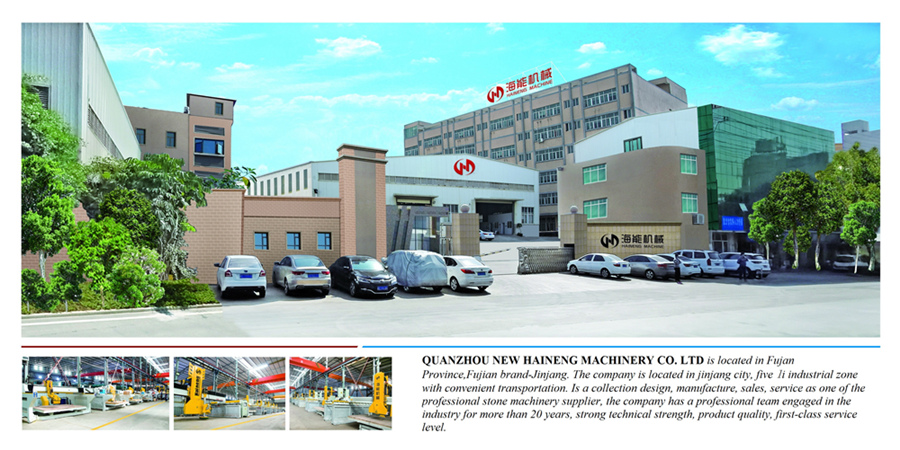

Company Information
