Flat And 90 Degree Mighty Stone Thin Veneer Saw

Stone Thin Veneer Saw adopts the continuous cutting mode of the pipeline, which is mainly used for cutting the plane of irregular elliptical stones such as goose warm stone.Double Blades Thin Veneer Saw make cutting flats and 90-degree corners quick, simple, and profitable.

  • Brand:

    HAINENG
  • Item NO.:

    ZQ-1000/22*2,ZQ-1200/45*2
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    Yellow
  • Shipping Port:

    Ningbo port
  • Lead Time:

    15 days
Product Detail

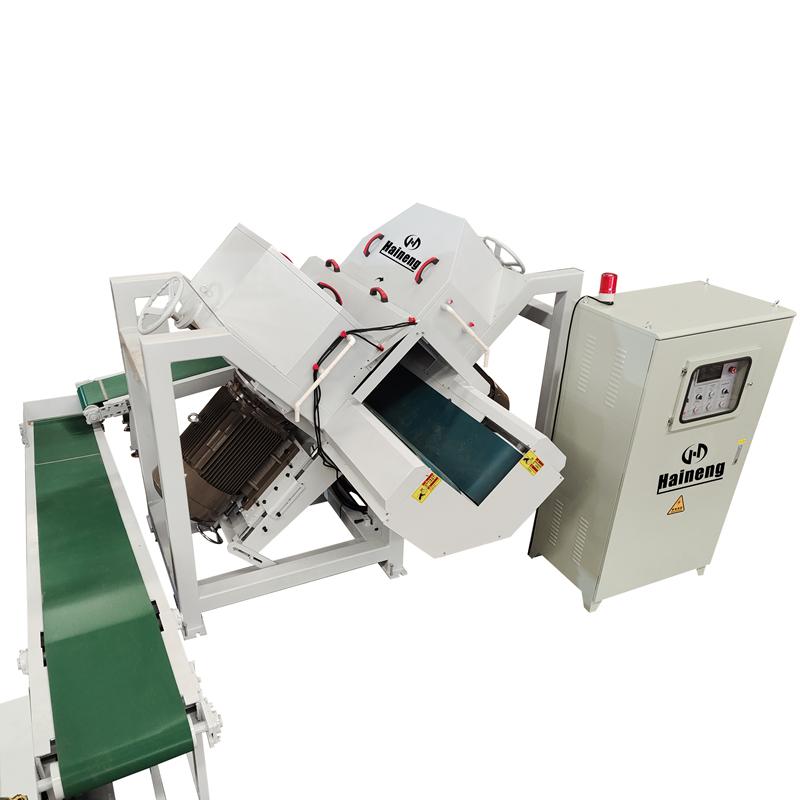

Double Blade 90 Degree Mighty Stone Thin Veneer Saw


Double Blades Stone Thin Veneer Saw Product Introduction:

The Stone Thin Veneer Saw Machine is a monolithic structure with compact structure and convenient installation and transportation.The main control components are all international brand components, and the cutting main motor and cutting conveyor belt are all stepless speed regulation.The working mode of the machine adopts the continuous cutting mode of the pipeline, which is mainly used for cutting the plane of irregular elliptical stones such as goose warm stone.


Stone veneer saw make cutting flats and 90-degree corners quick, simple, and profitable. The unique v-structured cutting surface easily cuts split-face or natural finished sandstone, brick, limestone, and other hard stones up to 16"  high and 2.5"thick.


The working mode of the machine adopts the continuous cutting mode of the pipeline , which is mainly used for cutting the plane of irregular elliptical stones such as goose warm stone.

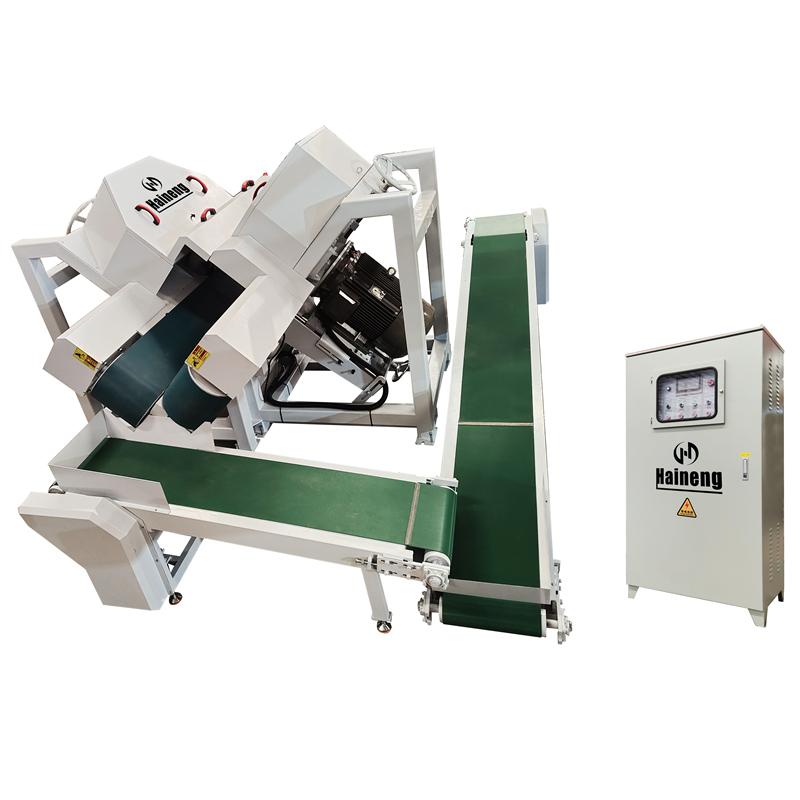

Double Blades Stone Thin Veneer Saw



Stone Thin Veneer Saw Technical Data:

Model

ZQ-1000/22×2

ZQ-1200/45×2

Main Motor Power(kw)

22kw(30HP)×2



45kw(60HP)×2

Electricity

3 phases,380V,50Hz (Customizable)

Amperage

(86/43A)×2



(172/86A)×2

Water Consumption(m⊃3;/h)

4



4

Blade Size(mm)

800-1000

1000-1200

Blade Speed Standard(adjustable)

Max.900rpm.

Max.780rpm.

Max.stone height (mm)

0-350

0-450

Saw blade adjustable distance(up/down)(mm)

0-120

0-250

Saw blade adjustable distance(back/forth)(mm)

0-200

0-250

Max.stone thickness(mm)

20-220

20-270

Conveyor Belt Length*width*thickness(mm)

5970×280×7

6800×400×7

Conveyor Belt Speed(Adjustable)(mm/min )

600-2450

600-2450

Max.Cutting Depth(mm)

280

350-450

Dimensions (L*W*H)(mm)

3050×3000×1800

3550×3500×2200

Machine Weight(kg)

4500



6000

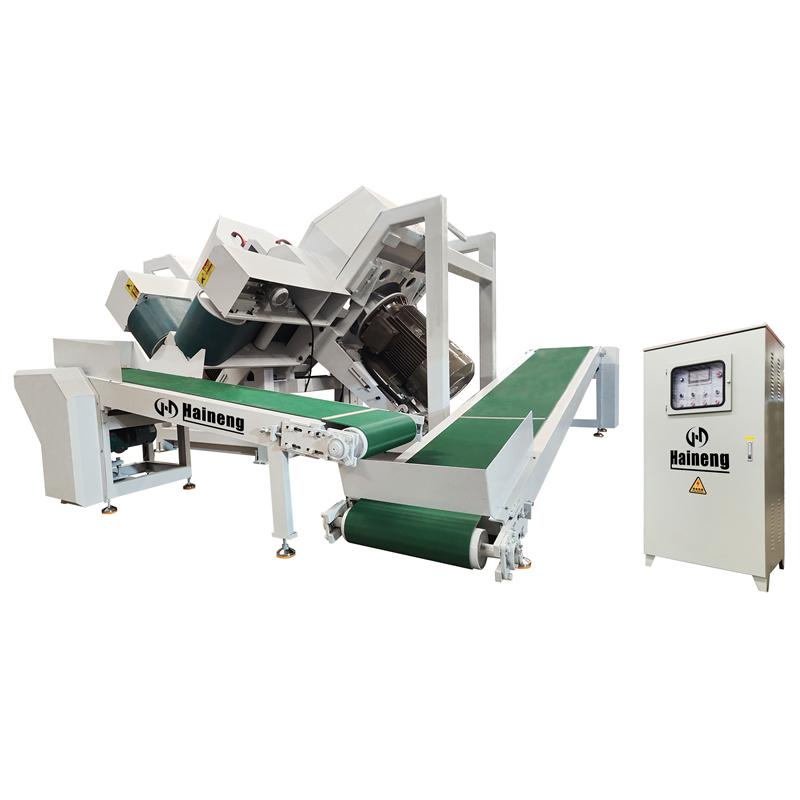

Stone Thin Veneer Saw
