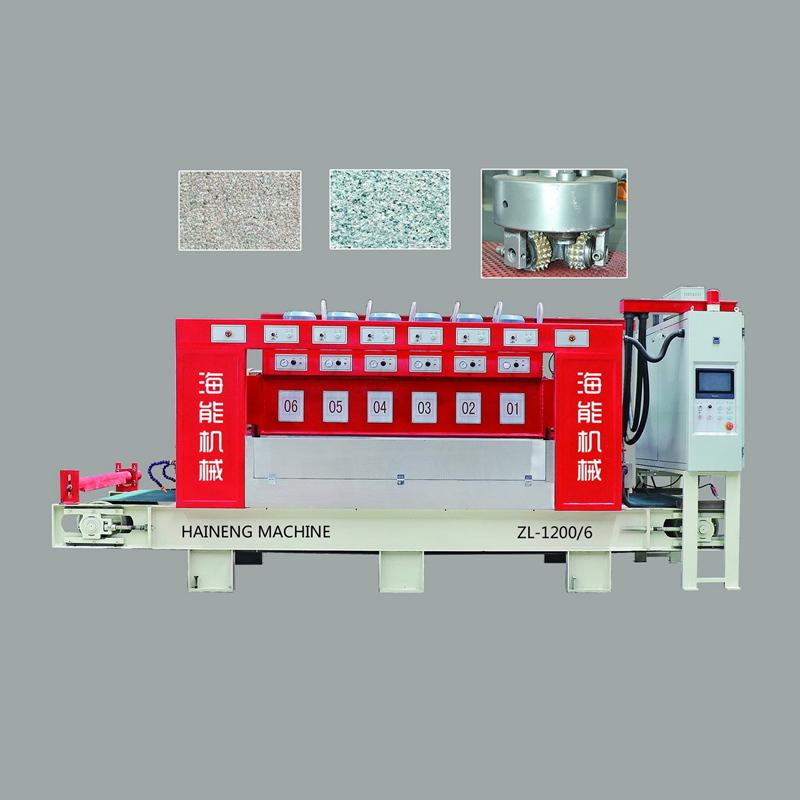

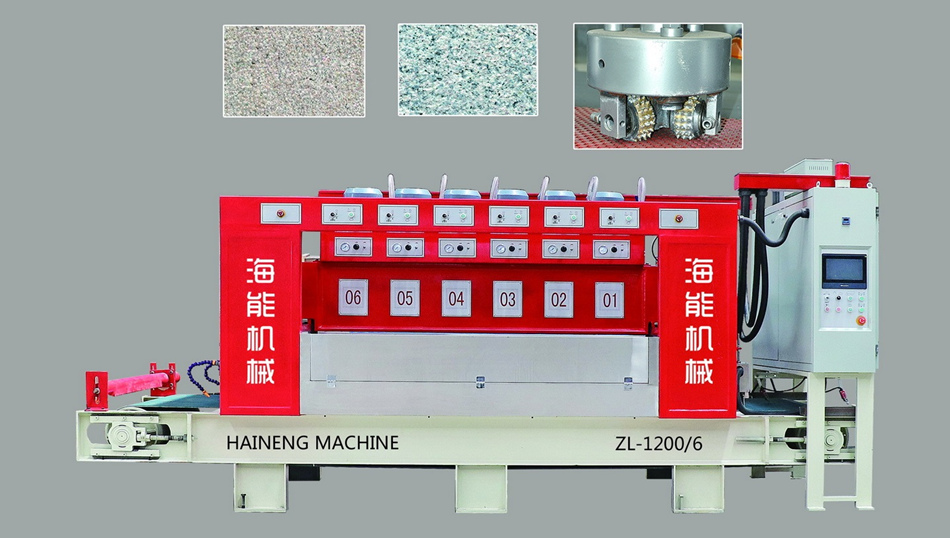

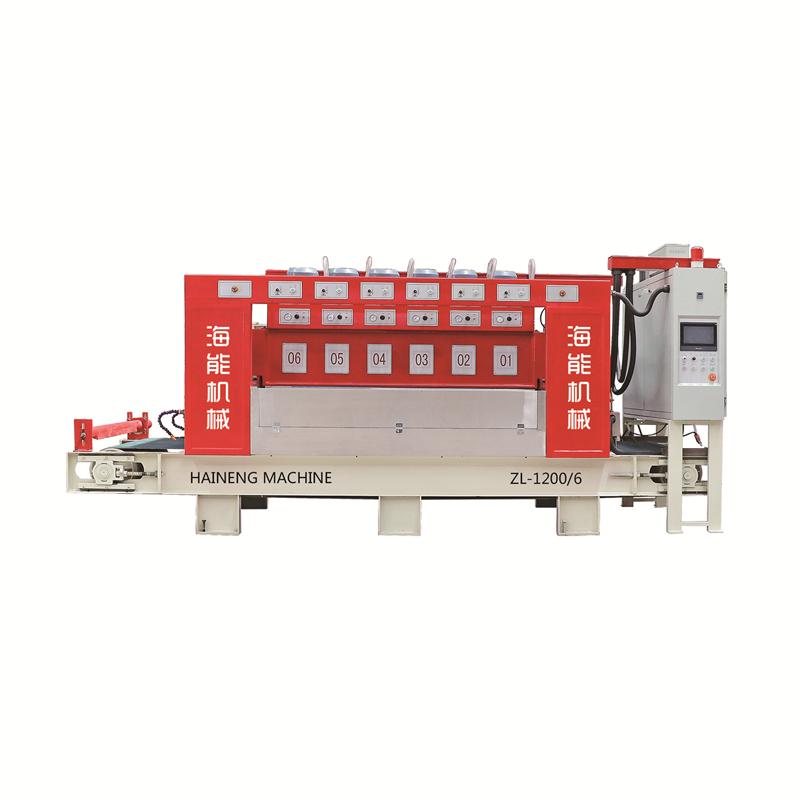

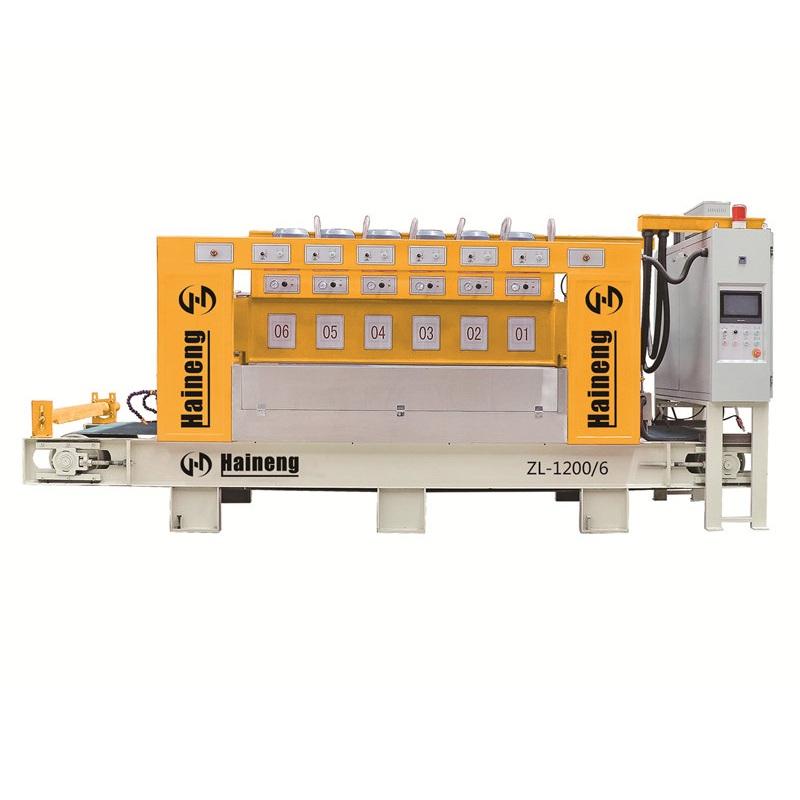

Automatic Stone Bush Hammering Machine

The Automatic Stone Bush Hammering Machine is a must - have for stone surface processing. It operates like a Stone Continuous Bush Hammer Machine, with features of a Bush Hammer Grinder and Stone Grinding Machine. It automates litchi - like surface creation, boosts efficiency, ensures quality, suits various stones, and cuts costs.

  • Brand:

    HAINENG
  • Item NO.:

    ZL-1200/6,ZL-1200/8
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    Yellow & gray
  • Shipping Port:

    Xiamen port
  • Lead Time:

    15 days
Product Detail

Product Introduction

In the stone - processing industry, the Automatic Stone Bush Hammering Machine has emerged as a game - changing solution. This machine, along with related concepts like the Stone Continuous Bush Hammer Machine, Bush Hammer Grinder, and Stone Grinding Machine, addresses numerous pain points faced by professionals.

Common Pain Points in Stone Surface Processing

Manual Labor Inefficiency

Traditional manual methods for creating a stone's "litchi - like" surface are incredibly time - consuming. Workers have to painstakingly use pneumatic hammers or manual tools, which not only require a large workforce but also result in low production volumes. It's a slow - paced process that can't keep up with the demands of modern projects.

Inconsistent Surface Quality

Hand crafted litchi like surfaces often have problems with textures that're not the same everywhere. When people do manual hammering on these surfaces they can make bumps and dips that're not even. It is easy to damage or break the stone when you do this. The stone does not look the same everywhere. This can be a big problem especially when you are working on big architectural projects or making decorative things that need to look really good. The litchi like surfaces are used for these projects. The litchi, like surfaces have these problems with textures.

High Costs and Limited Applicability

Traditional methods are not only labor - intensive but also consume a lot of energy. The high risk of stone breakage means wasted materials, adding to the overall cost. Moreover, these methods have limitations in handling different stone thicknesses and sizes, restricting their use in various projects.


Stone Grinder Machine


Technical Parameters

Automatic Stone Bush Hammering Machine

Type

Unit

ZL-1200/6

ZL-1200/8

Point number

pcs

6

8

Main motor power

kw

5.5

5.5

Total power

kw

36

47

Mill diameter

mm

200

200

Grinding plate width

mm

1200

1200

Grinding plate thickness

mm

10-100

10-100

Beam swing speed

m/min

3-35

3-35

Into the plate velocity

m/min

1-4

1-4

Cooling water pressure

mpa

0.1-0.5

0.1-0.5

Water consumption

m³/h

6

8

Gas supply pressure

mpa

0.8

0.8

Overall dimensions
(L×W×H)

mm

4500×2702300

5200×2700×2300

Machine weight

kg

4000

5500

Automatic Stone Bush Hammering Machine

How the Automatic Stone Bush Hammering Machine Overcomes These

Unmatched Efficiency

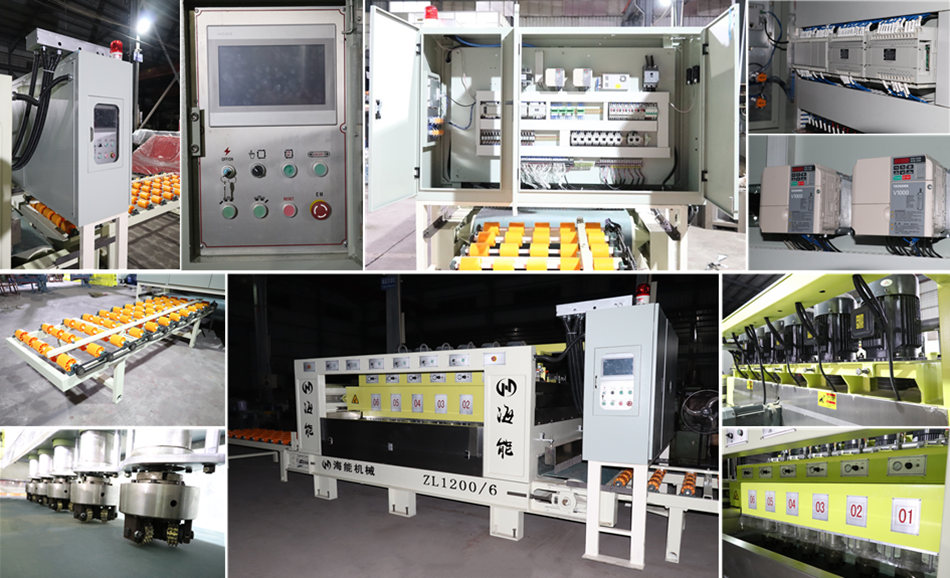

Our Automatic Stone Bush Hammering Machine is a paragon of efficiency. With PLC control, a continuously running conveyor beltit operates with minimal human intervention. This automation allows for a high - volume output, with a daily processing capacity of hundreds of square meters, all while requiring only 1 - 2 operators. It's like having a well - oiled production line dedicated to your stone - processing needs.

Superior Surface Quality

The machine ensures a consistently high - quality finish. The processed litchi - like surface has uniform textures and even bumps, free from the unevenness and damage often seen in manual processing. Its well - designed structure and stable operation guarantee a smooth and professional - looking result, making it perfect for high - end applications.

Cost - Effective and Versatile

By using mechanical processing, the machine exerts a more gentle impact on the stone, significantly reducing the breakage rate. This not only saves materials but also cuts down on labor and energy costs. Additionally, it can handle a wide range of stone thicknesses (from as thin as 3mm) and widths (up to 3300mm), making it suitable for diverse projects.

In conclusion, the Automatic Stone Bush Hammering Machine, in synergy with the Stone Continuous Bush Hammer Machine, Bush Hammer Grinder, and Stone Grinding Machine, offers a comprehensive solution. Its advanced features make it an essential asset for modern stone - processing operations, revolutionizing the way we create litchi - like stone surfaces.

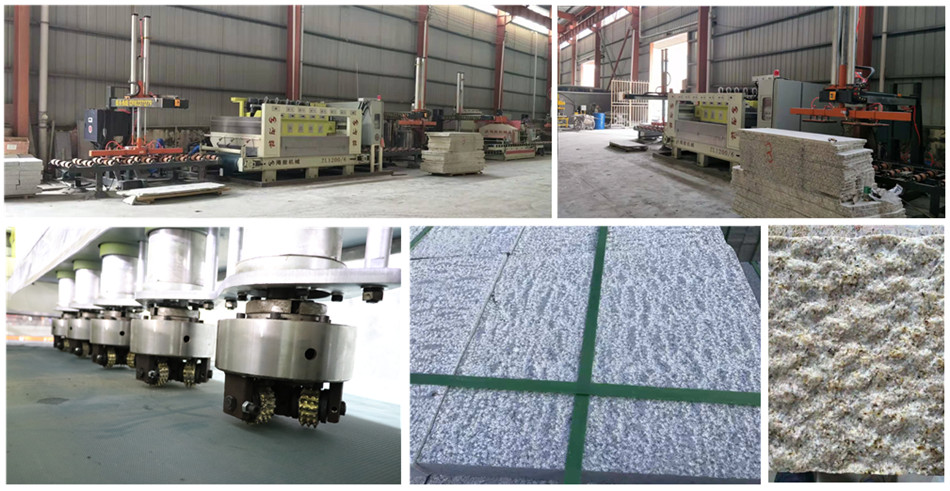

Processing

Automatic Stone Bush Hammering Machine
