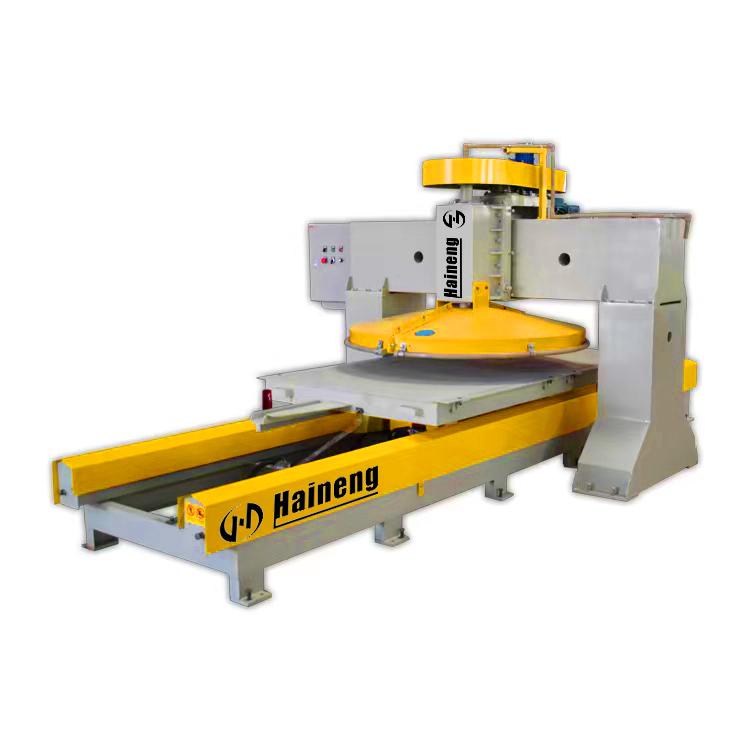

ANY-1200 Single-Head Stone Calibrating Polishing Machine

This stone calibration polishing machine used for granite, marble, terrazzo tile and so onslab calibration.
  • Brand:

    HAINENG
  • Item NO.:

    DDH-50
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    Yellow
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    15 Days
Product Detail

Product Description

This Stone Calibrating Machine is united by bridge style, the blade are jointed to the blade holder by screws, it can process difference stone material. Its flexible for the blade holder to lift or descend, and with the accessory precision dial and the bolt, the blade holder can be fitted perfectly and firmly. The acceleration speed is controlled by step-less transducers. The operating is simple; the running is stable and the processing is highly accurate.


Technical Parameters


Machine dimension

2800x5700x2000mm

Water put

100L/min

Working table outlook dia.

2400x1220mm

Weight

3500kg

Machine setting area

40m²

Calibration plate size

Ø1200

Power full

380V 50HZ

Max production dia.

2500×1250mm

Total power

24.8kw

Cutting thickness

10-50mm

Main motor power

22kw

Working speed

0-150mm/min

Table motor power

1.5kw

Rise/down power

0.55kw

left/right power

0.75kw

Machine lubricating oil

CD40
