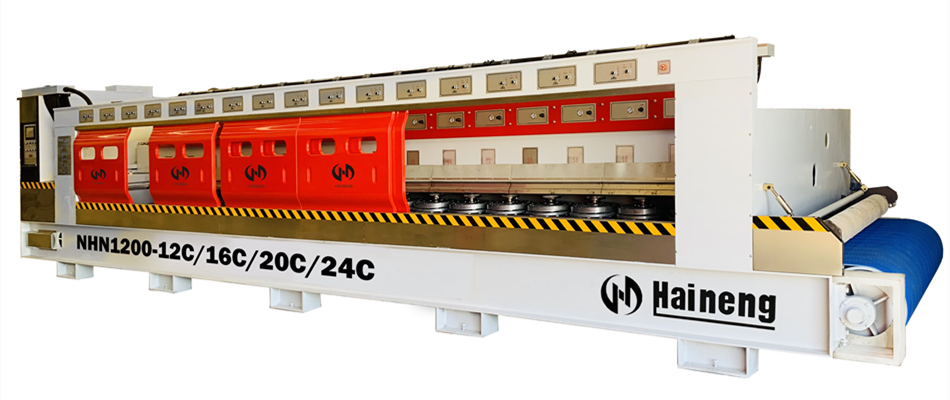

Automatic Polishing Machine For Granite

On the basis of absorbing the advantages of the same products in China, the machine is self-developed and manufactured with domestic advanced level of stone polishing products. The appearance of the whole machine is beautiful and generous, and its polishing performance is at the leading level among the same products at home and abroad. The material selection is excellent, the structure is reasonable, the processing technology is perfect, the whole machine has strong rigidity and stable performance.

  • Item NO.:

    SMT-16C/20C/24C
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    china
  • Color:

    Customizable
  • Shipping Port:

    xiamen port
  • Lead Time:

    25 days
Product Detail

Product Introduction

1. Our company adoptsItalian advanced design and electric control system, combined with domestic and foreign markets, developed for granite slab automatic continuous polishing machine, using ordinary resin abrasive disk or triangle plastic.

2.  The machine with moden design, generous appearance , stable performance , advanced operation control system , low failure rate , high efficiency and low consumption . Suitable for continuous polishing granite slab.

3. A complete set of equipment’ s raw materials with high quality cast steel, Electrical components, motor and speed reducer adopts Japan , Germany brands or domestic well - known brands.

4. The whole equipment is equipped with automatic flap frame , automatic slab device , blow dry device and the transition frame. PLC control system , LCD touch screen terminal for man - machine interface to set parameters , equipment operation process with troubleshooting tips and automatic lubricating remindersystem

5. Slab conveyor belt , work speed of the transverse beam is controled by frequency converter; polishing heads’ work pressure, the grinding width of slab is adjustable within the set point. Automatic identification of slab shape , polishing heads lifting automatically according to the slab shape . The spindle system adopts advanced sliding sleeve lifting structure . performance reached the domestic leading level .

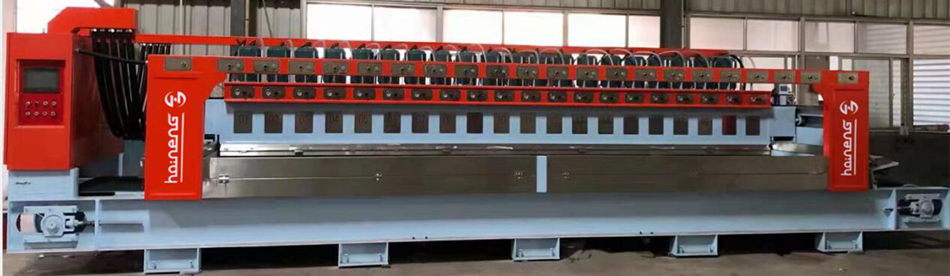

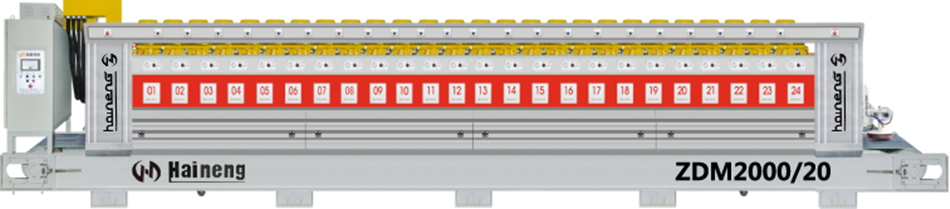

Automatic Polishing Machine For Granite

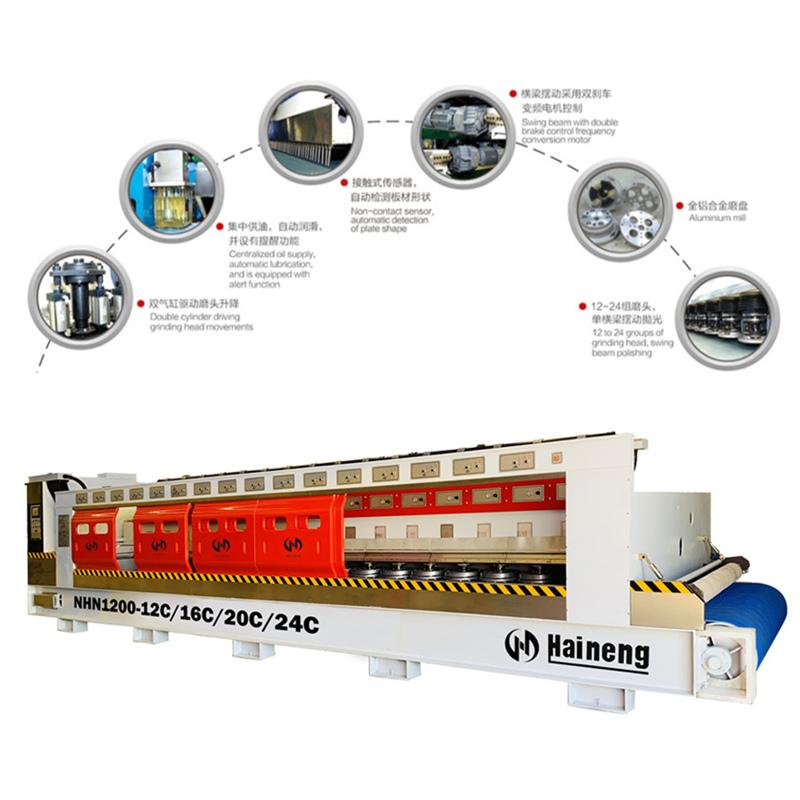

Double cylinder driving grinding head movements


Swing beam with double brake control frequency conversion motor


Centralized oil supply, automatic lubrication, and is equipped with alert function


Aluminium mill


Non-contact sensor, automatic detection of plate shape

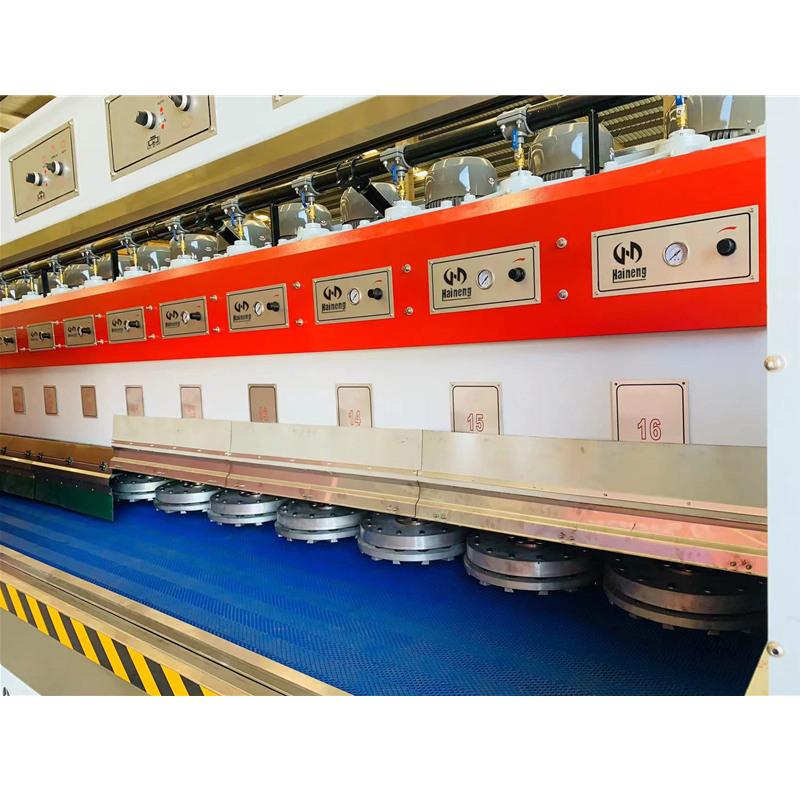

12 to 24 groups of grinding head, swing beam polishing

Automatic Polishing Machine For Granite

Machine details(shipped with the machine):

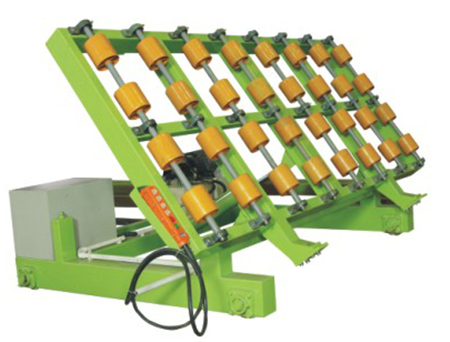

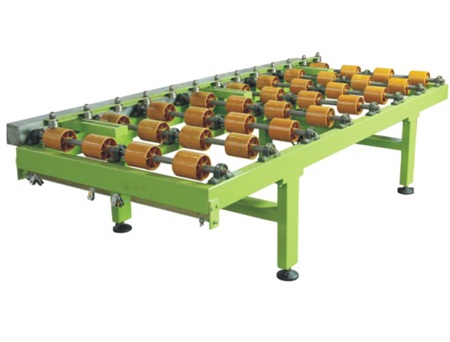

Transmission Table

Unloading Table

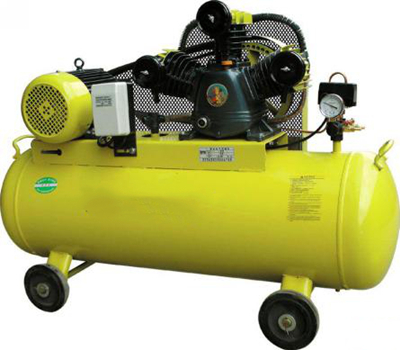

 Air Compressor

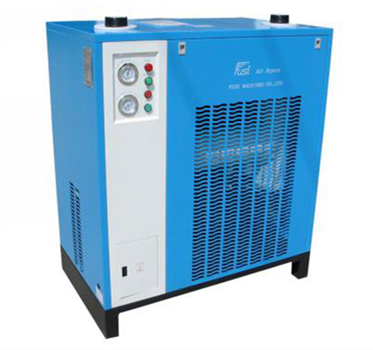

Air Dryer

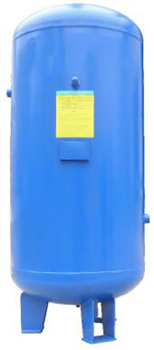

Air Tank


Technical Parameters

Type

unit

SMT-16C

SMT-20C

SMT-24C

Quantity of polishing machine

pcs

16

20

24

Useful working width

mm

400-1300

400-1300

400-1300

Useful working thickness

mm

10-50

10-50

10-50

Transfer speed

mm/min

0-4000

0-4000

0-4000

Water consumption

m³/h

21

23

25

Motor power of grinding head

kw

7.5×12+9×4

7.5×16+9×4

7.5×20+9×4

Total power

kw

138

168

198

Overall dimension

(L×W×H)

mm

9200×2150×2200

10200×2150×2200

11400×2150×2200

Gross weight

kg

19000

21000

22500

Processing

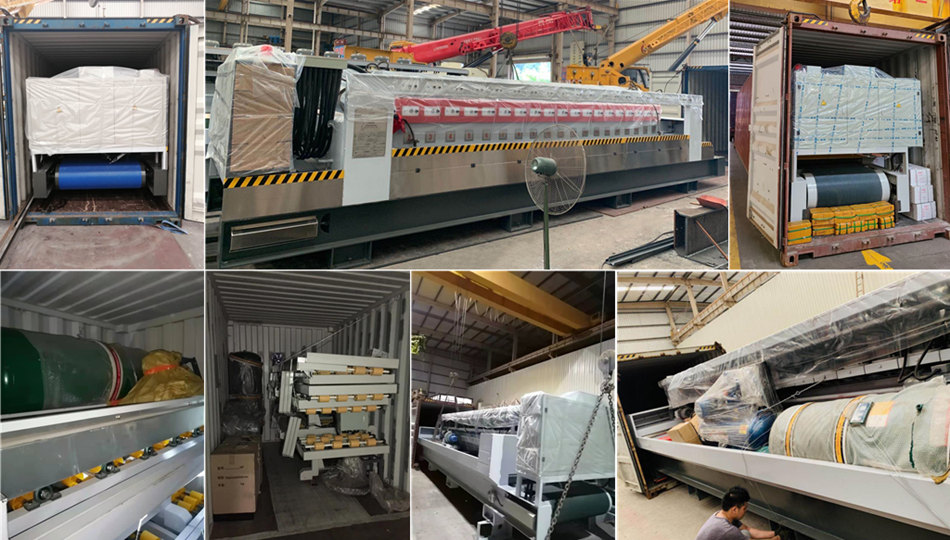

Loading Container

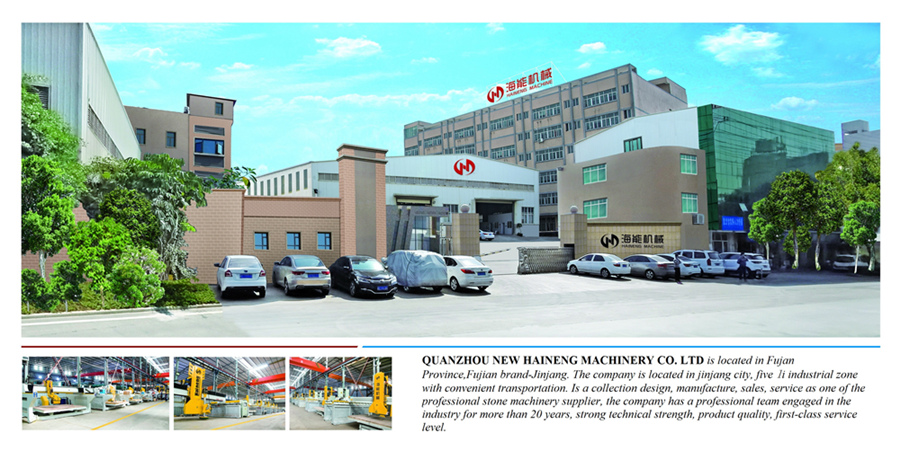

Company Information
