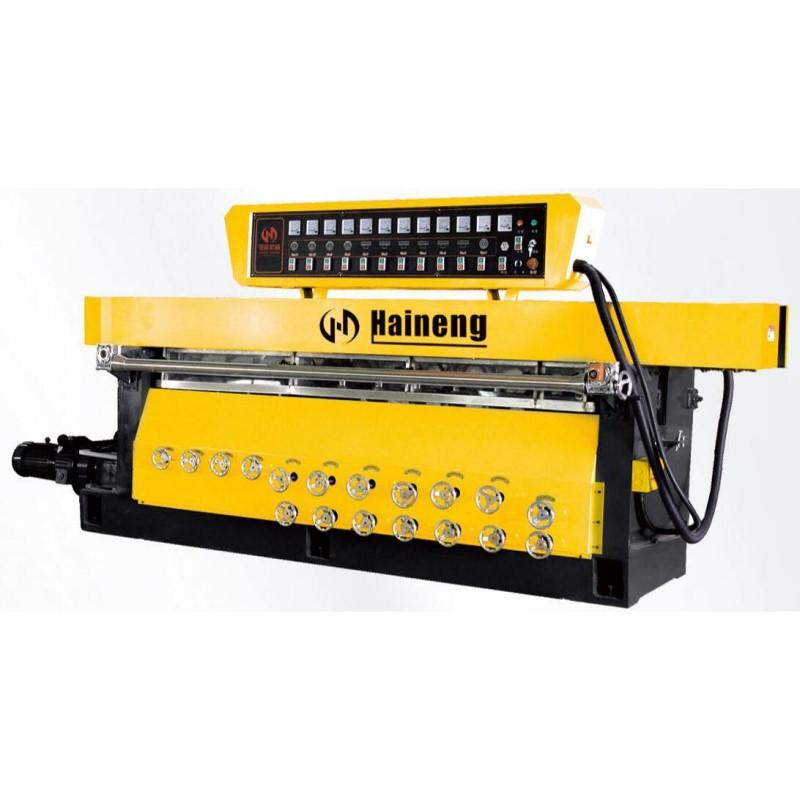

Vertical Type Bevel and Straight Side Stone Polishing Machine

The machine is consists of two parts, profiling part and polishing part, which have the reasonal structure, stable operation. It can process marble, artificial stone, granite etc.
  • Brand:

    HAINENG
  • Item NO.:

    DZP-9/11
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    Yellow
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    15 Days
Product Detail

Vertical Type Bevel and Straight Side Stone Polishing Machine

Product Induction:

This machine is used to polish the straight edge and 45 ° bevel, slot and polish inside a slot of stones. Skirting,planning thickness and polishing for various irregular shaped edge (such as rounded edge, French edge, ogee, etc,) are also within the working range of this machine.

The polishing wheel works in a way that interchanges snailed dish ( attached with fiber polishing disc with abnormality wheels(electroplate/sintering/ resin wheels), which is convenient for assembling/disassembling. Processed stones have high glossiness (lighter than the slab face)consistent angles and lines.

The machine has a low rate of malfunction, and the operating of the machine is easy to learn, All of these makes it a second to none type of machine for a stone deep processing factory.


Main technical parameter:

Type

 Unit

DZP-9

DZP-11

Working width

mm

100-2000

100-2000

No.of polishing wheel

pcs

9

11

Working speed

m/min

0.8-5

0.8-5

Gross power

kw

30.7

36.7

Gross weight

kg

3000

3500

Overall size (L*W*H)

mm

6500*1300*2000

7500*1300*2000



Remark



 5*Straight edge

 polishing;

4* Front bevel4.

All manual

6*Straight edge

 polishing;

4* Front bevel +1* Back bevel

All manual

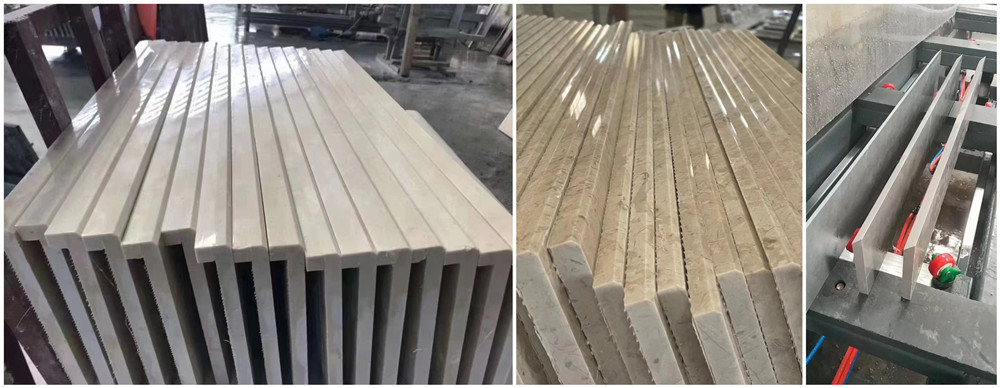

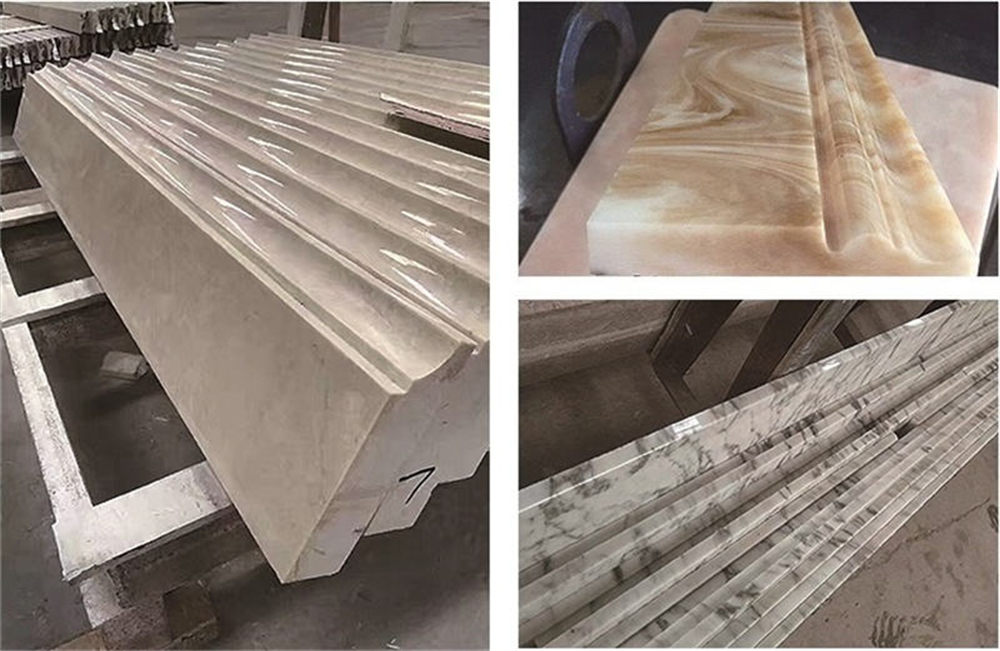

Processing

Granite Edge Polishing Machine

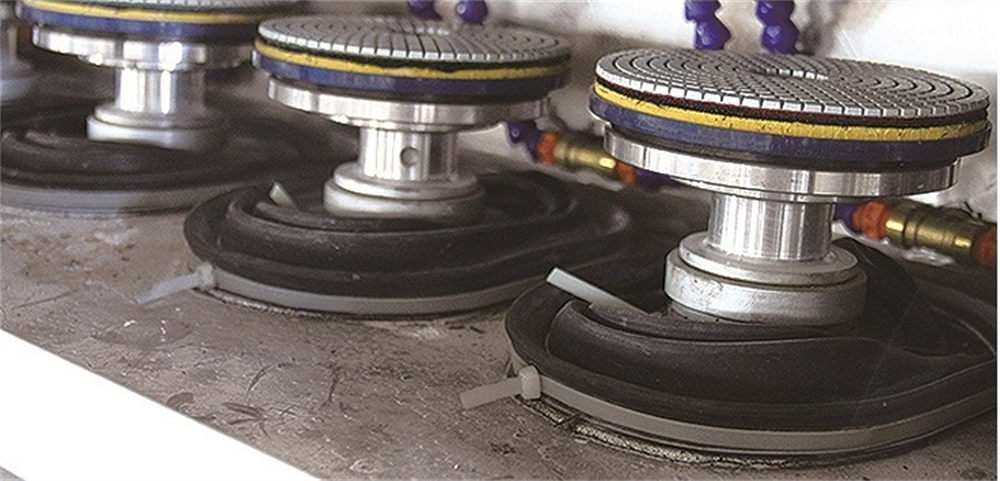

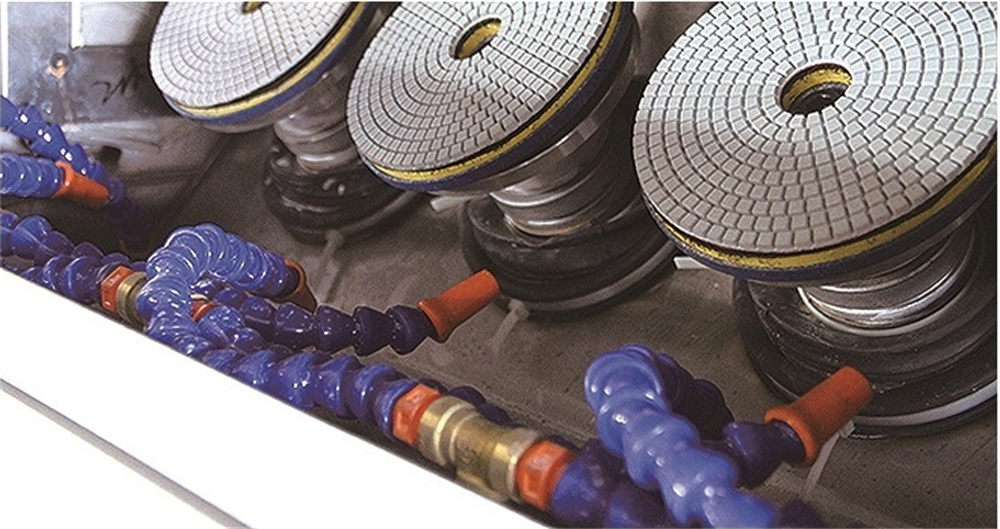

Machine details
