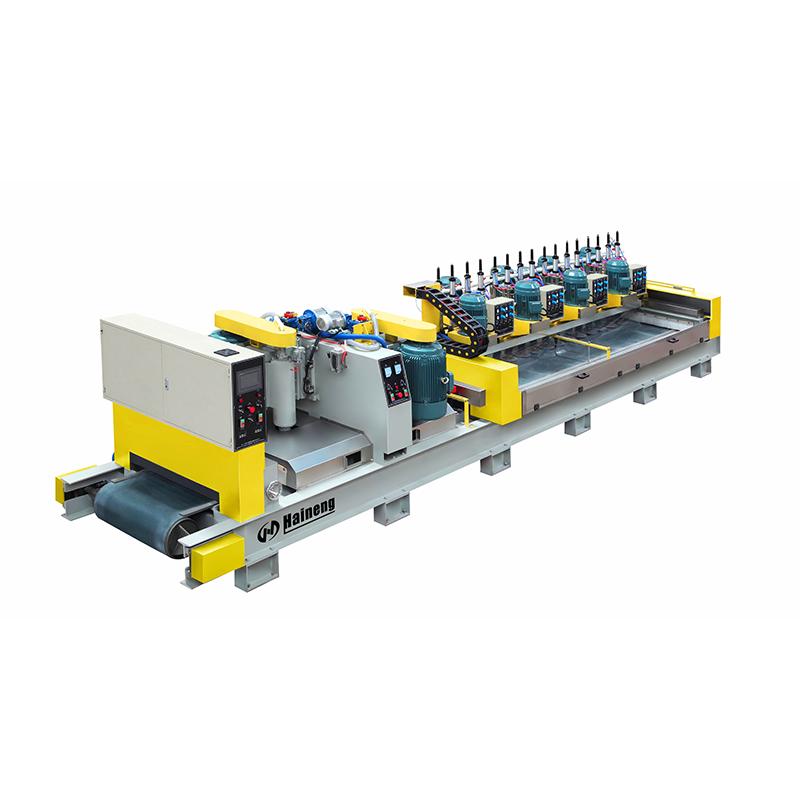

New Calibration Swing Polishing Machine

The main advantages of the calibration setting and polishing machine are that it occupies a small area, is easy to use, has multiple uses, and is flexible and changeable. It is suitable for customers who are just starting a business or do not have enough space.

Brand:
HAINENG
Item NO.:
BDP600-2C-16 /BDP600-2C-20 /BDP800-2C-16 /BDP800-2C-20 /BDP1000-2C-16 /BDP1000-2C-20
Order(MOQ):
1
Payment:
T/T
Product Origin:
China
Color:
Yellow
Shipping Port:
Xiamen Port
Lead Time：
15 Days

Automatic Stone Bush Hammering Machine

The Automatic Stone Bush Hammering Machine is a must - have for stone surface processing. It operates like a Stone Continuous Bush Hammer Machine, with features of a Bush Hammer Grinder and Stone Grinding Machine. It automates litchi - like surface creation, boosts efficiency, ensures quality, suits various stones, and cuts costs.

Manual Stone Polishing Machine

Hand stone polishing machine adopts a cylinder as the lifting guide and sliding surface, and the automatic lifting is stable. The main engine has two types of single and double speeds. It is used for surface grinding and polishing of stone slabs, tombstones, parquet stones, etc. whose thickness changes frequently. It can be equipped with a workbench to grind the inner and outer arc craft stone.

Automatic Polishing Machine For Granite

Our Automatic Granite Polishing Machine is a top - tier slab polishing equipment. Engineered for granite slabs, it combines international design and control systems, offering high - efficiency, low - consumption operation. With features like an automatic flap frame and PLC - controlled interface, it's user - friendly, reliable, and a leading choice among granite polishing machines in the industry.

Automatic Stone Line Polishing Machine

Discover the Automatic Marble Polishing Machine, a top - tier choice in the stone processing industry. This machine, suitable for both Stone Slab Polishing Machine and Marble Slab Polishing Machine operations, offers high - precision polishing, adaptability to various stones, and boosts efficiency.

Single Head Granite Marble Polishing Machine

Granite Marble Polishing Machine is widely used for surface grinding & polishing.

Bridge Type Multi-Head Granite Stone Polishing Machine

Bridge Multi-Head Polishing Machine is improved the technology on the basis of hand polishing machines advantages.

Automatic Granite Polishing Machine

An automatic granite polishing machine is a machine used to polish and finish granite surfaces automatically. It uses specialized tools and techniques to remove the imperfections and scratches on the surface of granite.

Vertical Type Bevel and Straight Side Stone Polishing Machine

The machine is consists of two parts, profiling part and polishing part, which have the reasonal structure, stable operation. It can process marble, artificial stone, granite etc.

Type	Unit	BDP600-2C-16	BDP600-2C-20	BDP800-2C-16	BDP800-2C-20	BDP1000-2C-16	BDP1000-2C-20
Calibration Head	piece	2	2	2	2	2	2
Calibration width	mm	600	600	800	800	1000	1000
Polishing Heads	piece	16	20	16	20	16	20
Belt width	mm	650	650	850	850	1050	1050
Calibration Dish Diameter	mm	650	650	850	850	1050	1050
Polishing Abrasive Diameter	mm	150	150	150	150	150	150
Max.polishing Size	mm	600	600	800	800	1000	1000
Max.polishing thickness	mm	50	50	50	50	50	50
Polishing Speed Range	M/min	1-3	1-3	1-3	1-3	1-3	1-3
Grinding Head Motor Power	kw	4kw×8	4kw×10	4kw×8	4kw×10	4kw×8	4kw×10
Calibration Motor Power	kw	15kw×2	15kw×2	18.5kw×2	18.5kw×2	18.5kw×2	18.5kw×2
Swing Motor Power	kw	1.1	1.1	1.1	1.1	1.1	1.1
Belt Motor Power	kw	3	3	3	3	3	3
Total power	kw	67.2	75.2	74.2	82.2	74.2	82.2
Total Weight(About)	kg	6300	7000	7200	8000	8000	8800
Dimension size	m	6.8×2.1×2.2	7×2.1×2.2	7.4×2.2×2.2	8.5×2.2×2.2	7.6×2.3×2.2	8.7×2.3×2.2
