Product Introduction:

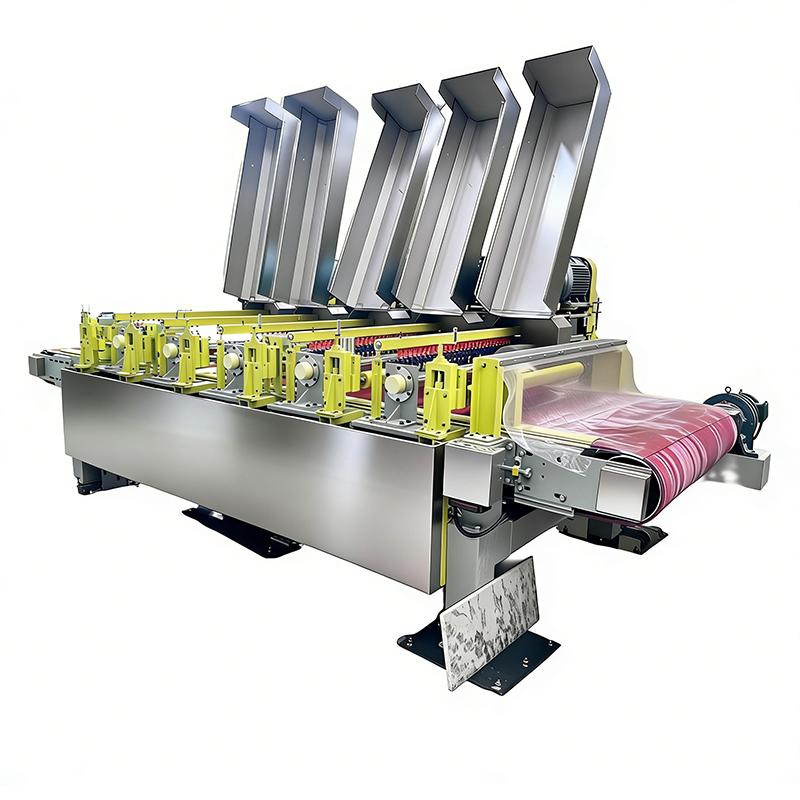

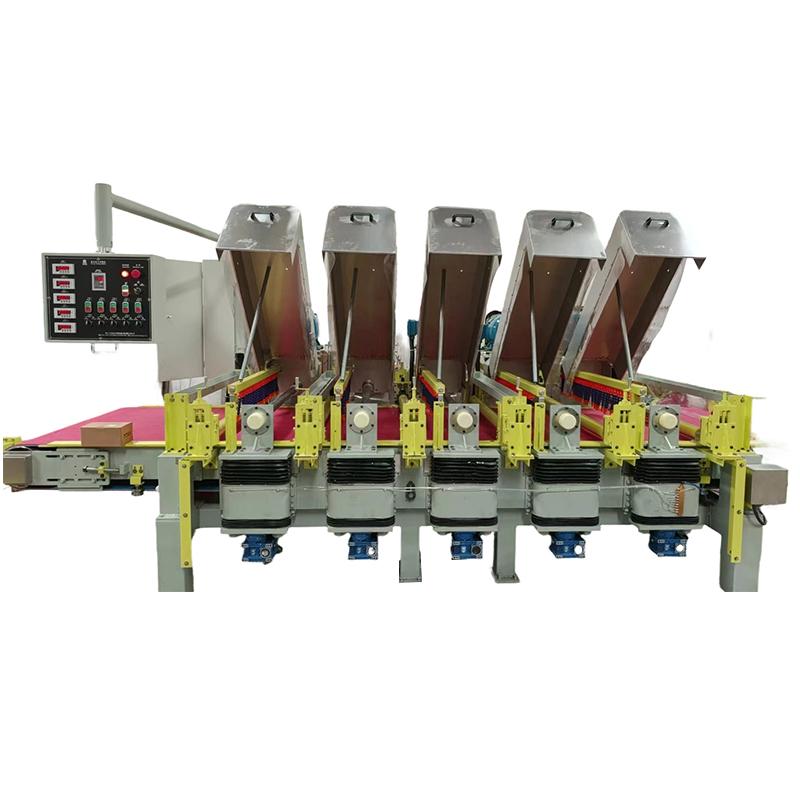

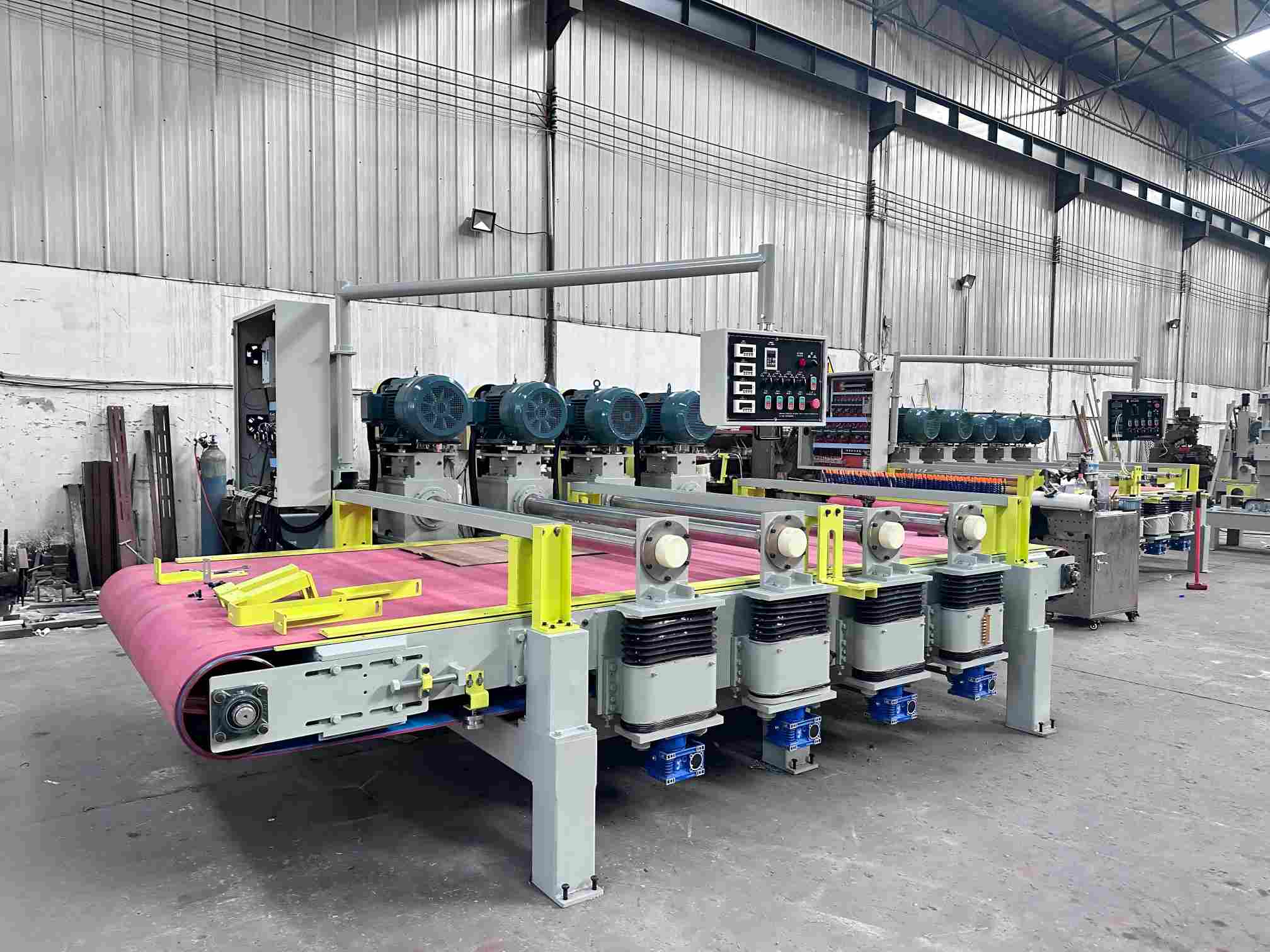

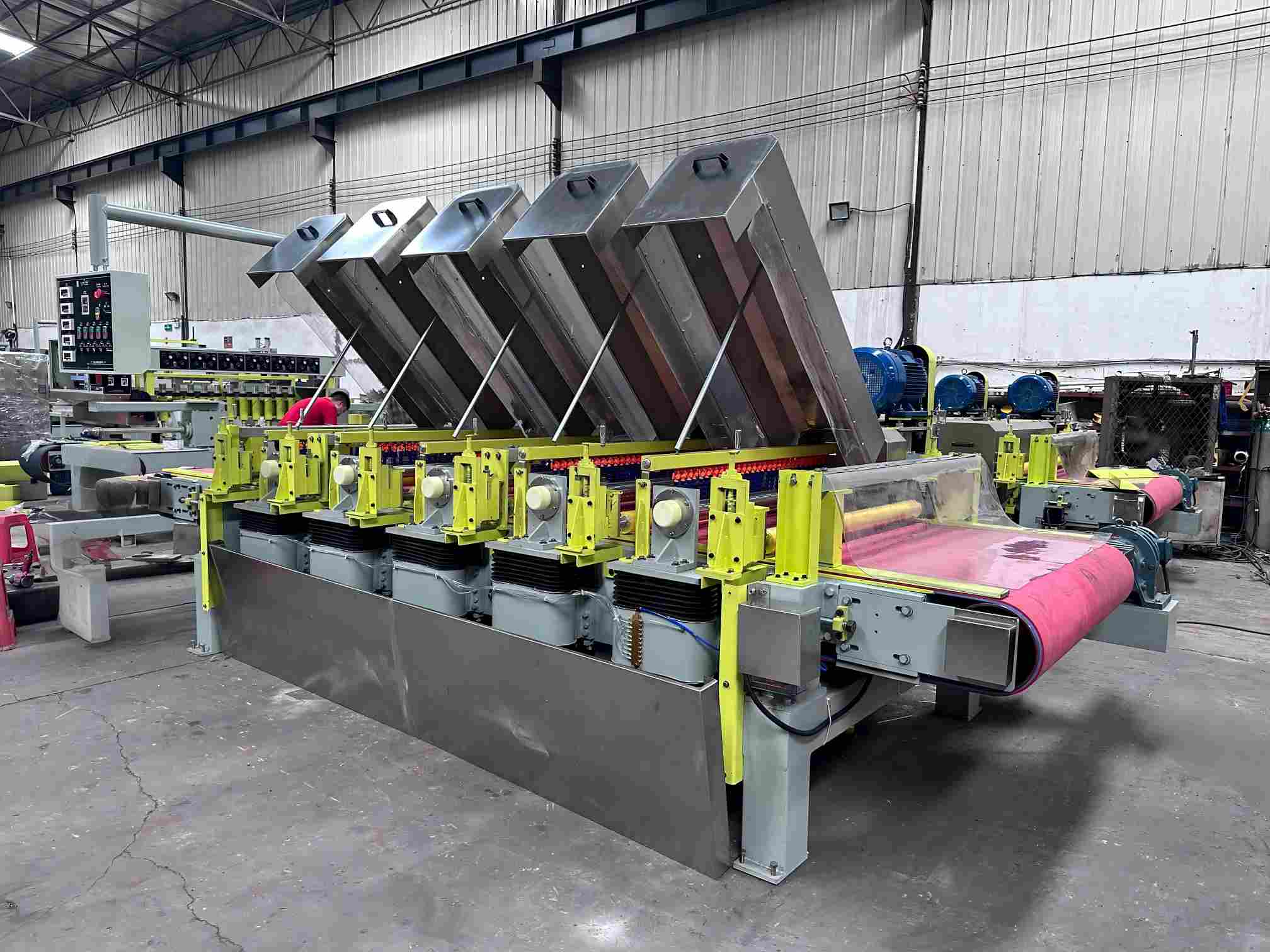

The stone wave-pattern polishing machine is a fully automatic machine designed specifically for the mass production of stone wave-pattern slabs. Slab Grinding Machine combines shaping and polishing functions and is suitable for slabs such as marble, granite and engineered stone.Supports flexible processing of widths ranging from 600 to 1300 mm, with customisation available up to a maximum of 1800 mm, meeting the diverse requirements of stone processing companies for finishes ranging from matt to high-gloss.

Product Advantages:

Synchronised gantry lifting, stable structure

Featuring a synchronised gantry lifting design, the machine boasts a robust structure and even load distribution, ensuring stone wave-pattern polishing machine remains distortion-free even during prolonged heavy-duty machining.

Simple operation, quick to master

With its user-friendly design and convenient setup, even ordinary technicians can operate it proficiently.

Customised to Your Needs

Functions and specifications can be tailored to meet specific customer requirements, making tile groove cutting machine suitable for a wide range of applications, such as marble mouldings and wave panels, decorative stone wall panels, various textured and artistic stone surfaces, as well as stone cutting and profiling.

Main technical parameter:

Model	800/1000/1300-3	800/1000/1300-4	800/1000/1300-5
Max process width	800/1000/1250mm	800/1000/1250mm	800/1000/1250mm
Max process thickness	80mm	80mm	80mm
Belt width	850/1050/1350mm	850/1050/1350mm	850/1050/1350mm
Number of spindle	3 heads	4 heads	5 heads
Spindle motor power	22kw*2 15kw*1	22kw*2 15kw*2	22kw*2 15kw*3
Spindle diamter	60mm	60mm	60mm
wheel(blade)diameter	150-200mm	150-200mm	150-200mm
Total power	63.45kw	79.2KW	94.95KW
Machine size(about)	3.6*1.9/2.1/2.3*2.3m	4.5*1.9/2.1/2.3*2.3m	5.2*1.9/2.1/2.3*2.3m

Company Strength

Our factory boasts advanced production technology, strictly controlling every link from the manufacturing of components to the assembly of the complete machine. High - precision processing equipment is used to ensure the accuracy and quality of each component, laying the foundation for the high - performance of the equipment.

We implement a strict quality inspection system. Each piece of equipment undergoes multiple inspection procedures before leaving the factory. From the inspection of raw materials, sampling inspection of components, to the performance test of the complete machine, we ensure that each product delivered to customers meets high - quality standards.

Choosing our multi - functional stone processing equipment means choosing the perfect combination of efficiency, precision, and quality. Whether it is tile slotting, stone profiling, or slab grinding and polishing, our equipment can bring you an excellent processing experience and help you stand out in the stone processing industry.
