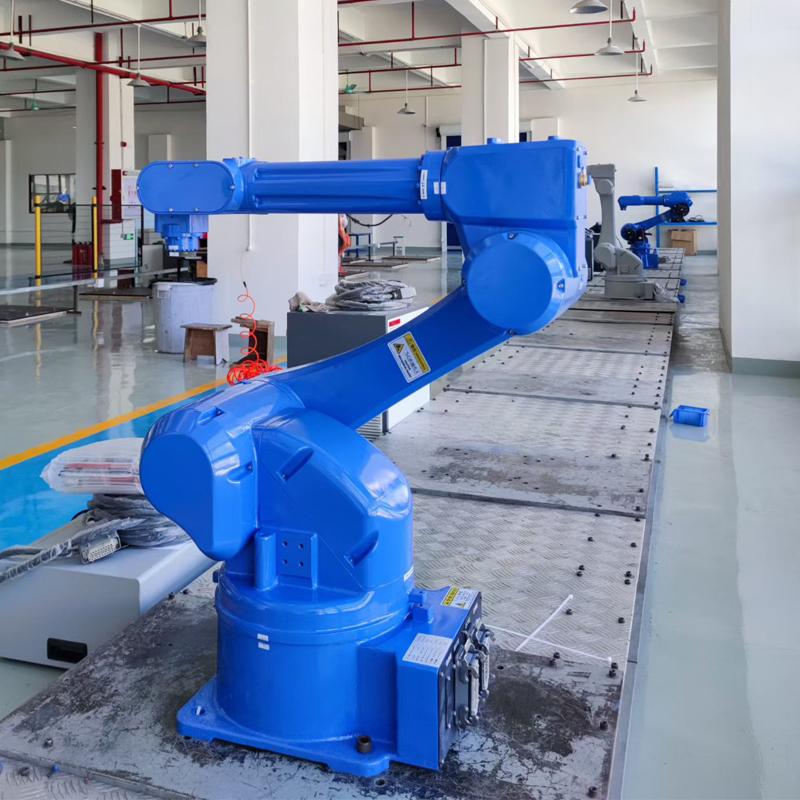

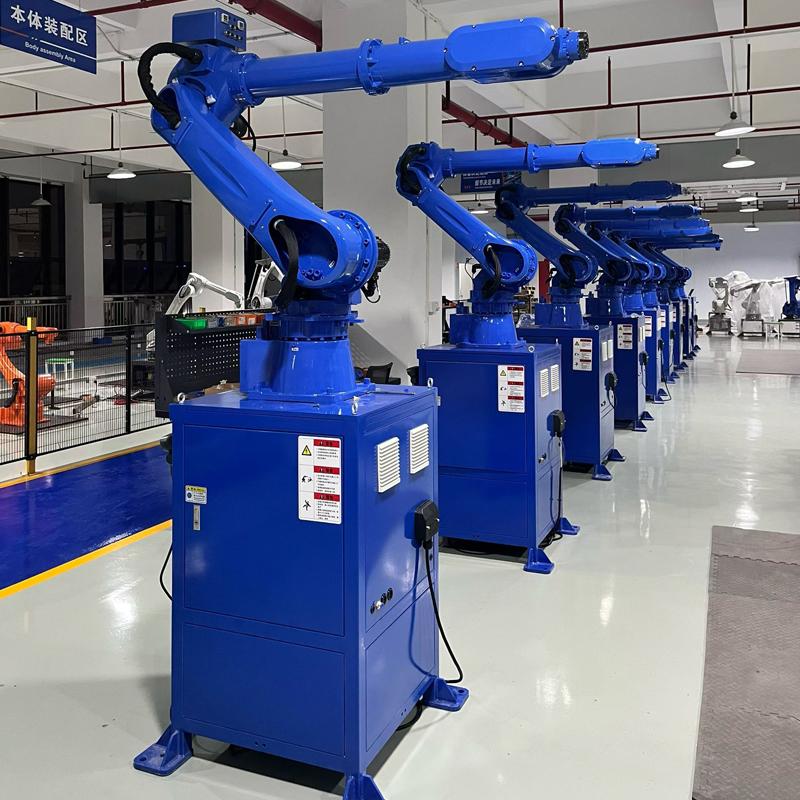

Six axis intelligent industrial robotic arm

The intelligent Six axis industrial robotic arm can achieve fully automatic grinding and polishing of stones.

Brand:
HAINENG
Item NO.:
CR30-1800
Payment:
T/T
Shipping Port:
Xiamen Port
Lead Time：
30 Days

Automatic Stone Bush Hammering Machine

This litchi surface machine can automatically identify the thickness of the stone slab, the processing process is safe, the processing effect is uniform, the slab is not easy to break, and it saves labor.

Manual Stone Polishing Machine

Hand stone polishing machine adopts a cylinder as the lifting guide and sliding surface, and the automatic lifting is stable. The main engine has two types of single and double speeds. It is used for surface grinding and polishing of stone slabs, tombstones, parquet stones, etc. whose thickness changes frequently. It can be equipped with a workbench to grind the inner and outer arc craft stone.

Automatic Polishing Machine For Granite

On the basis of absorbing the advantages of the same products in China, the machine is self-developed and manufactured with domestic advanced level of stone polishing products. The appearance of the whole machine is beautiful and generous, and its polishing performance is at the leading level among the same products at home and abroad. The material selection is excellent, the structure is reasonable, the processing technology is perfect, the whole machine has strong rigidity and stable performance.

Automatic Stone Line Polishing Machine

This marble polishing machine is for polishing marble slabs surface..Automatic Polishing Machine adopts foreign advanced design and automatic controlling with the demand of domestic market .Using the most advanced high-quality construction, rational structure, high stability and efficiency, and energy saving operation.it has the advantage of stable performance , high output and low failure rate .

Single Head Granite Marble Polishing Machine

Granite Marble Polishing Machine is widely used for surface grinding & polishing.

Bridge Type Multi-Head Granite Stone Polishing Machine

Bridge Multi-Head Polishing Machine is improved the technology on the basis of hand polishing machines advantages.

Automatic Granite Polishing Machine

An automatic granite polishing machine is a machine used to polish and finish granite surfaces automatically. It uses specialized tools and techniques to remove the imperfections and scratches on the surface of granite.

Vertical Type Bevel and Straight Side Stone Polishing Machine

The machine is consists of two parts, profiling part and polishing part, which have the reasonal structure, stable operation. It can process marble, artificial stone, granite etc.

Robot model	CR10-2000	CR25-1800/CR30-1800	CR35-1900/CR45-1900	CR50-2100
Number of axis	6	6	6	6
Max reach	1984mm	1750mm	1850mm	2100mm
Max load	10KG	25/30KG	35/45KG	50KG
protection level	IP65	IP54/Ip67	IP54/Ip67	IP54/Ip67
Installation method	floor-standing/hanging	Ground installation	Ground installation	Ground installation
Rated power	4.45KW	6.7KW/6.9KW	7.5KW/8.1KW	9.2KW
input/output signal	18IN/18OUT 24VDC	18IN/18OUT 24VDC	18IN/18OUT 24VDC	18IN/18OUT 24VDC
Rated voltage	AC220V	AC220V	AC220V	AC220V
Robot weight（about）	157KG	250KG	294KG	300KG
Repeatability	+0.05(MM)	+0.08(MM)	+0.08(MM)	+0.08(MM)
Max. motion range Axis1	+170°	+165°	+165°	+165°
Axis 2	+75-110°	+65°~-120°	+75°~-110°	+75°~-110°
Axis 3	+110°~-75°	+110°~-75°	+110°~-75°	+110°~-75°
Axis 4	+180°	±180°	±180°	±180°
Axis 5	+30°~-200°	+30°~-200°	+30°~-200°	+30°~-200°
Axis 6	+360°	+360°	+360°	+360°
Max. Speed Axis 1	148°/S(HS297°/S)	128°/S	162°/S	162°/S
Axis 2	148°/S(HS297°/S)	110°/S	110°/S	110°/S
Axis 3	297°/S	148°/S	148°/S	148°/S
Axis 4	450°/S	450°/S	450°/S	450°/S
Axis 5	225°/S	360°/5	360°/5	360°/5
Axis 6	450°/S	450°/S	450°/S	450°/S
